oF608-ScC12O6 (Inverse)

oF608–ScC12O6 (Inverse)

../_images/structure344.jpg

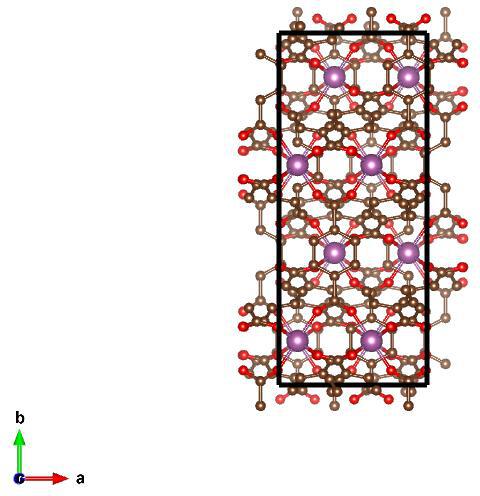

Image of oF608–ScC12O6 (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 0.2458399537~\hat{x} - 0.9693104339~\hat{y}\\ a_2 &= 0.2458399537~\hat{x} + 0.9693104339~\hat{y}\\ a_3 &= 1.1690400298~\hat{z}\\\end{split}\]

Space Group: 70

Point Group of Structure: \(mmm\)

Structure DOI: https://doi.org/10.1021/ic201387d

Source: Crystallographic Open Database #4326808

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

../_images/gap_atlas-16339.png

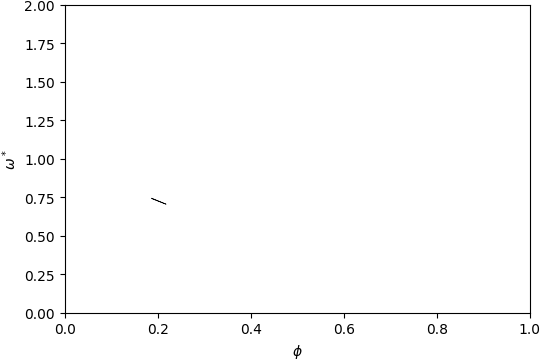

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

../_images/gap_atlas-14340.png

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of oF608–ScC12O6 (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.135\) and filling fraction \(\phi = 0.187\).

../_images/band_diagram_b=1249.jpg

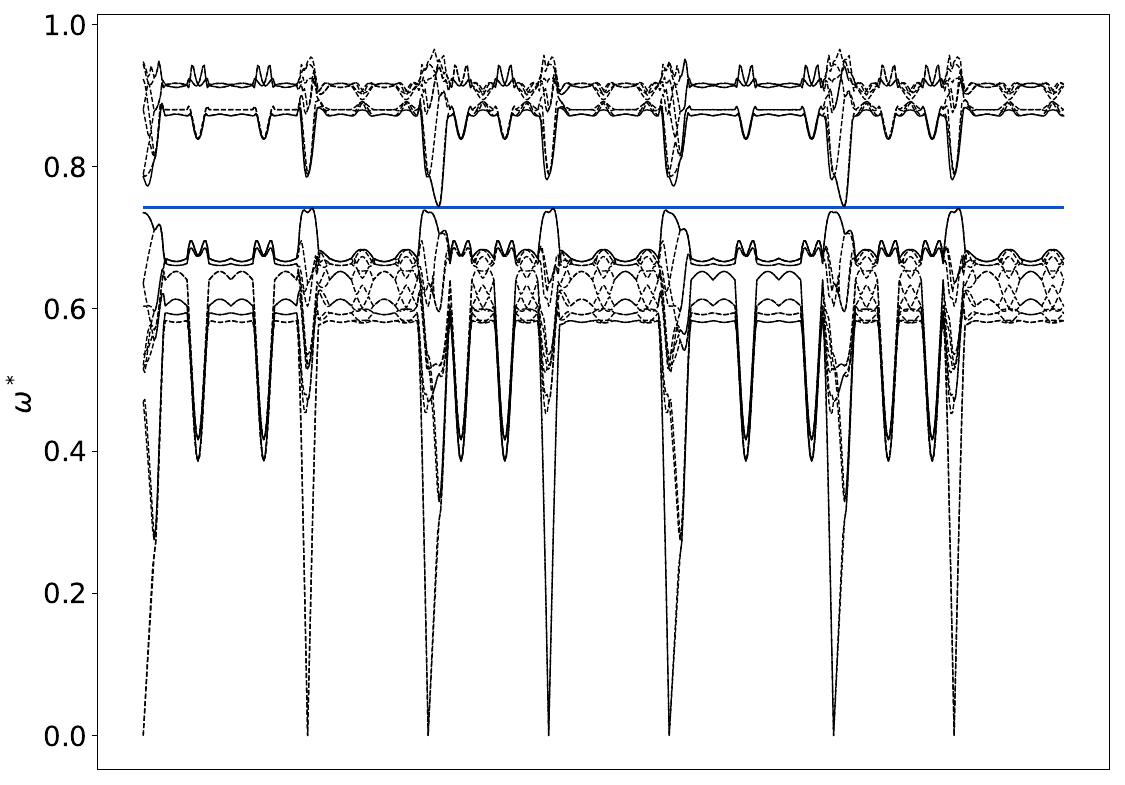

Band Structure across first Brillouin Zone.

../_images/oF608-ScC12O6_r@gap_12-13.png

View along \(a_1\).
