hR5-Ni3S2 (Inverse)

hR5–Ni₃S₂ (Inverse)

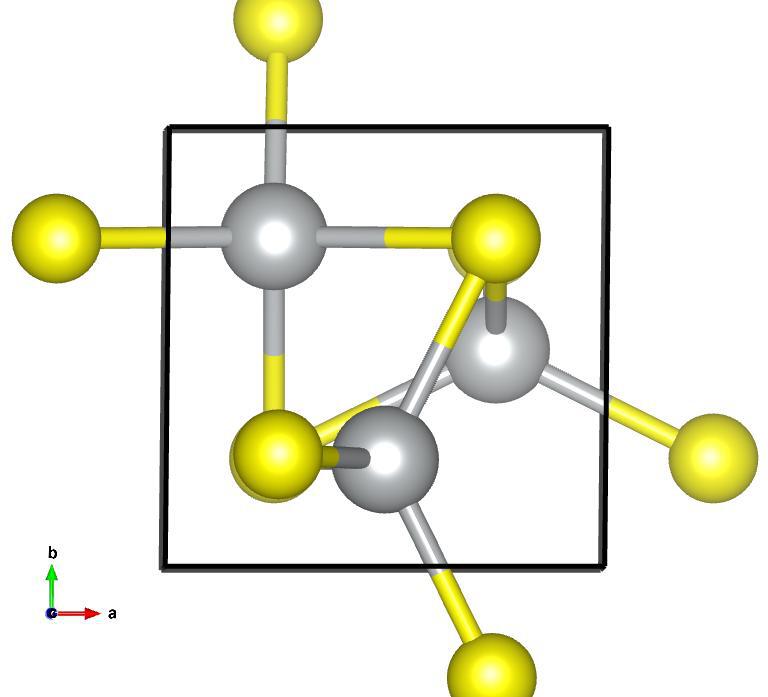

Image of hR5–Ni₃S₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.0094420973~\hat{x} + 0.9999554224~\hat{y}\\ a_3 &= 0.0094420973~\hat{x} + 0.0093533611~\hat{y} + 0.9999116768~\hat{z}\\\end{split}\]

Space Group: 155

Point Group of Structure: \(32\)

Structure DOI: https://doi.org/10.1107/S0567740880005523

Photonics DOI: Gap(s) for space group 155 above band 2 theorized in: https://doi.org/10.1103/PhysRevLett.121.263903,

Gap(s) above band(s) 8 not previously studied

Source: Crystallographic Open Database #9007640

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

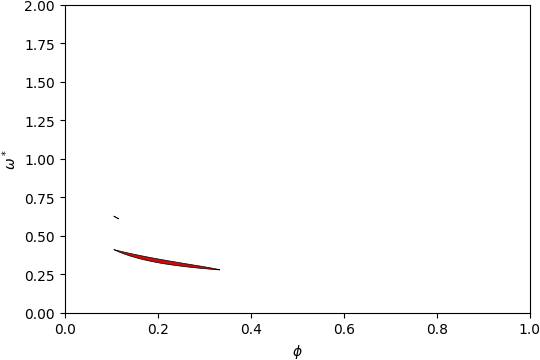

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

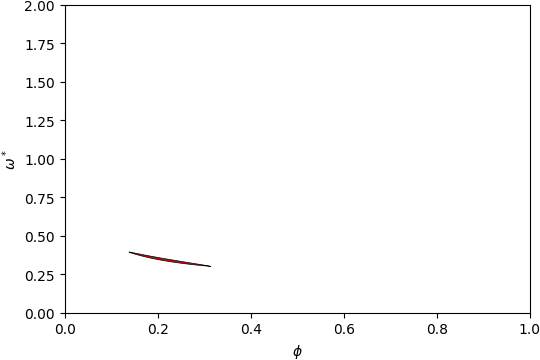

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

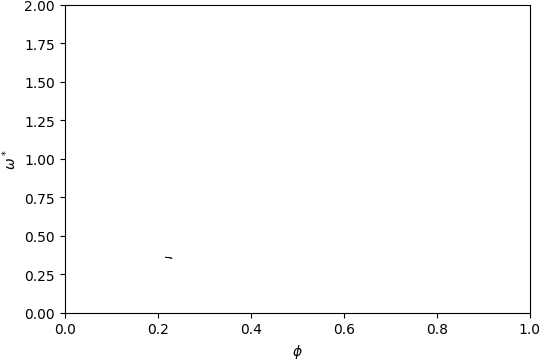

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 2-3

Below is the band structure and isosurface of hR5–Ni₃S₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.36\) and filling fraction \(\phi = 0.216\).

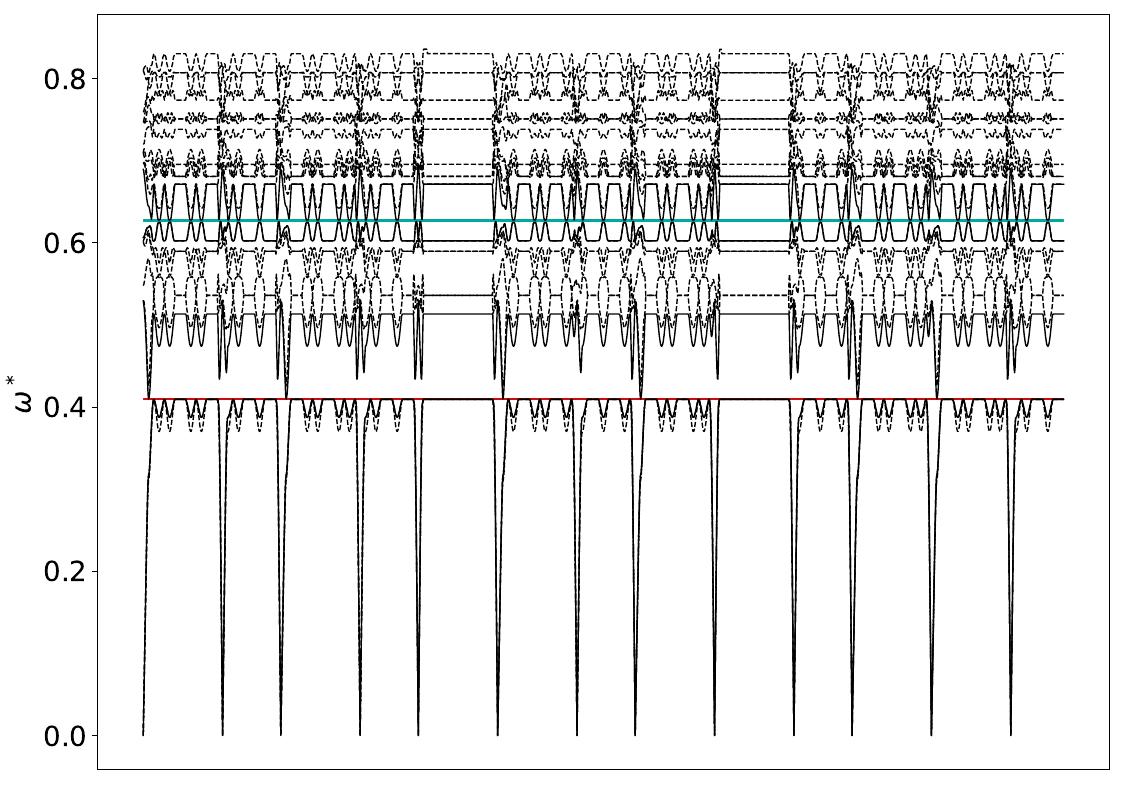

Band Structure across first Brillouin Zone.

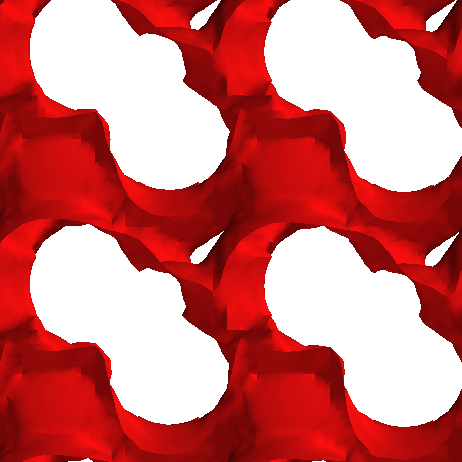

View along \(a_1\).

Gap between Bands 8-9

Below is the band structure and isosurface of hR5–Ni₃S₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.405\) and filling fraction \(\phi = 0.106\).

Band Structure across first Brillouin Zone.

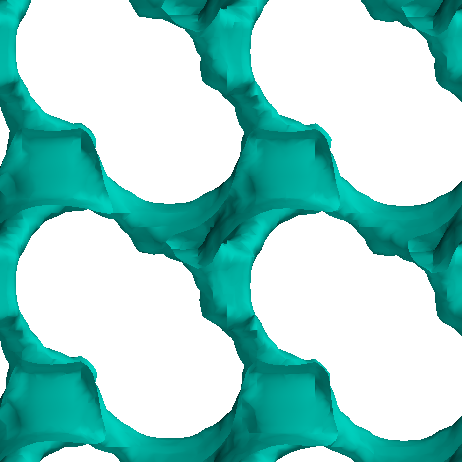

View along \(a_1\).
