hR1-Po (Inverse)

hR1–Po (Inverse)

../_images/structure326.jpg

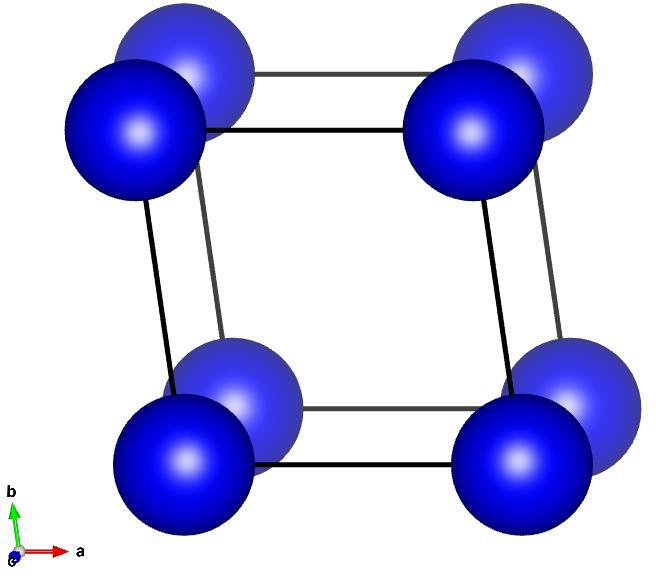

Image of hR1–Po (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= -0.1433198562~\hat{x} + 0.9896764213~\hat{y}\\ a_3 &= -0.1433198562~\hat{x} - 0.1655697092~\hat{y} + 0.9757284921~\hat{z}\\\end{split}\]

Space Group: 166

Point Group of Structure: \(\bar{3}m\)

Structure DOI: https://doi.org/10.1016/0022-1902(66)80270-1

Source: Inorganic Crystallographic Database #43212

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

../_images/gap_atlas-16322.png

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

../_images/gap_atlas-14322.png

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 3-4

Below is the band structure and isosurface of hR1–Po (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.62\) and filling fraction \(\phi = 0.129\).

../_images/band_diagram_b=31.jpg

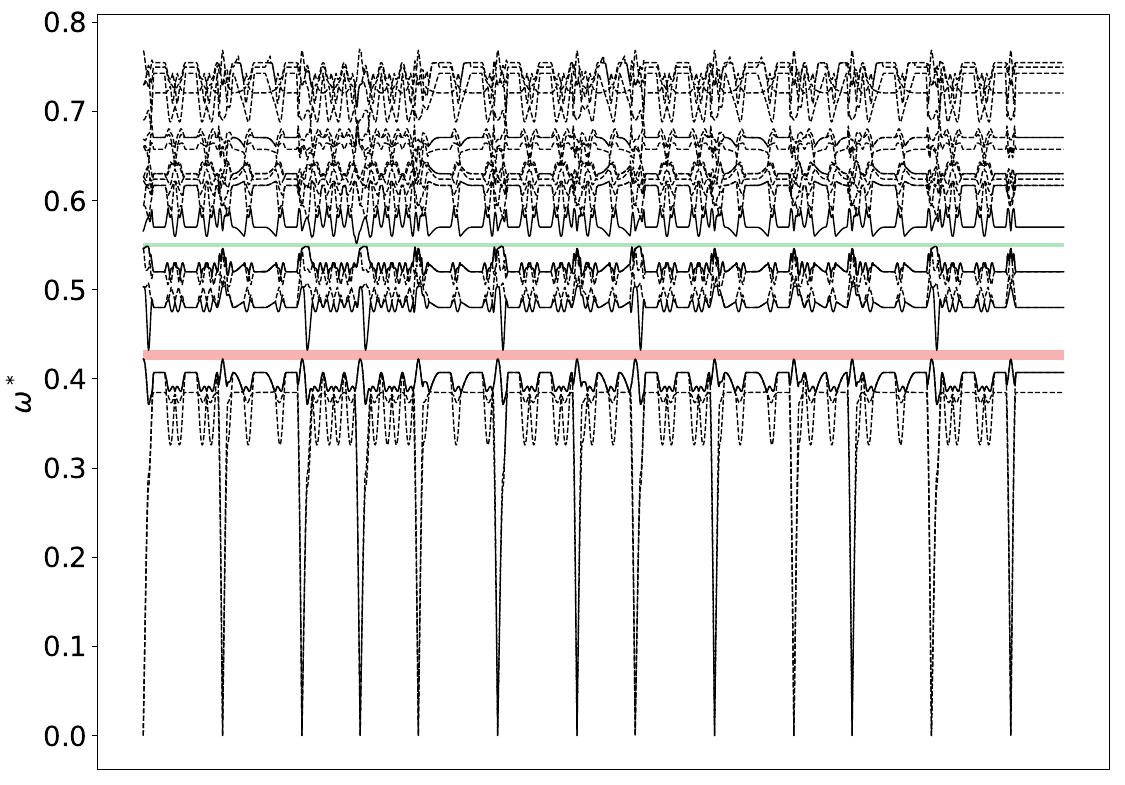

Band Structure across first Brillouin Zone.

../_images/hR1-Po_r@gap_3-4.png

View along \(a_1\).

Gap between Bands 7-8

Below is the band structure and isosurface of hR1–Po (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.6\) and filling fraction \(\phi = 0.174\).

../_images/band_diagram_b=73.jpg

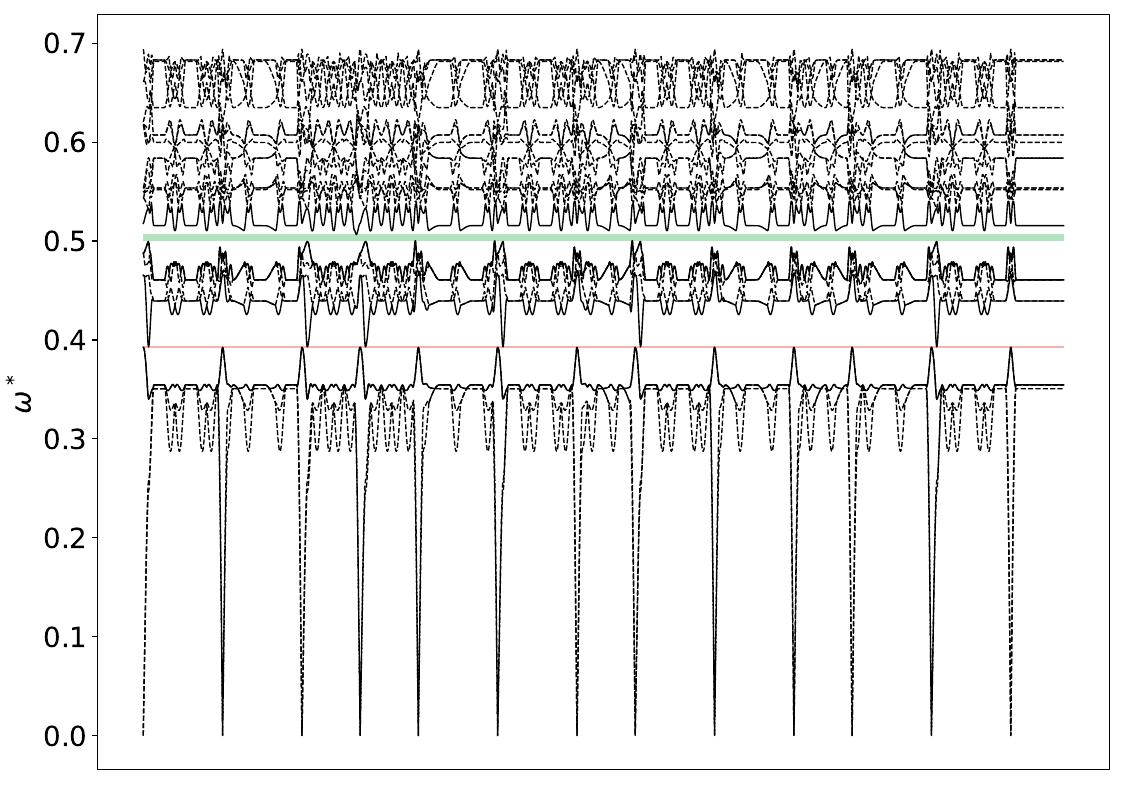

Band Structure across first Brillouin Zone.

../_images/hR1-Po_r@gap_7-8.png

View along \(a_1\).
