cI88-Al3Si3Ag4O12 (Direct)

cI88–Al₃Si₃Ag₄O₁₂ (Direct)

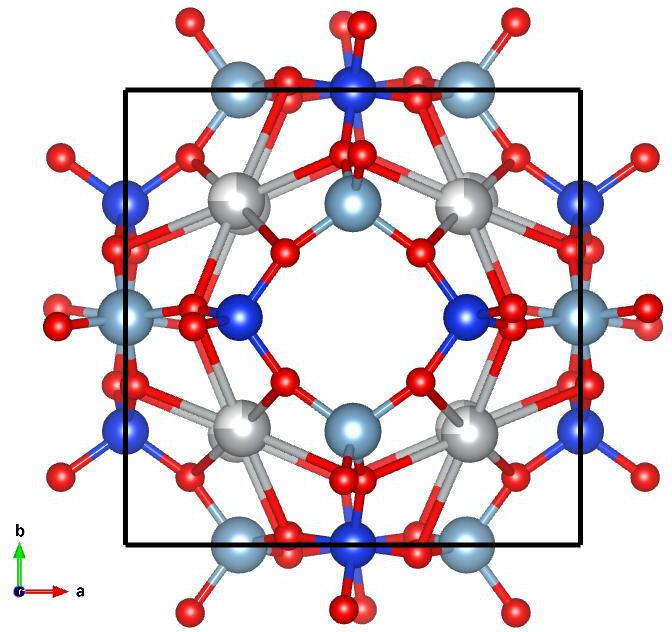

Image of cI88–Al₃Si₃Ag₄O₁₂ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= ~\hat{z}\\\end{split}\]

Space Group: 217

Point Group of Structure: \(\bar{43}m\)

Structure DOI: https://doi.org/10.1006/jssc.1995.1101

Source: Crystallographic Open Database #1510009

MPB Epsilon Input File: Download

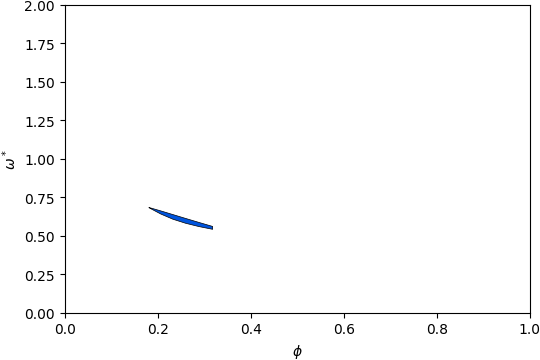

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

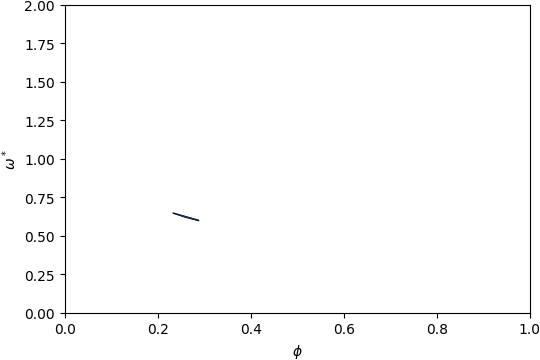

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of cI88–Al₃Si₃Ag₄O₁₂ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.115\) and filling fraction \(\phi = 0.207\).

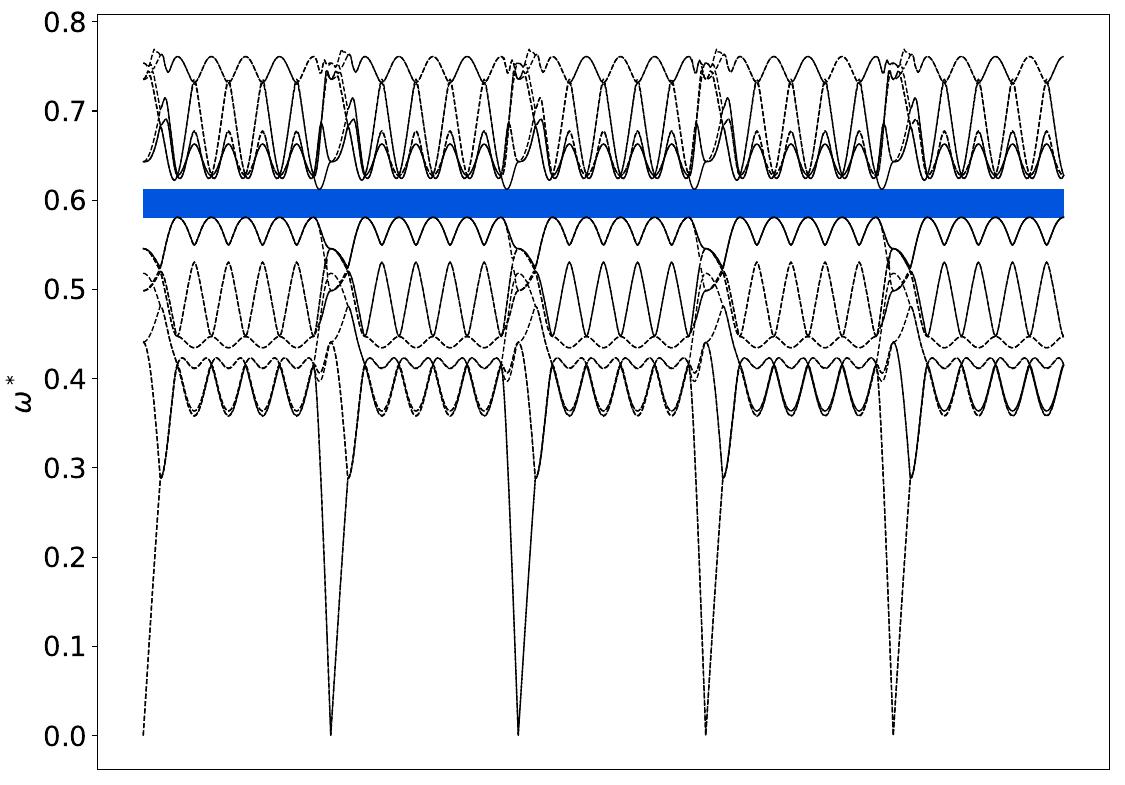

Band Structure across first Brillouin Zone.

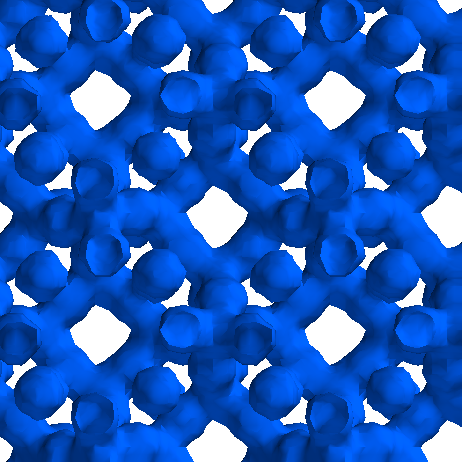

View along \(a_1\).
