oP16-Cd2GaAgS4 (Inverse)

oP16–Cd₂GaAgS₄ (Inverse)

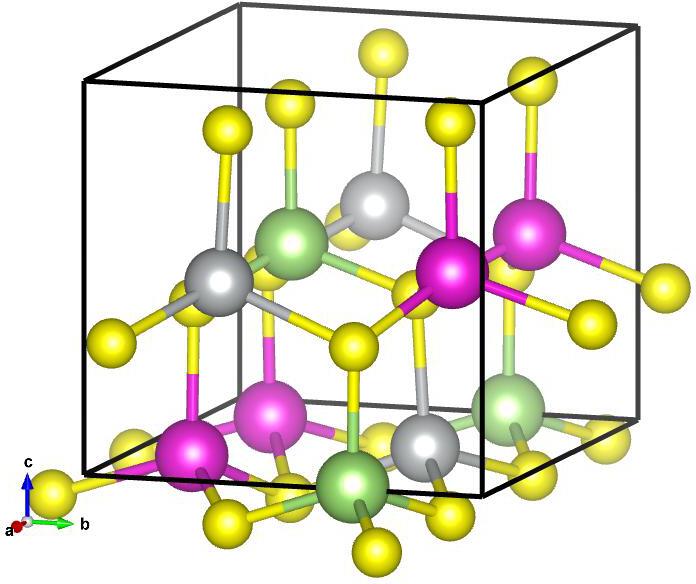

Image of oP16–Cd₂GaAgS₄ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.8525585702~\hat{y}\\ a_3 &= 0.8110326397~\hat{z}\\\end{split}\]

Space Group: 31

Point Group of Structure: \(mm2\)

Structure DOI: https://doi.org/10.1107/S1600536805012341

Source: Crystallographic Open Database #2205826

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

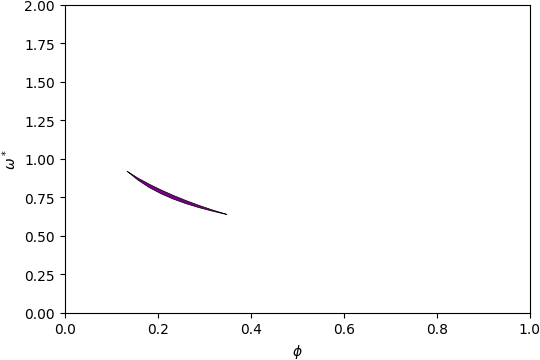

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

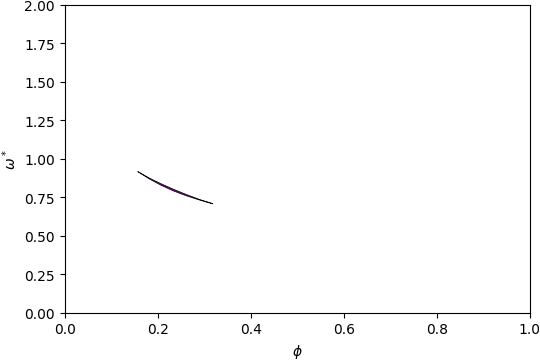

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

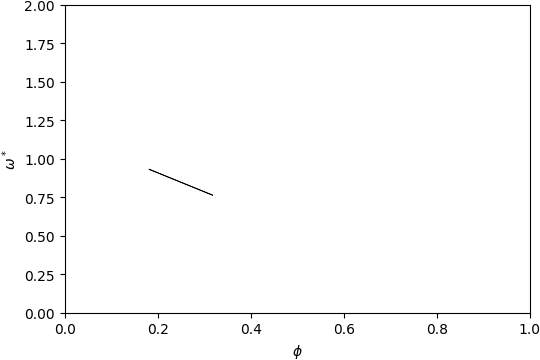

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

Below is the band structure and isosurface of oP16–Cd₂GaAgS₄ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.225\) and filling fraction \(\phi = 0.207\).

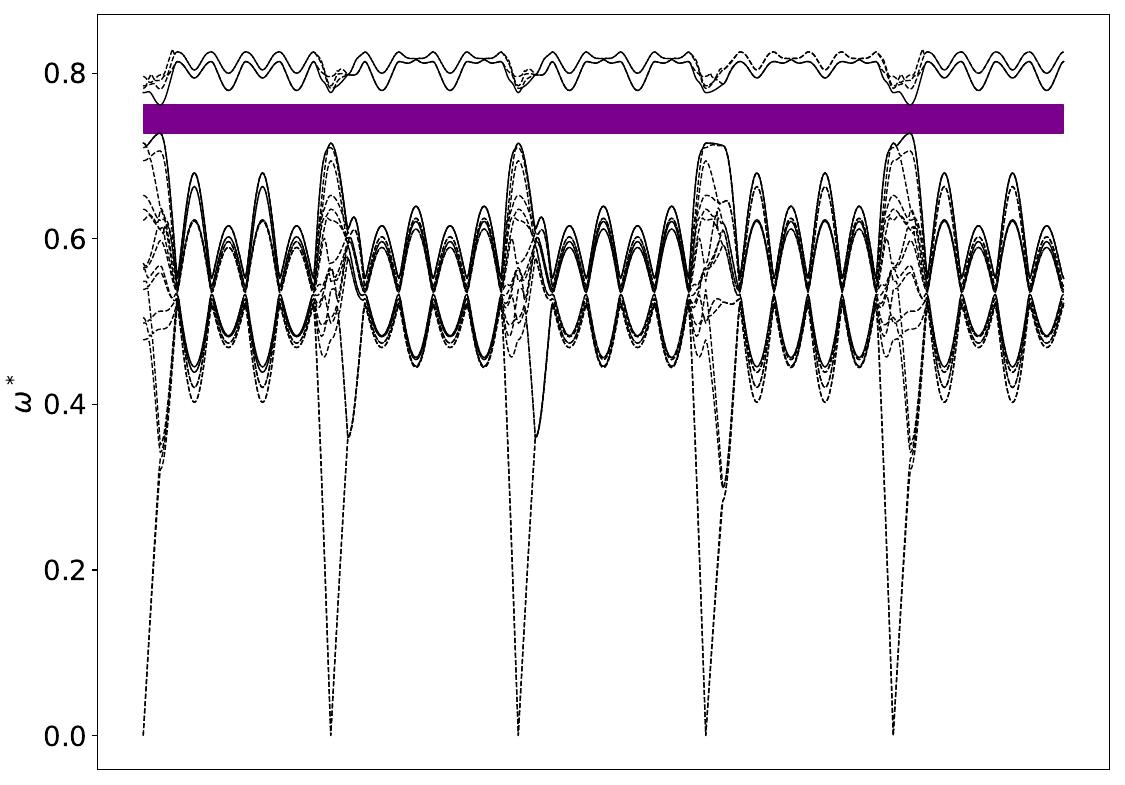

Band Structure across first Brillouin Zone.

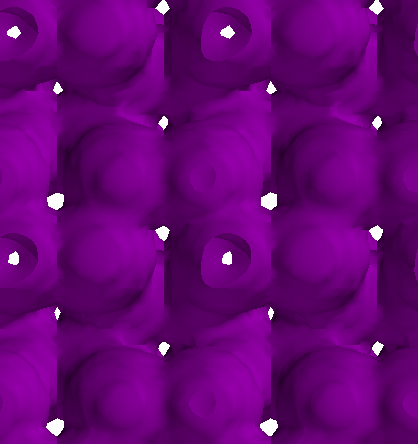

View along \(a_1\).
