oP6-CoTe2 (Inverse)

oP6–CoTe₂ (Inverse)

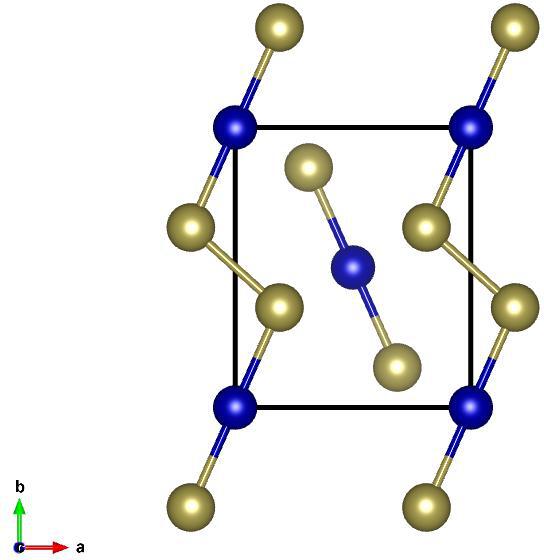

Image of oP6–CoTe₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 1.1880647798~\hat{y}\\ a_3 &= 0.7321159802~\hat{z}\\\end{split}\]

Space Group: 34

Point Group of Structure: \(mm2\)

Structure DOI: https://doi.org/10.1021/ic50166a018

Source: Inorganic Crystallographic Database #625405

MPB Epsilon Input File: Download

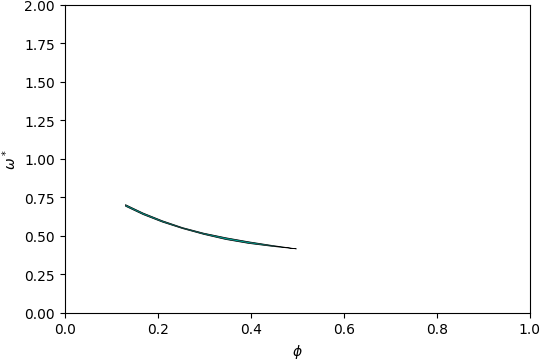

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

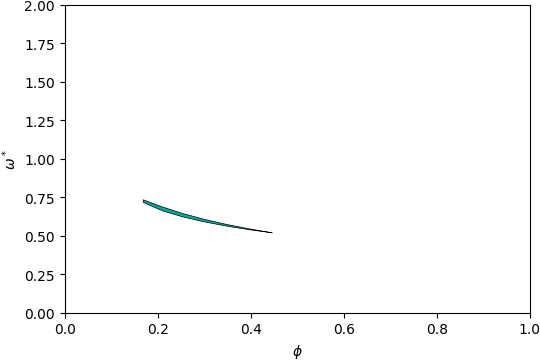

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

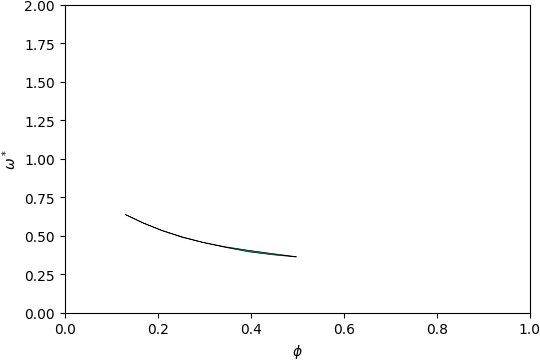

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

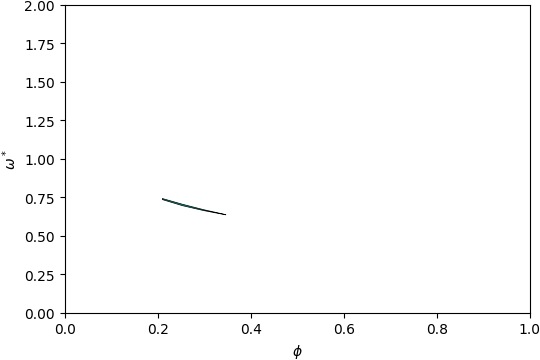

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 6\)

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 4\)

Gap Atlas for \(\varepsilon\) = 4 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 8-9

Below is the band structure and isosurface of oP6–CoTe₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.28\) and filling fraction \(\phi = 0.396\).

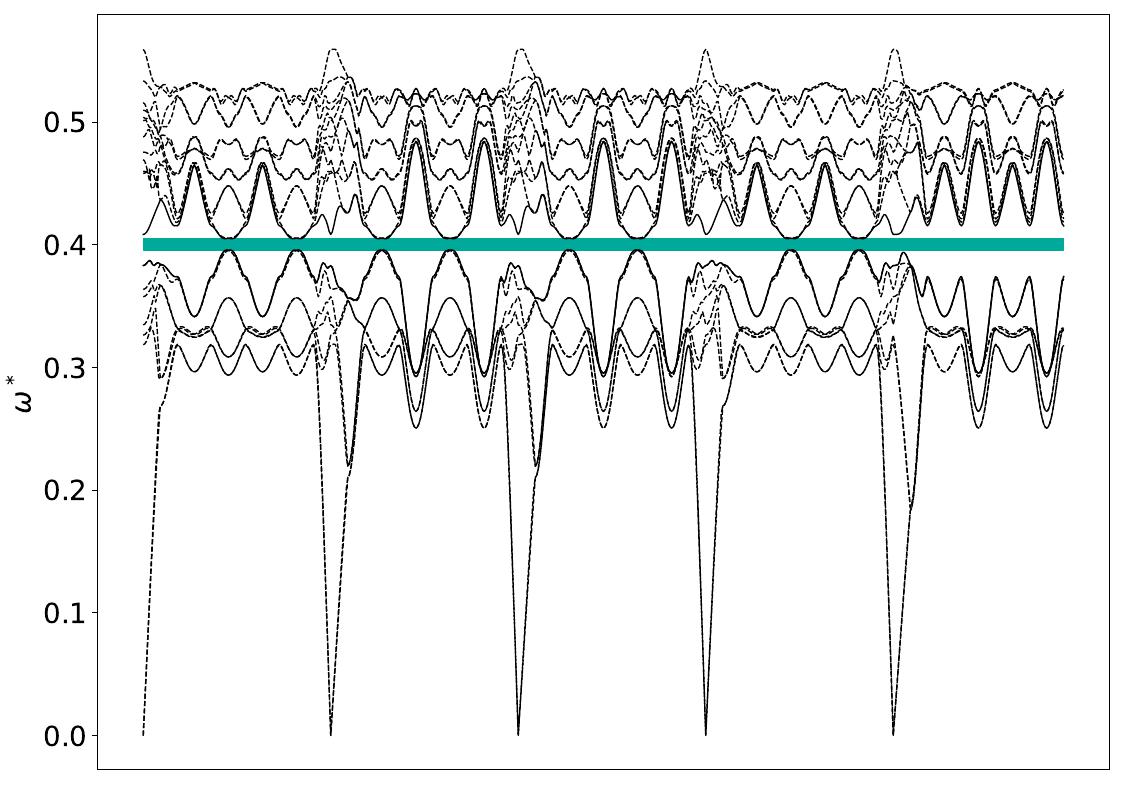

Band Structure across first Brillouin Zone.

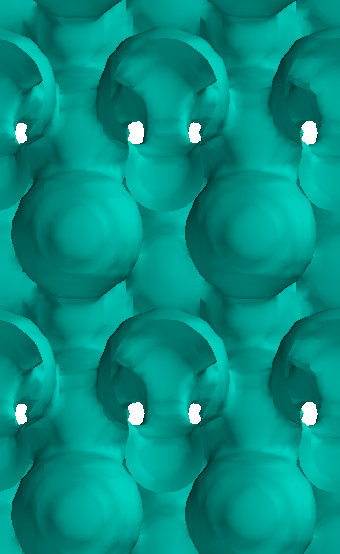

View along \(a_1\).
