oF96-In2S5 (Direct)

oF96–In₂S₅ (Direct)

Image of oF96–In₂S₅ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 0.6369569493~\hat{y} + 0.7708993739~\hat{z}\\ a_2 &= 0.6245325014~\hat{x} + 0.7708993739~\hat{z}\\ a_3 &= 0.6245325014~\hat{x} + 0.6369569493~\hat{y}\\\end{split}\]

Space Group: 43

Point Group of Structure: \(mm2\)

Structure DOI: https://doi.org/10.1107/S0108768104003878

Photonics DOI: Gap(s) for space group 43 above band 2 theorized in: https://doi.org/10.1103/PhysRevLett.121.263903,

Gap(s) above band(s) 8 not previously studied

Source: Crystallographic Open Database #2102385

MPB Epsilon Input File: Download

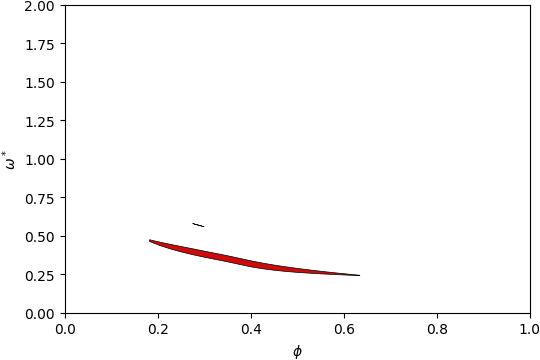

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

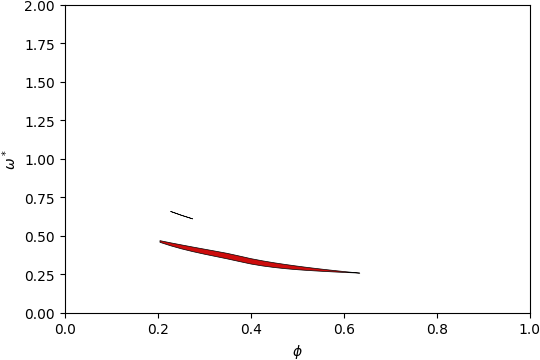

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 6\)

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 2-3

Below is the band structure and isosurface of oF96–In₂S₅ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.15\) and filling fraction \(\phi = 0.375\).

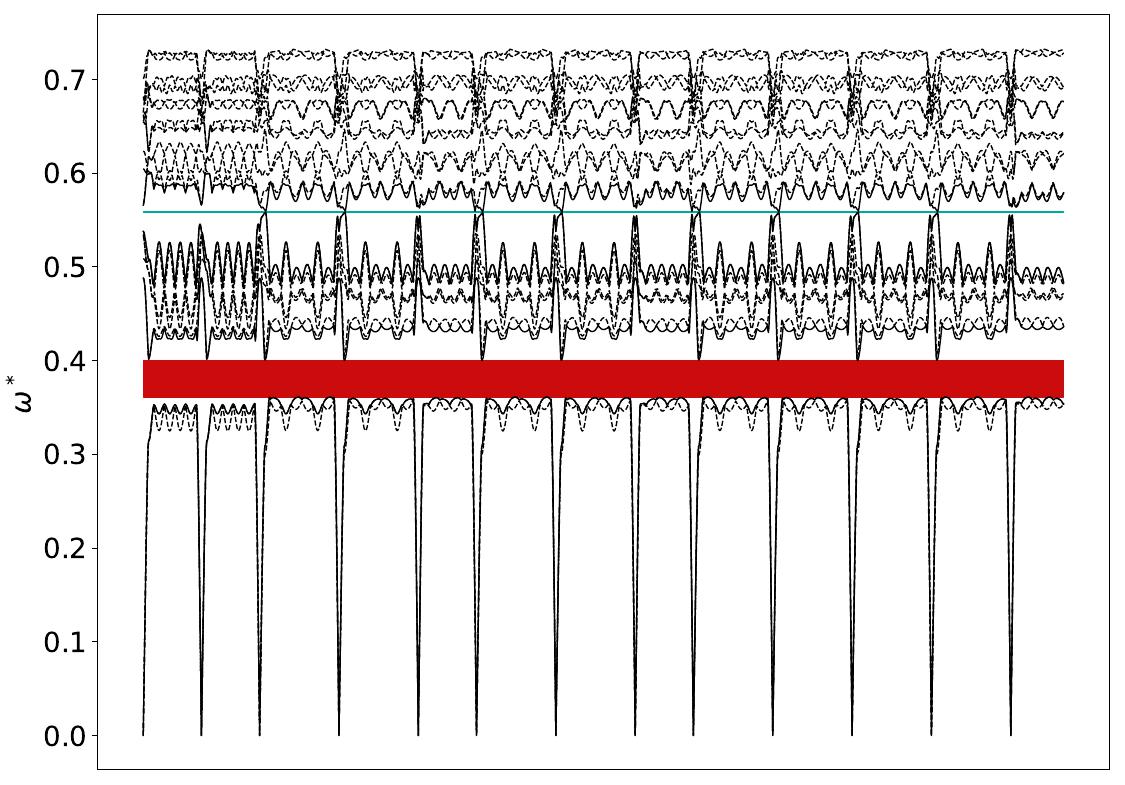

Band Structure across first Brillouin Zone.

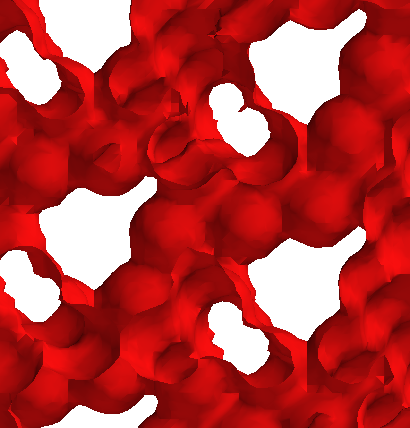

View along \(a_1\).

Gap between Bands 8-9

Below is the band structure and isosurface of oF96–In₂S₅ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.13\) and filling fraction \(\phi = 0.275\).

Band Structure across first Brillouin Zone.

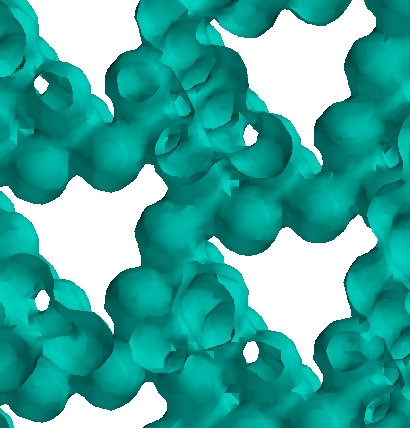

View along \(a_1\).
