cI64-FeSnH5O6 (Inverse)

cI64–FeSnH₅O₆ (Inverse)

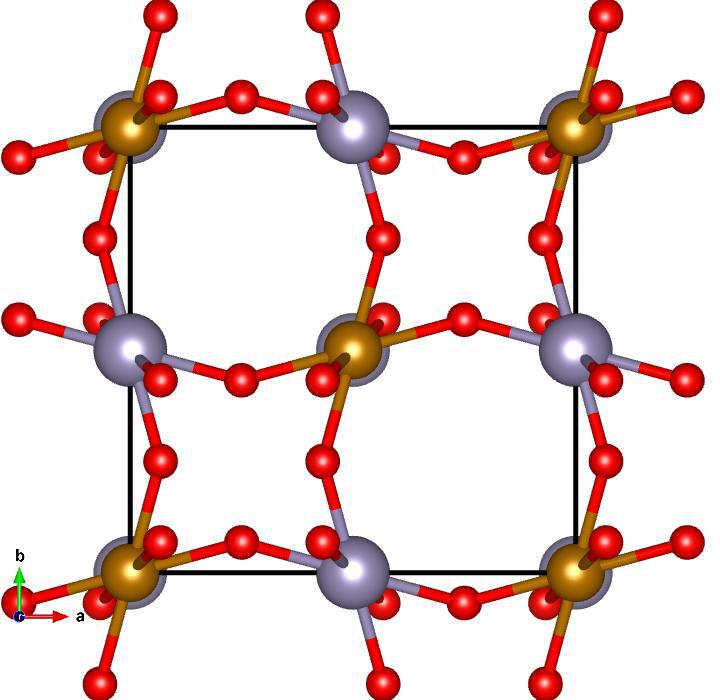

Image of cI64–FeSnH₅O₆ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= ~\hat{z}\\\end{split}\]

Space Group: 229

Point Group of Structure: \(m\bar{3}m\)

Structure DOI: https://doi.org/10.1016/0022-1902(76)80168-6

Source: Crystallographic Open Database #1001744

MPB Epsilon Input File: Download

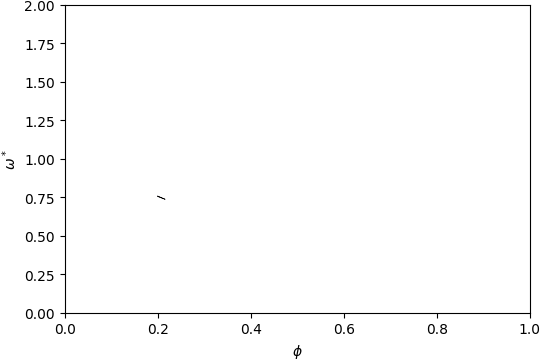

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

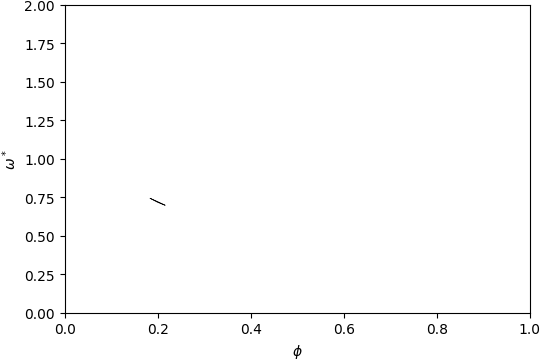

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of cI64–FeSnH₅O₆ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.245\) and filling fraction \(\phi = 0.184\).

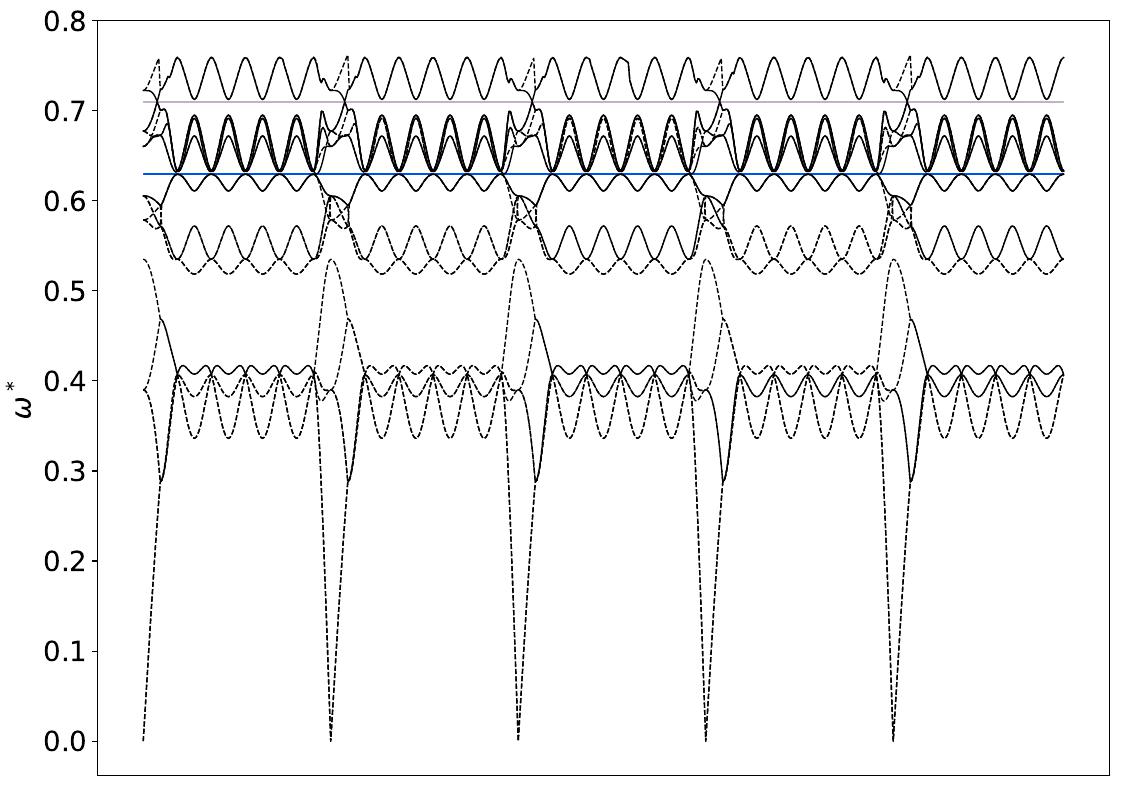

Band Structure across first Brillouin Zone.

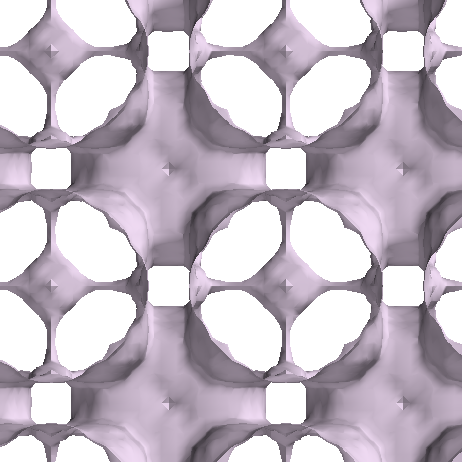

View along \(a_1\).

Gap between Bands 18-19

Below is the band structure and isosurface of cI64–FeSnH₅O₆ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.24\) and filling fraction \(\phi = 0.2\).

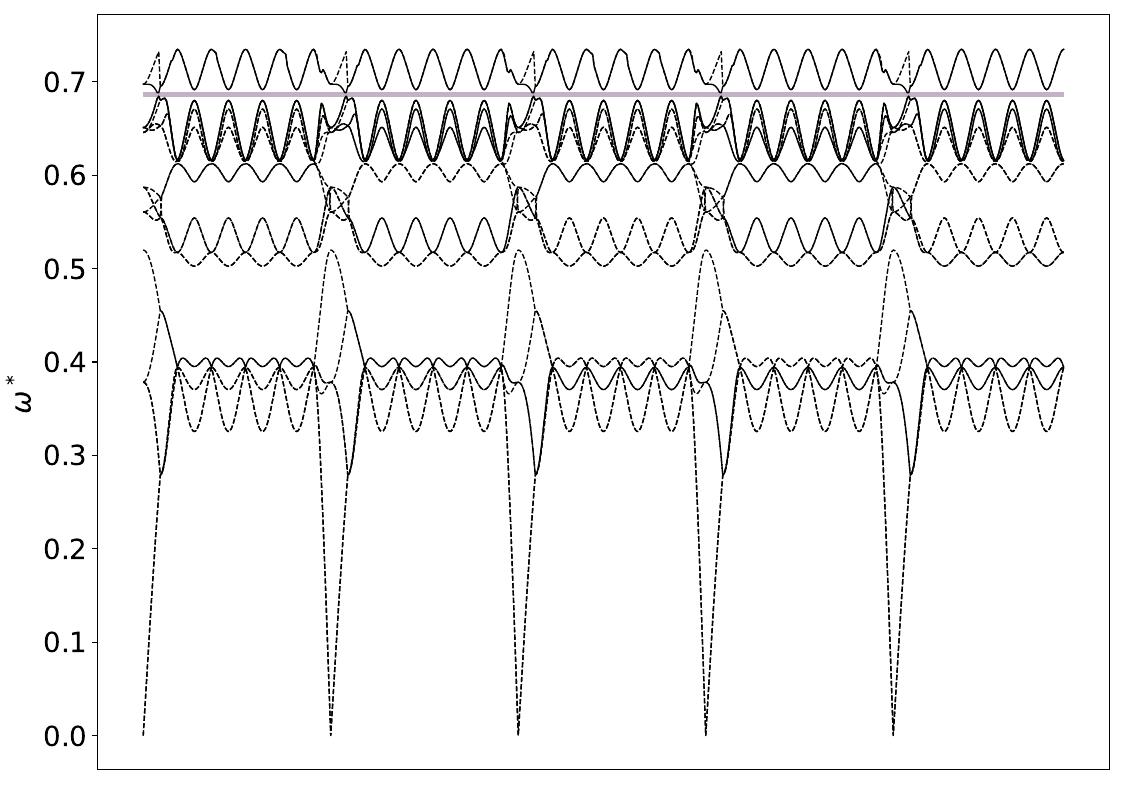

Band Structure across first Brillouin Zone.

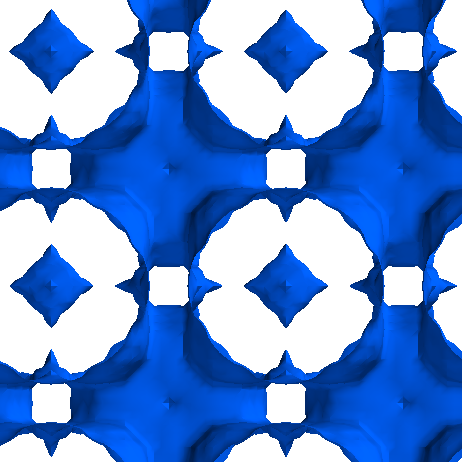

View along \(a_1\).
