mC4-Ce (Inverse)

mC4–Ce (Inverse)

../_images/structure296.jpg

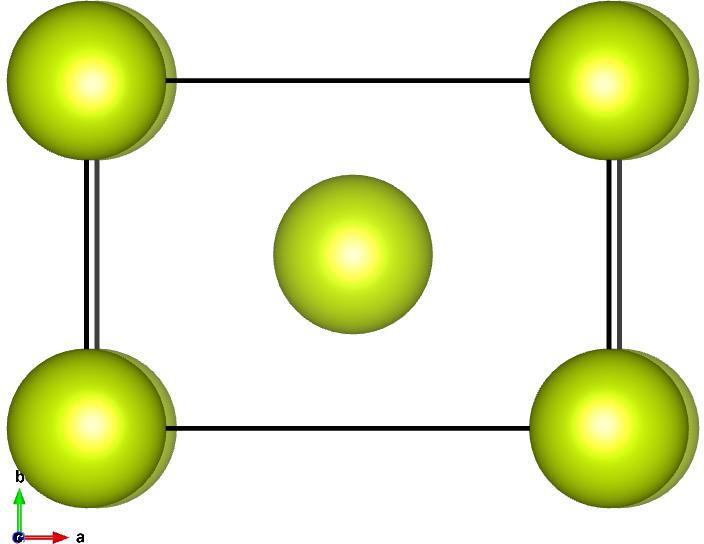

Image of mC4–Ce (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.6656866906~\hat{y}\\ a_3 &= -0.0200905187~\hat{x} + 0.6651733278~\hat{z}\\\end{split}\]

Space Group: 12

Point Group of Structure: \(2/m\)

Structure DOI: https://doi.org/10.1107/S0567739477000321

Source: Inorganic Crystallographic Database #41824

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

../_images/gap_atlas-16292.png

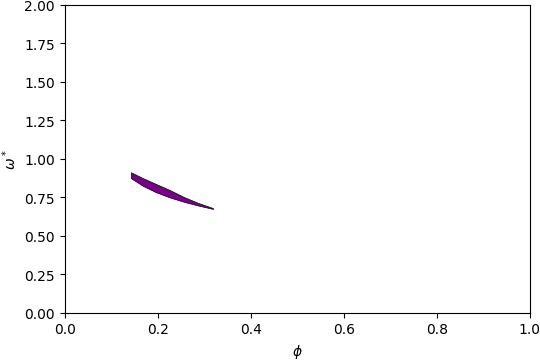

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

../_images/gap_atlas-14292.png

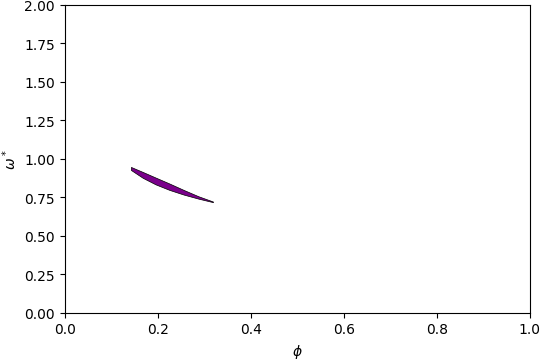

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

../_images/gap_atlas-12246.png

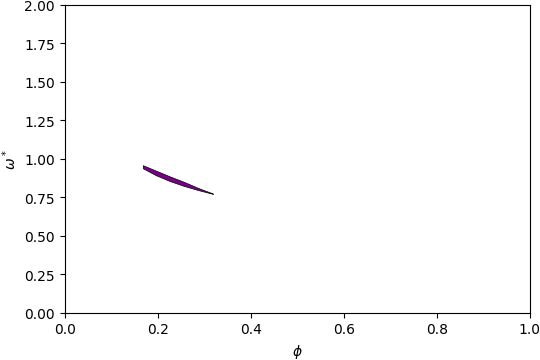

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

../_images/gap_atlas-10189.png

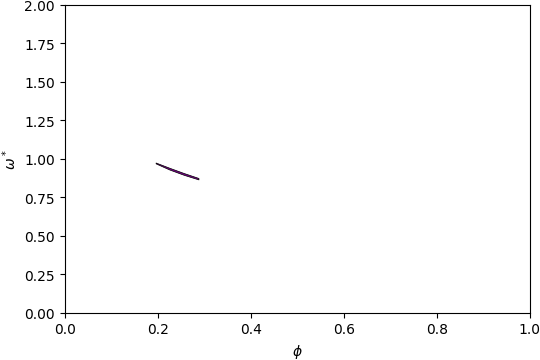

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

../_images/gap_atlas-8124.png

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

Below is the band structure and isosurface of mC4–Ce (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.35\) and filling fraction \(\phi = 0.197\).

../_images/band_diagram_b=1654.jpg

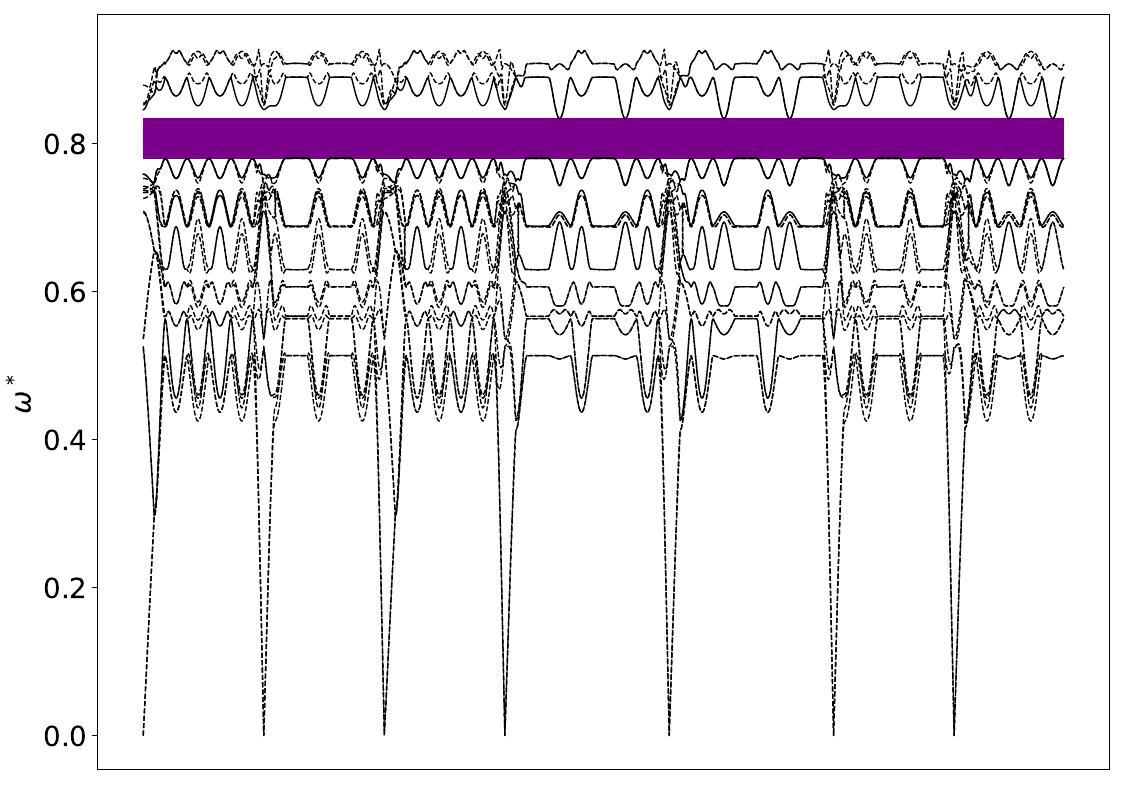

Band Structure across first Brillouin Zone.

../_images/mC4-Ce_r@gap_16-17.png

View along \(a_1\).
