mP36-SiO2 (Direct)

mP36–SiO₂ (Direct)

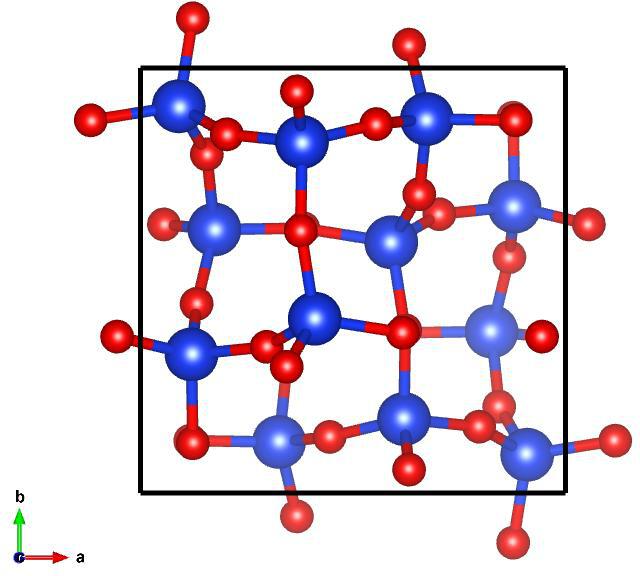

Image of mP36–SiO₂ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= 1.153969992396826~\hat{z}\\\end{split}\]

Space Group: 4

Point Group of Structure: \(2\)

Structure DOI: https://doi.org/10.1524/zkri.1959.112.jg.409

Source: Inorganic Crystallographic Database #34889

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

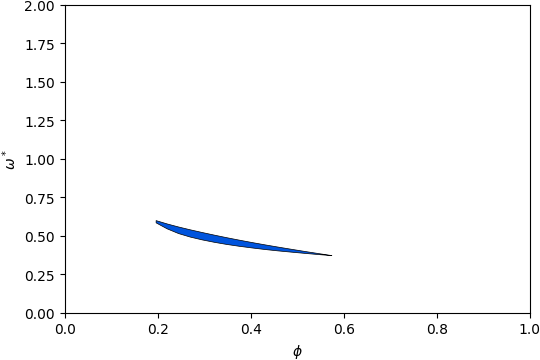

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

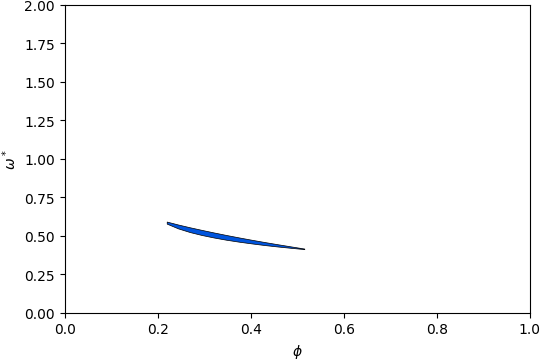

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

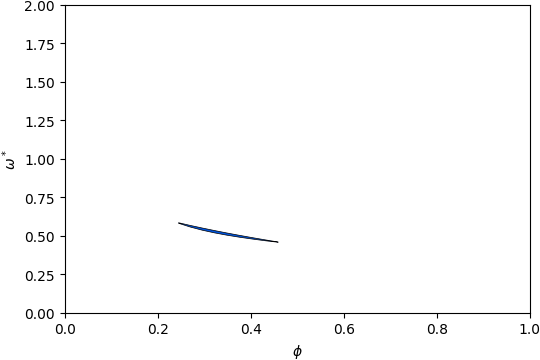

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of mP36–SiO₂ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.14\) and filling fraction \(\phi = 0.197\).

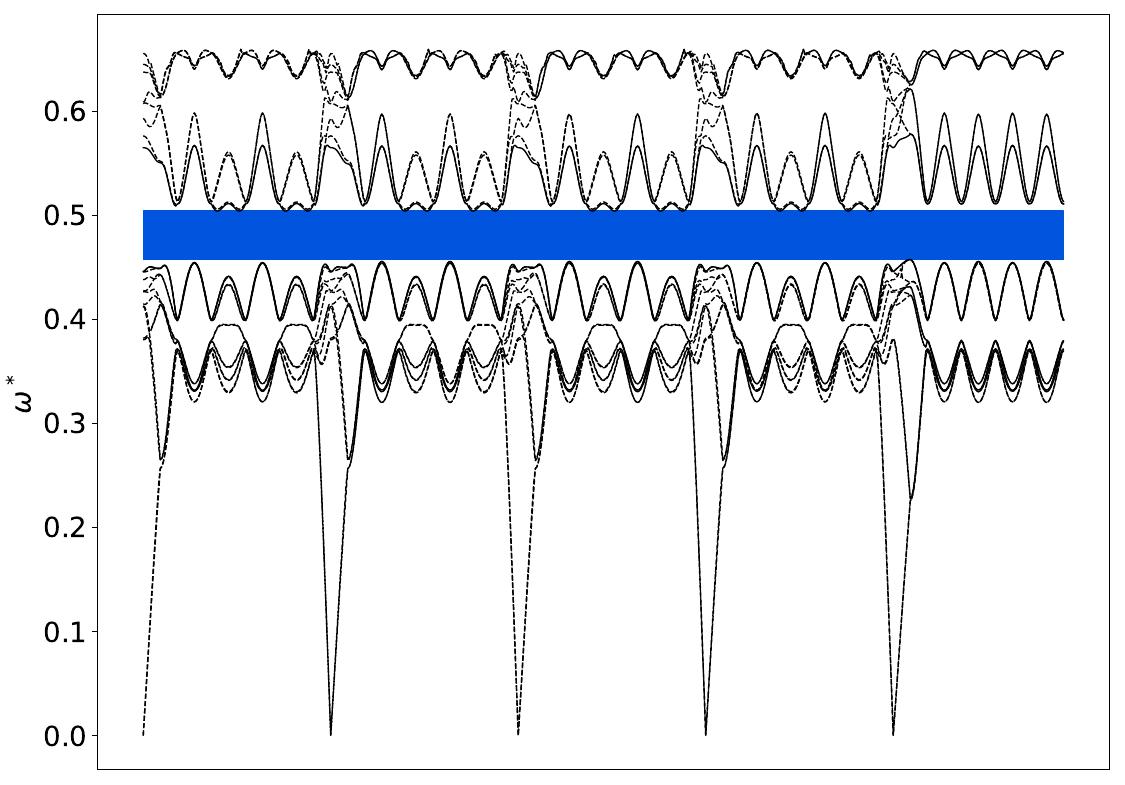

Band Structure across first Brillouin Zone.

View along \(a_1\).
