hP4-CuNiSb2 (Inverse)

hP4–CuNiSb₂ (Inverse)

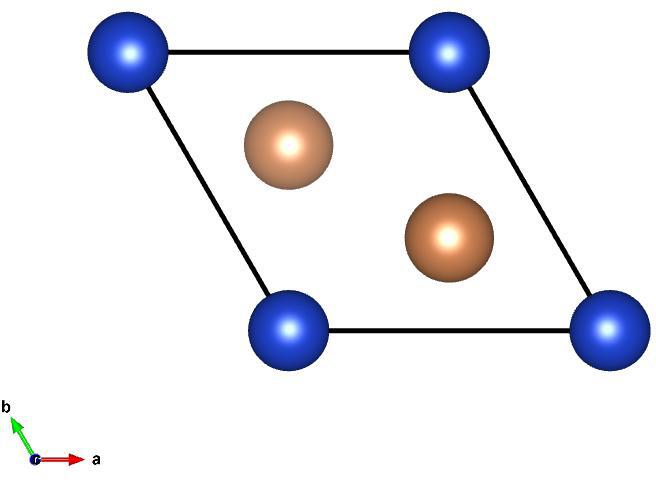

Image of hP4–CuNiSb₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= -1/2~\hat{x} + \sqrt{3}/\sqrt{4}~\hat{y}\\ a_3 &= 1.2683781821~\hat{z}\\\end{split}\]

Space Group: 164

Point Group of Structure: \(\bar{3}m\)

Structure DOI: https://doi.org/10.17188/1188422

Source: Crystallographic Open Database #9014572

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

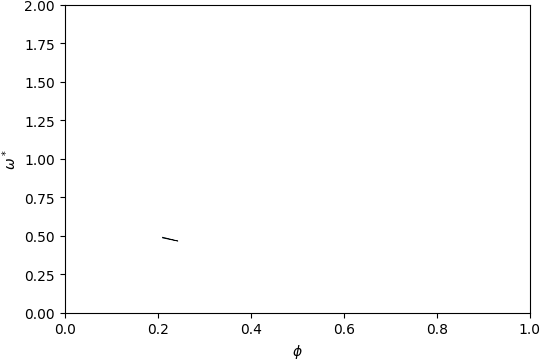

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 10-11

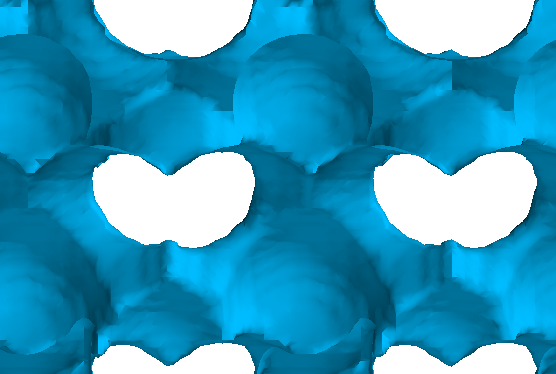

Below is the band structure and isosurface of hP4–CuNiSb₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.39\) and filling fraction \(\phi = 0.21\).

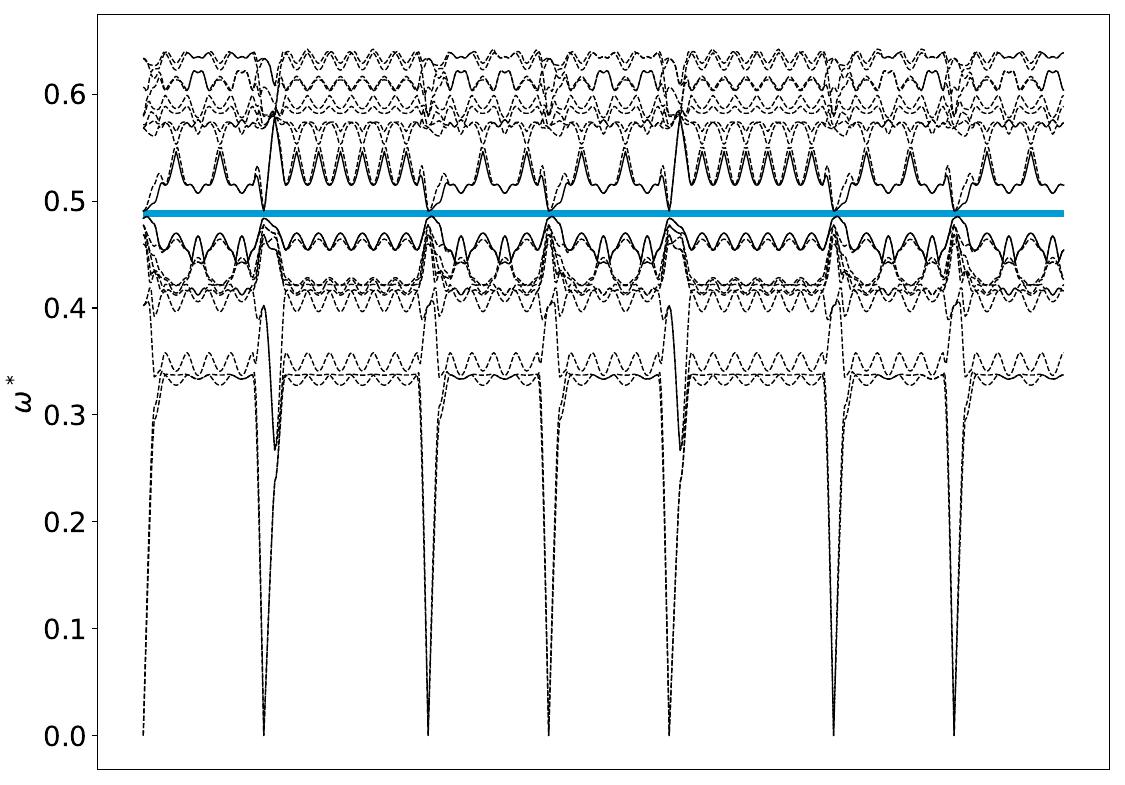

Band Structure across first Brillouin Zone.

View along \(a_1\).
