cP20-CsCd(NO2)3 (Direct)

cP20–CsCd(NO₂)₃ (Direct)

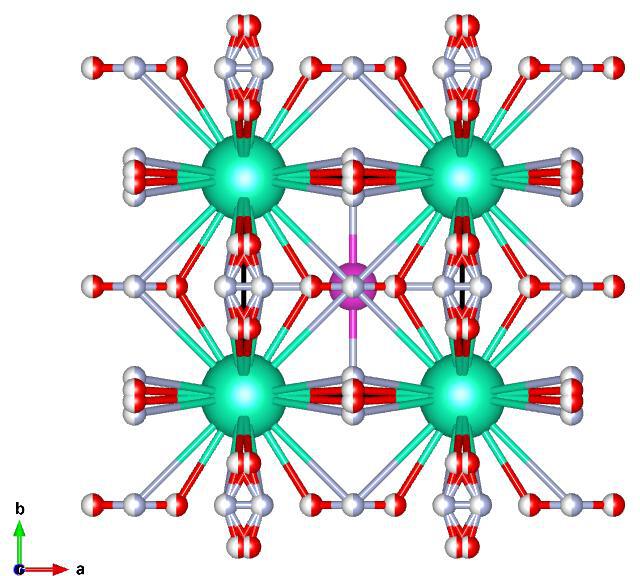

Image of cP20–CsCd(NO₂)₃ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= ~\hat{z}\\\end{split}\]

Space Group: 200

Point Group of Structure: \(m\bar{3}\)

Structure DOI: https://doi.org/10.1016/0022-5088(79)90251-0

Source: Crystallographic Open Database #1529593

MPB Epsilon Input File: Download

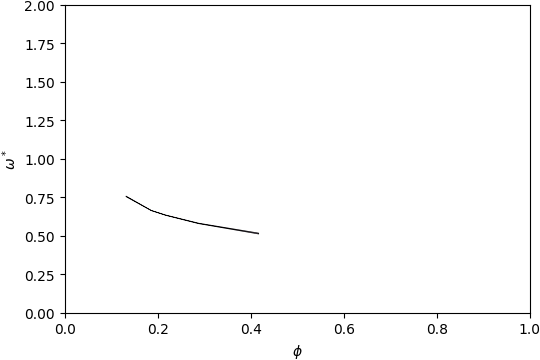

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

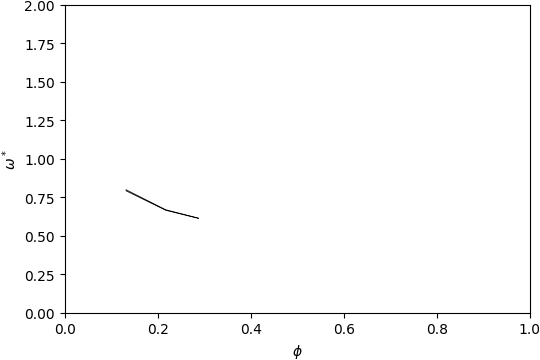

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 17-18

Below is the band structure and isosurface of cP20–CsCd(NO₂)₃ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.21\) and filling fraction \(\phi = 0.417\).

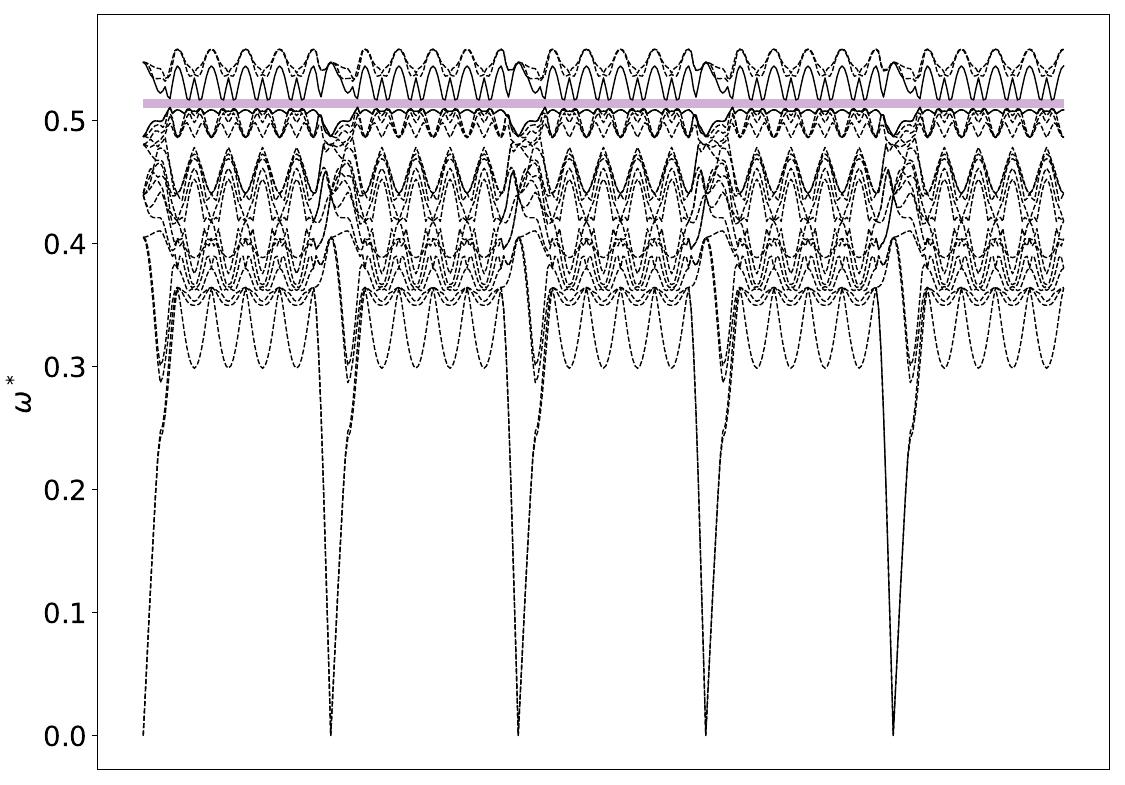

Band Structure across first Brillouin Zone.

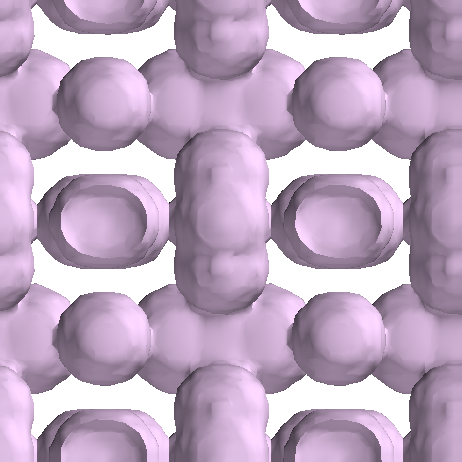

View along \(a_1\).
