oC8-C (Direct)

oC8–C (Direct)

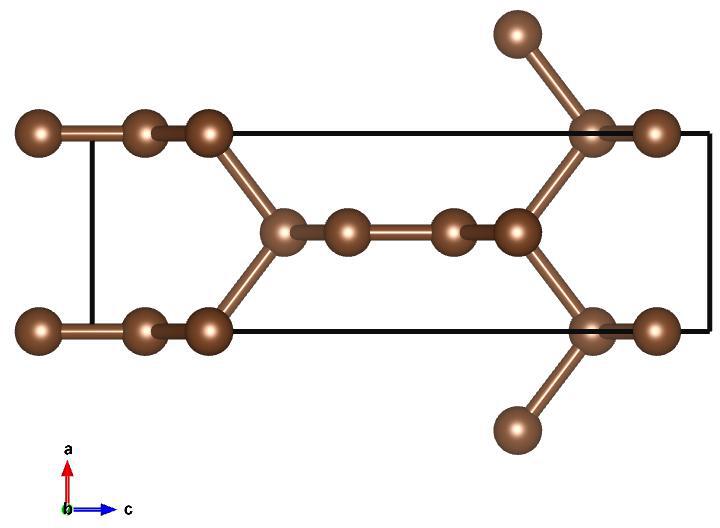

Image of oC8–C (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 0.3053336147~\hat{x} - 0.952245443~\hat{y}\\ a_2 &= 0.3053336147~\hat{x} + 0.952245443~\hat{y}\\ a_3 &= 0.662898554~\hat{z}\\\end{split}\]

Space Group: 65

Point Group of Structure: \(mmm\)

Structure DOI: https://doi.org/10.1007/s10910-012-0030-x

Source: Inorganic Crystallographic Database #188336

MPB Epsilon Input File: Download

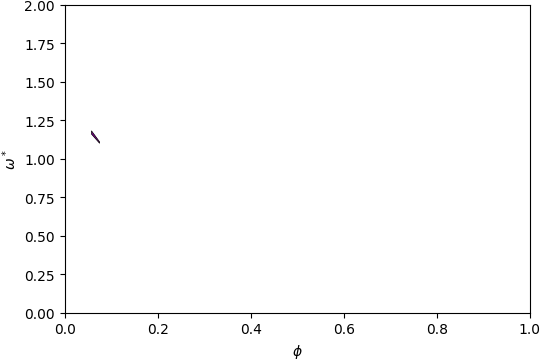

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

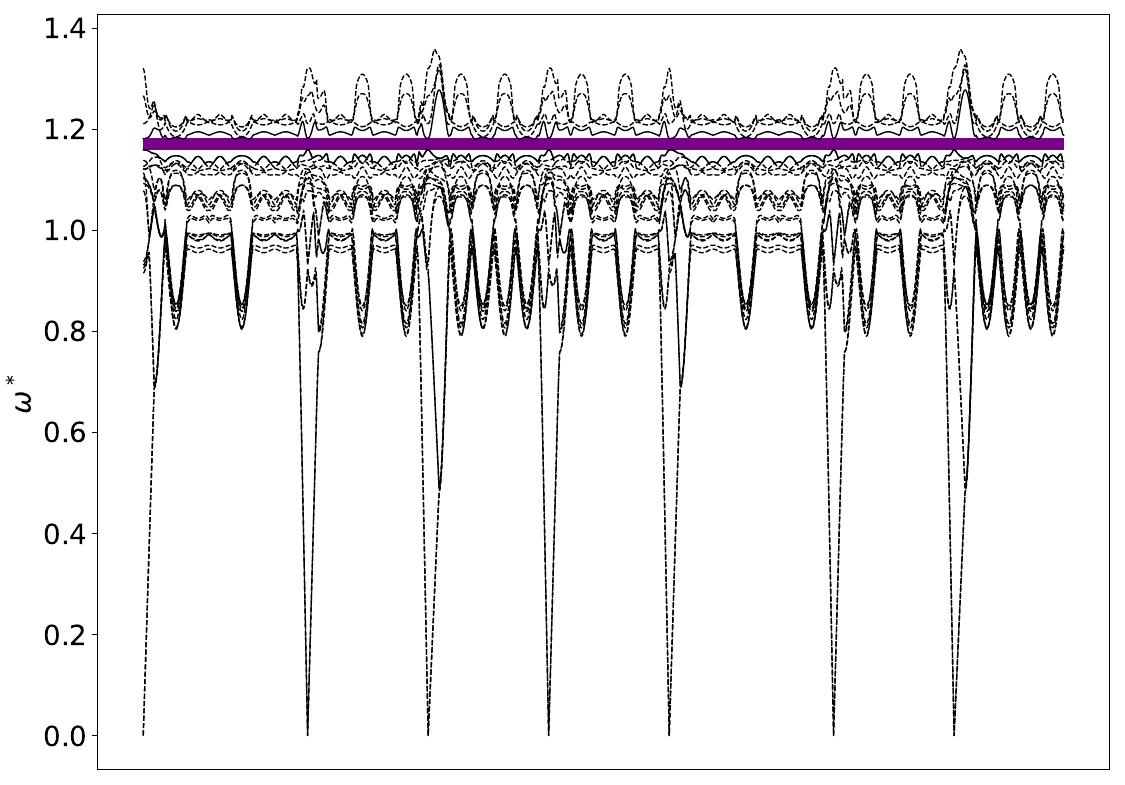

Below is the band structure and isosurface of oC8–C (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.11\) and filling fraction \(\phi = 0.058\).

Band Structure across first Brillouin Zone.

View along \(a_1\).
