tI12-HfV2 (Inverse)

tI12–HfV₂ (Inverse)

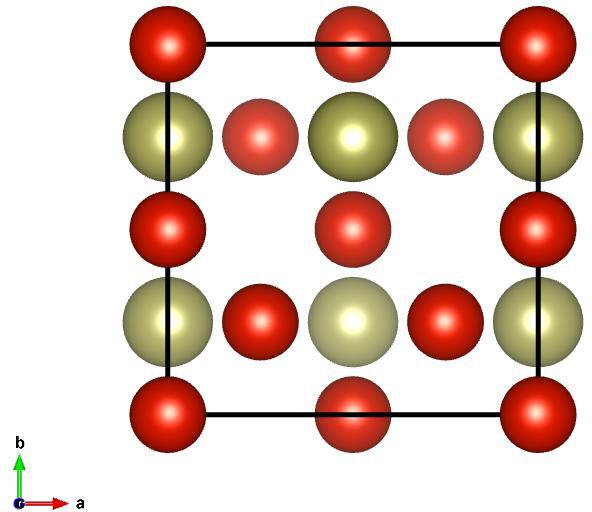

Image of tI12–HfV₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= -0.4987313728~\hat{x} + 0.4987313728~\hat{y} + 0.7088963504~\hat{z}\\ a_2 &= 0.4987313728~\hat{x} - 0.4987313728~\hat{y} + 0.7088963504~\hat{z}\\ a_3 &= 0.4987313728~\hat{x} + 0.4987313728~\hat{y} - 0.7088963504~\hat{z}\\\end{split}\]

Space Group: 141

Point Group of Structure: \(4/mmm\)

Structure DOI: https://doi.org/10.1107/S0108768100003633

Source: Crystallographic Open Database #2102112

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

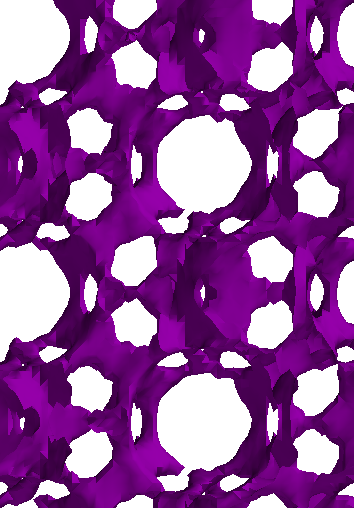

Below is the band structure and isosurface of tI12–HfV₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.29\) and filling fraction \(\phi = 0.179\).

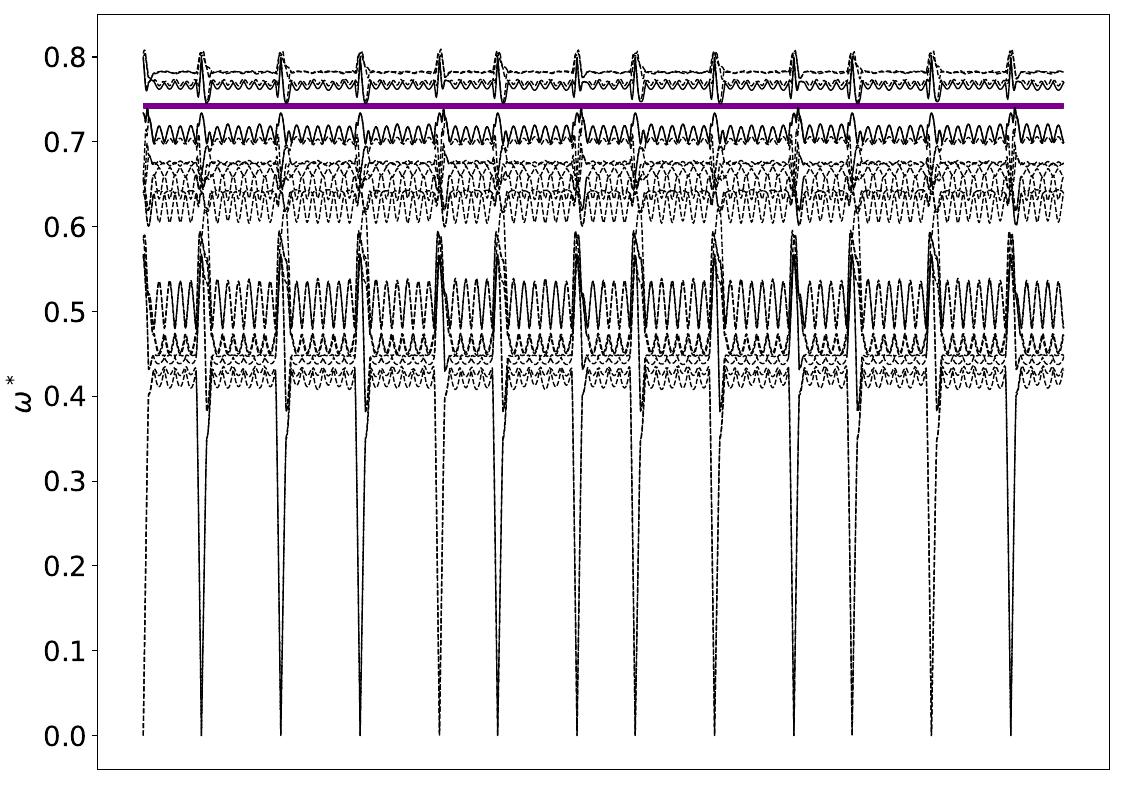

Band Structure across first Brillouin Zone.

View along \(a_1\).
