cI96-TiTe3O8 (Inverse)

cI96–TiTe₃O₈ (Inverse)

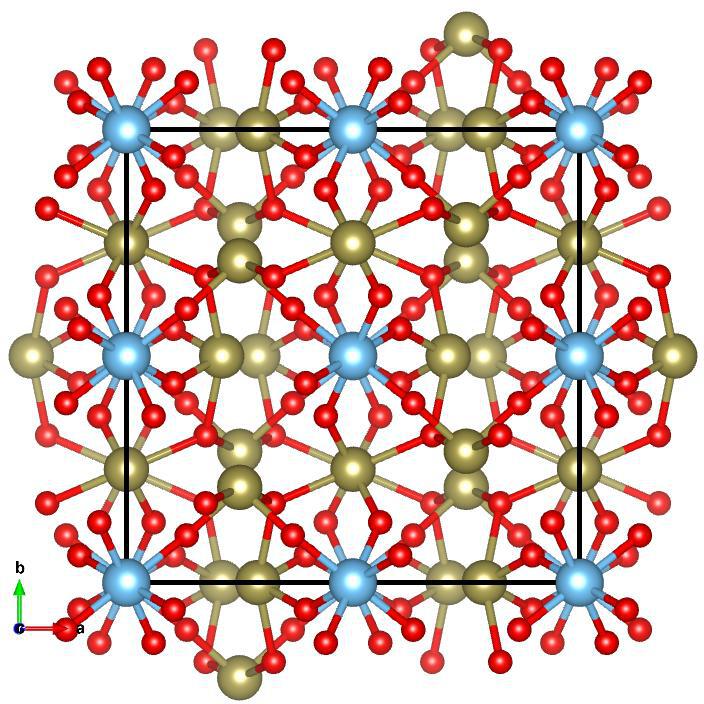

Image of cI96–TiTe₃O₈ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= -1/\sqrt{3}~\hat{x} + 1/\sqrt{3}~\hat{y} + 1/\sqrt{3}~\hat{z}\\ a_2 &= 1/\sqrt{3}~\hat{x} - 1/\sqrt{3}~\hat{y} + 1/\sqrt{3}~\hat{z}\\ a_3 &= 1/\sqrt{3}~\hat{x} + 1/\sqrt{3}~\hat{y} - 1/\sqrt{3}~\hat{z}\\\end{split}\]

Space Group: 206

Point Group of Structure: \(m\bar{3}\)

Structure DOI: https://doi.org/10.1107/S0567740871002620

Source: Crystallographic Open Database #2106051

MPB Epsilon Input File: Download

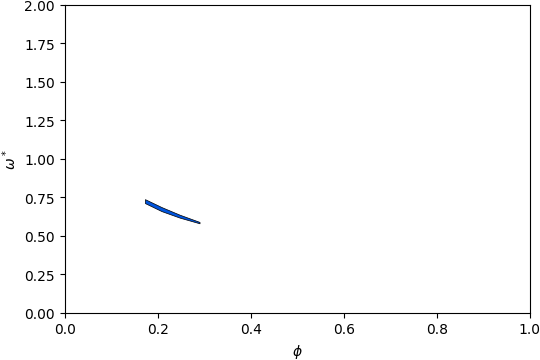

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

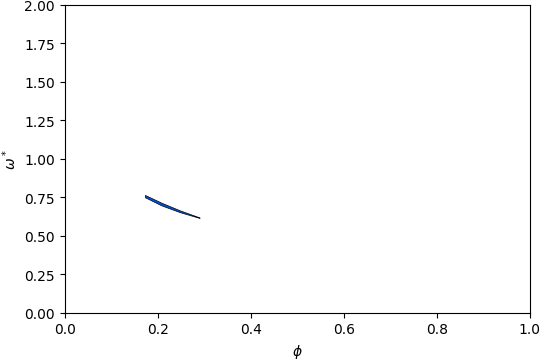

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

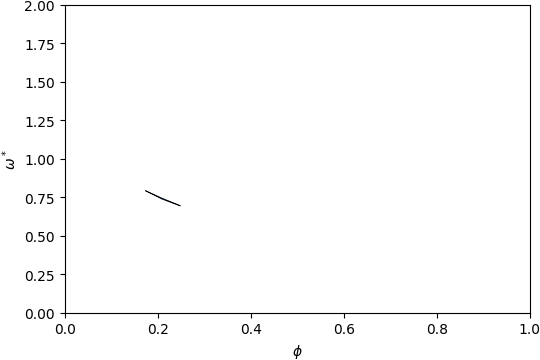

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of cI96–TiTe₃O₈ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.16\) and filling fraction \(\phi = 0.209\).

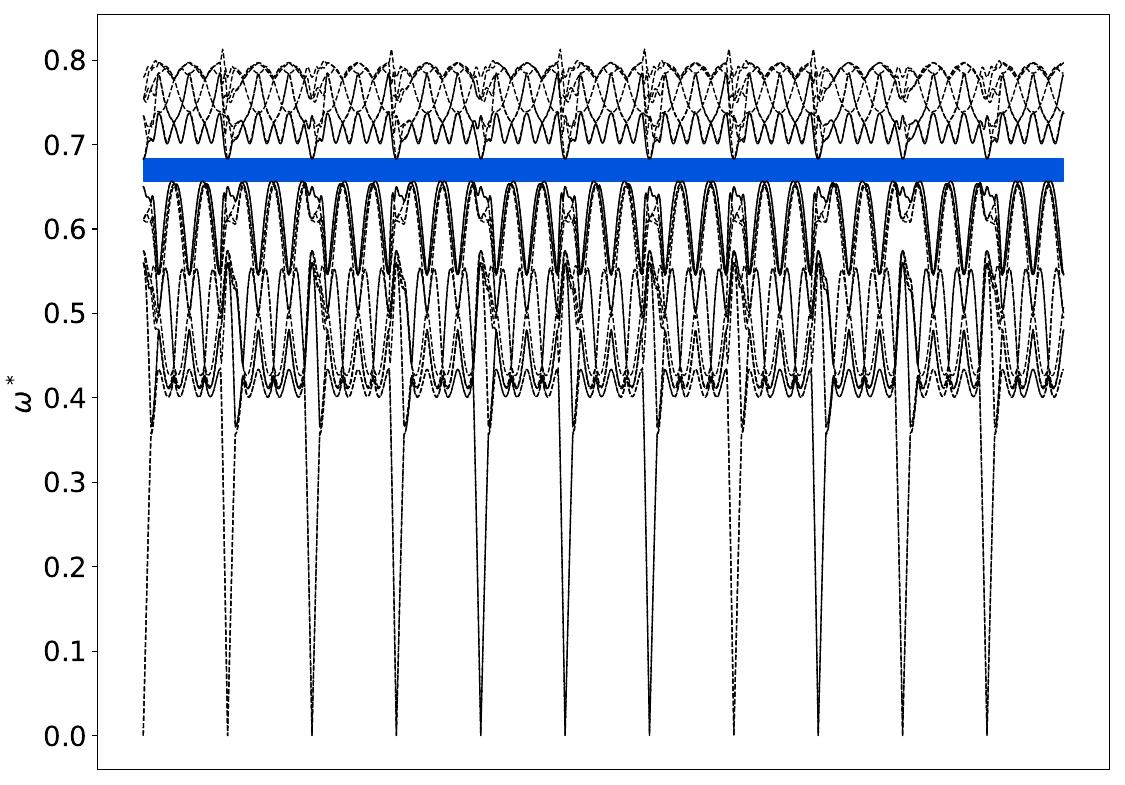

Band Structure across first Brillouin Zone.

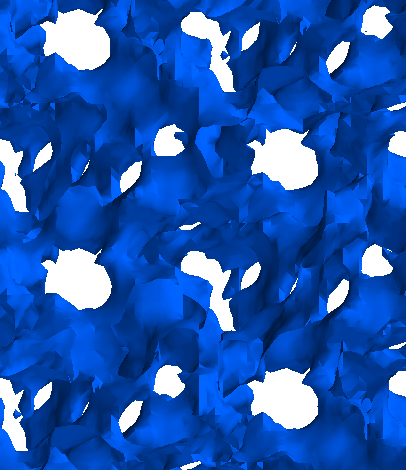

View along \(a_1\).
