cP12-Te2Rh (Inverse)

cP12–Te₂Rh (Inverse)

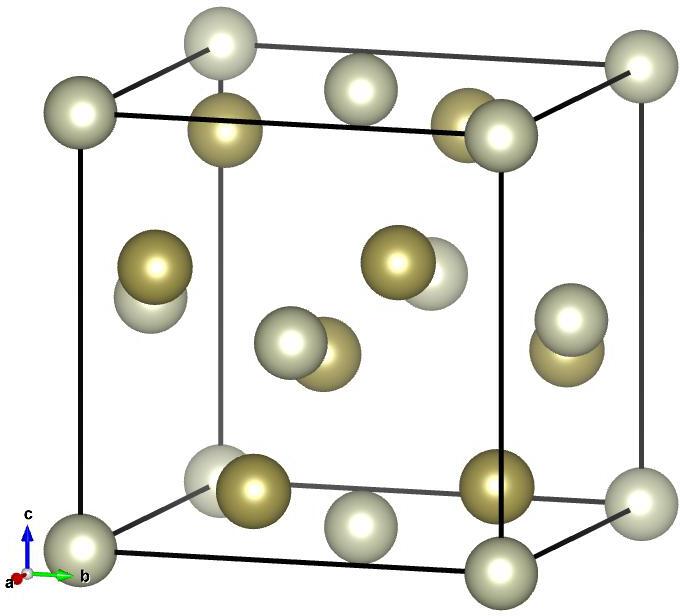

Image of cP12–Te₂Rh (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= ~\hat{z}\\\end{split}\]

Space Group: 205

Point Group of Structure: \(m\bar{3}\)

Structure DOI: https://doi.org/10.3891/acta.chem.scand.32a-0209

Source: Inorganic Crystallographic Database #2179

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

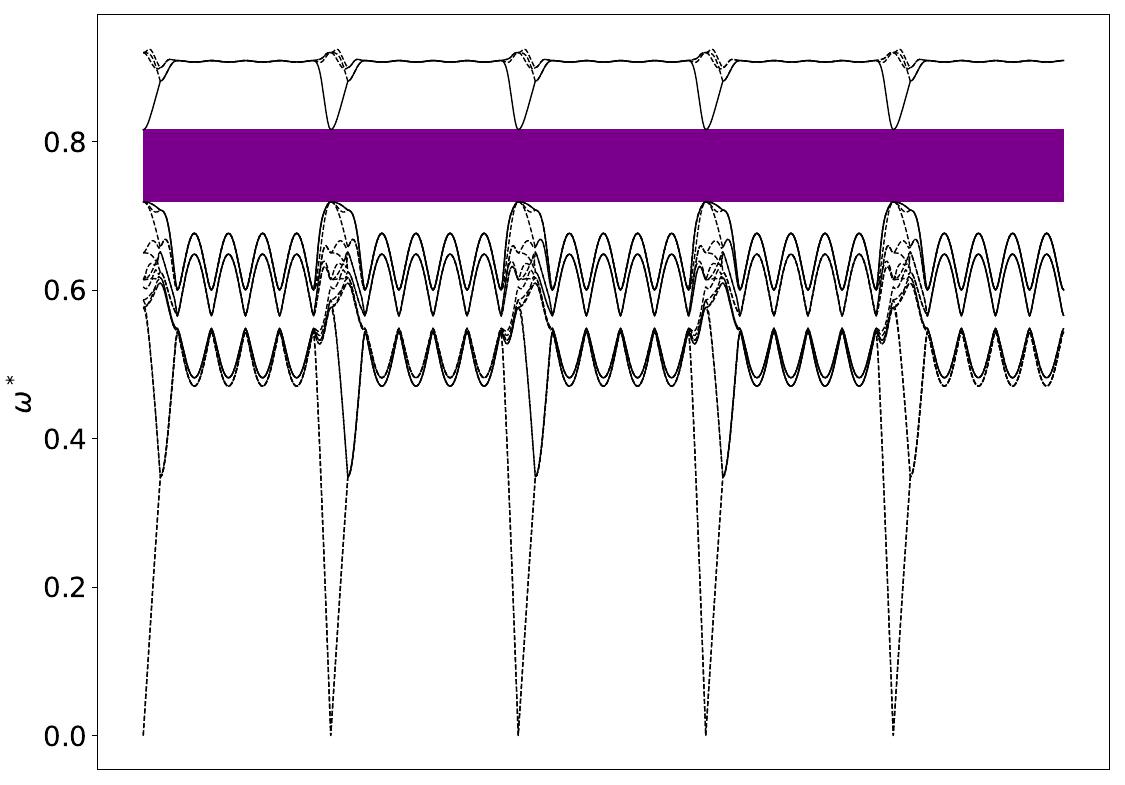

Below is the band structure and isosurface of cP12–Te₂Rh (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.28\) and filling fraction \(\phi = 0.123\).

Band Structure across first Brillouin Zone.

View along \(a_1\).
