oP20-Li2TiTeO6 (Inverse)

oP20–Li₂TiTeO₆ (Inverse)

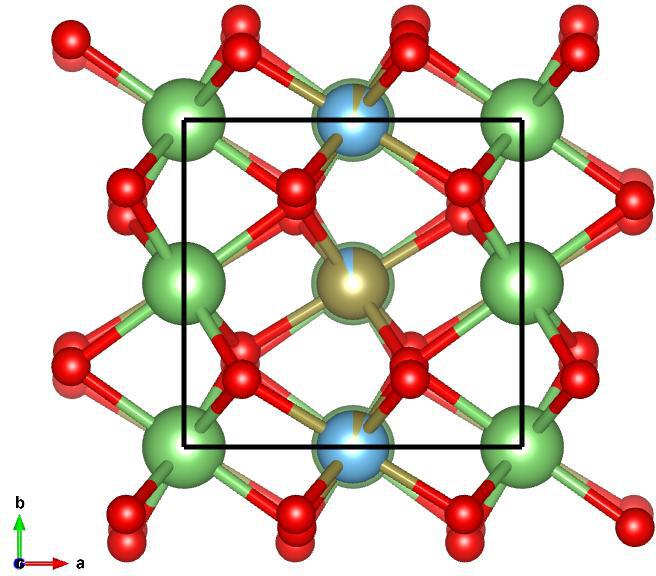

Image of oP20–Li₂TiTeO₆ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.96667981~\hat{y}\\ a_3 &= 1.65654574~\hat{z}\\\end{split}\]

Space Group: 52

Point Group of Structure: \(mmm\)

Structure DOI: https://doi.org/10.1016/0022-4596(89)90292-2

Source: Crystallographic Open Database #1001856

MPB Epsilon Input File: Download

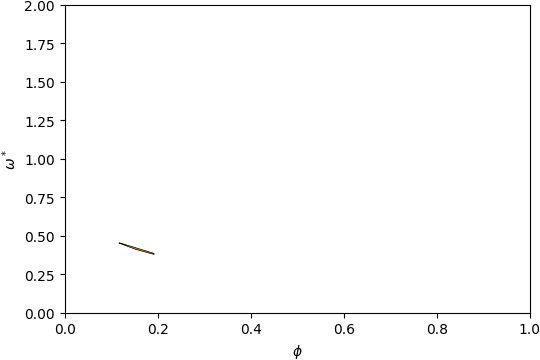

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

Below is the band structure and isosurface of oP20–Li₂TiTeO₆ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.28\) and filling fraction \(\phi = 0.152\).

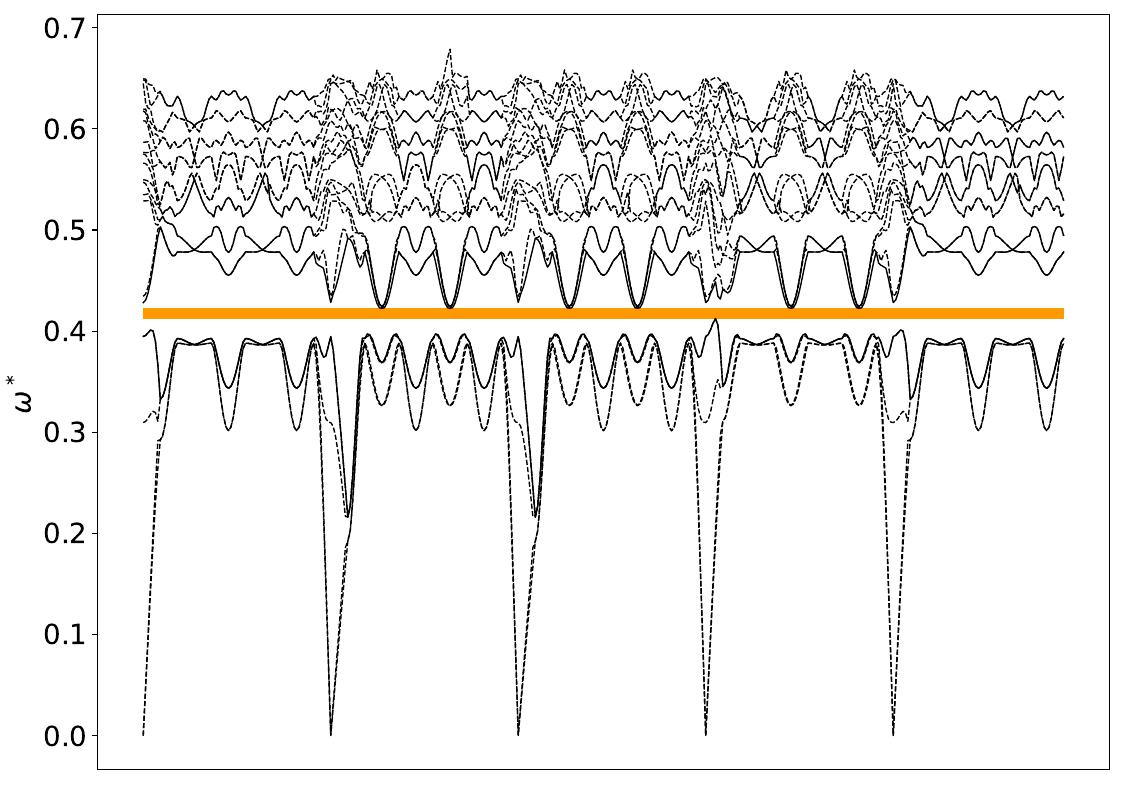

Band Structure across first Brillouin Zone.

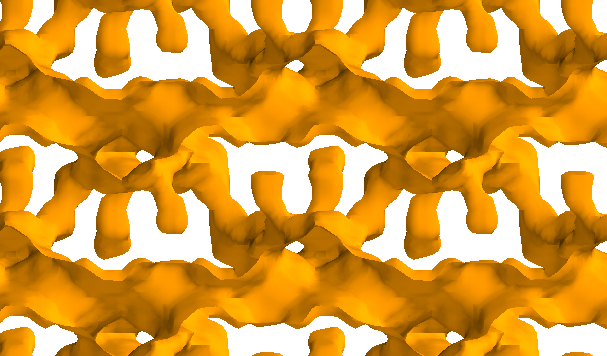

View along \(a_1\).
