tI8-YMn2 (Inverse)

tI8–YMn₂ (Inverse)

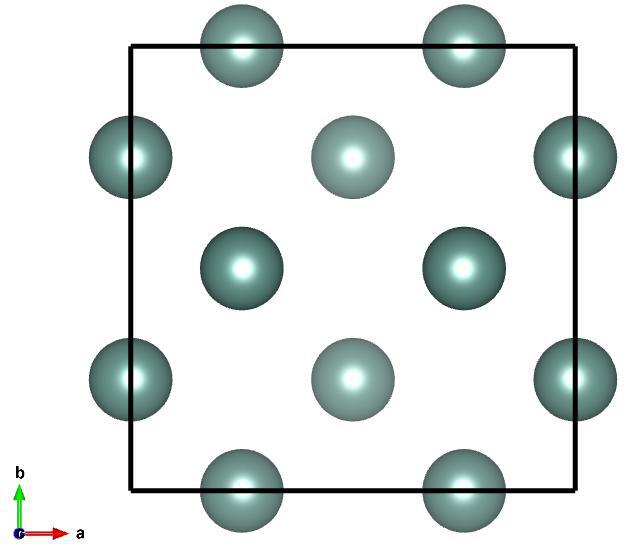

Image of tI8–YMn₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= -0.5783430911~\hat{x} + 0.5783430911~\hat{y} + 0.5753594859~\hat{z}\\ a_2 &= 0.5783430911~\hat{x} - 0.5783430911~\hat{y} + 0.5753594859~\hat{z}\\ a_3 &= 0.5783430911~\hat{x} + 0.5783430911~\hat{y} - 0.5753594859~\hat{z}\\\end{split}\]

Space Group: 141

Point Group of Structure: \(4/mmm\)

Structure DOI: https://doi.org/10.1088/0953-8984/3/33/023

Photonics DOI: Gap(s) for space group 141 above band 2 theorized in: https://doi.org/10.1103/PhysRevLett.121.263903

Source: Crystallographic Open Database #1524241

MPB Epsilon Input File: Download

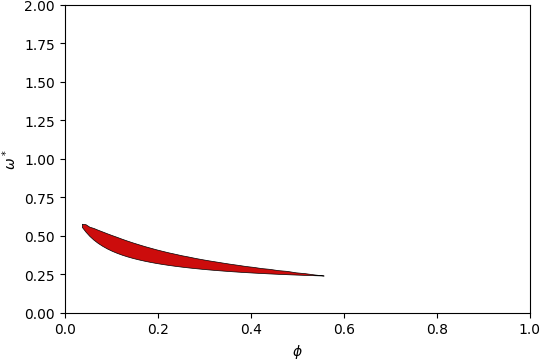

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

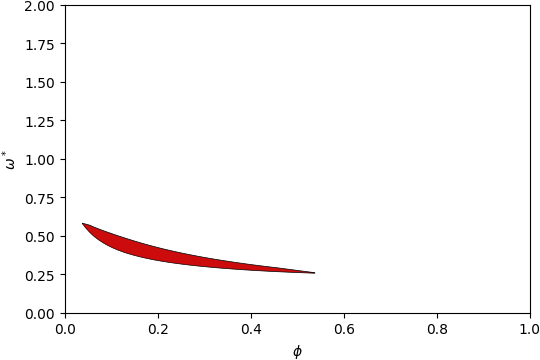

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

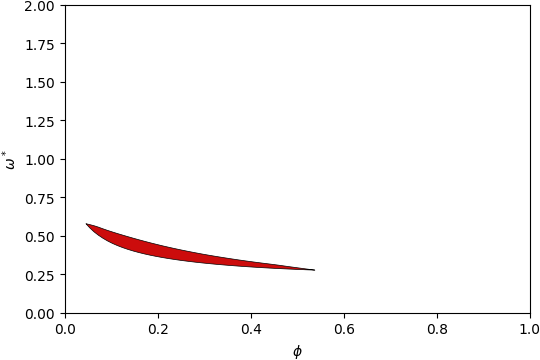

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

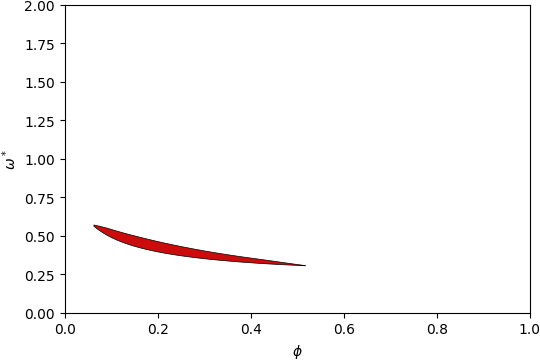

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

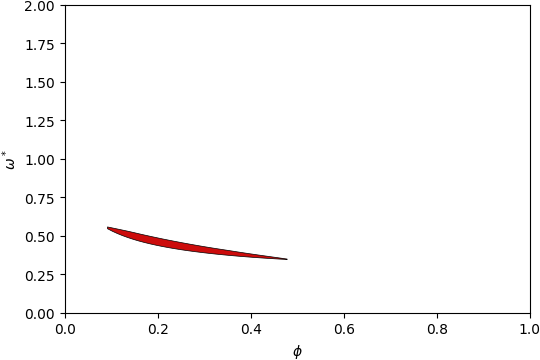

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 6\)

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

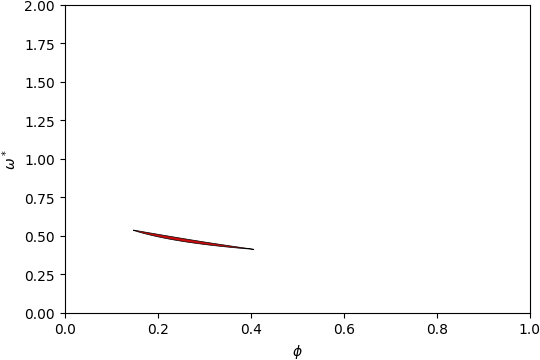

Gap Atlas for \(\varepsilon = 4\)

Gap Atlas for \(\varepsilon\) = 4 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 2-3

Below is the band structure and isosurface of tI8–YMn₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.4\) and filling fraction \(\phi = 0.16\).

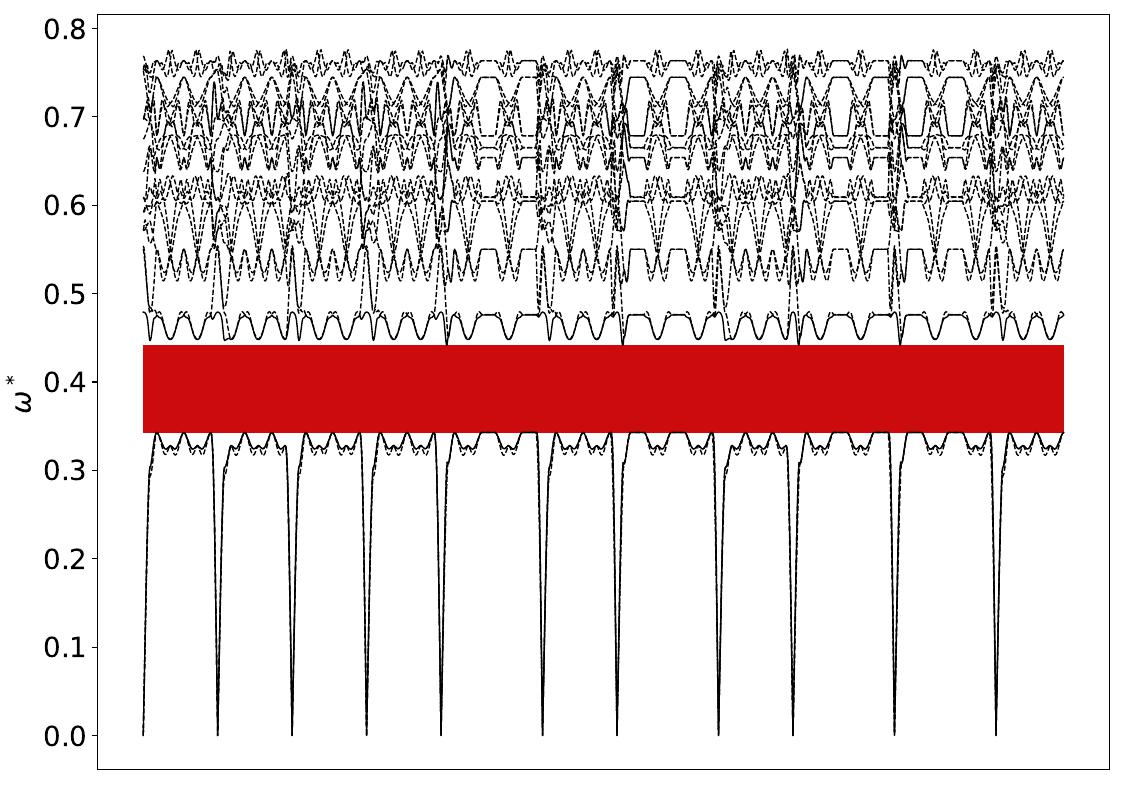

Band Structure across first Brillouin Zone.

View along \(a_1\).
