cF8-C (Inverse)¶

cF8–C (Inverse)¶

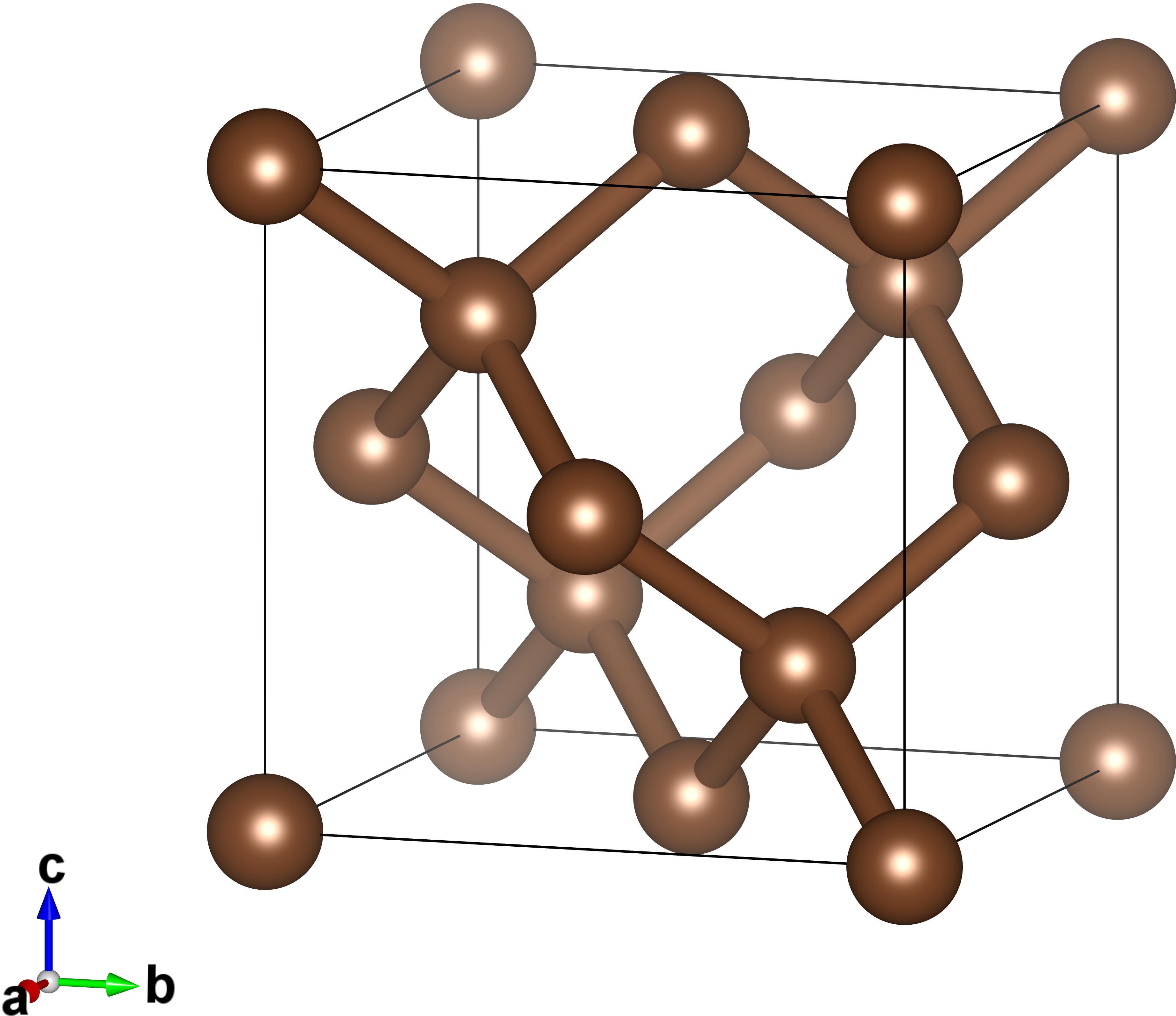

Image of cF8–C (Inverse), generated by Vesta¶

Lattice Vectors:

\[\begin{split}a_1 &= 1/\sqrt{2}~\hat{y} + 1/\sqrt{2}~\hat{z}\\ a_2 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{z}\\ a_3 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{y}\\\end{split}\]

Space Group: 227

Point Group of Structure: \(m\bar{3}m\)

Structure DOI: https://doi.org/10.1107/S0108768195010810

Photonics DOI: https://doi.org/10.1103/PhysRevLett.65.3152

Source: Inorganic Crystallographic Database #52054

MPB Epsilon Input File: Download

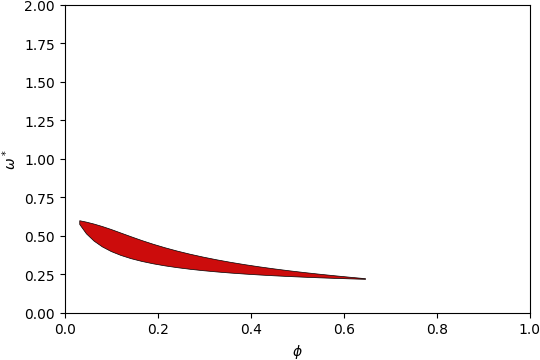

Gap Atlas for \(\varepsilon = 16\)¶

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).¶

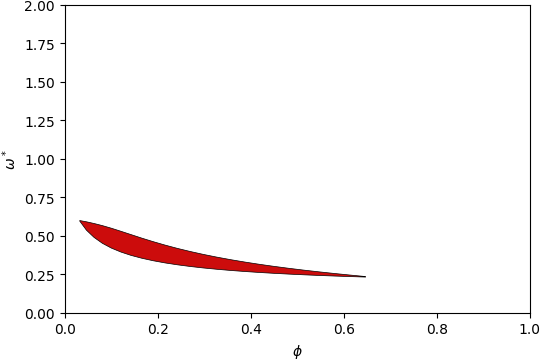

Gap Atlas for \(\varepsilon = 14\)¶

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).¶

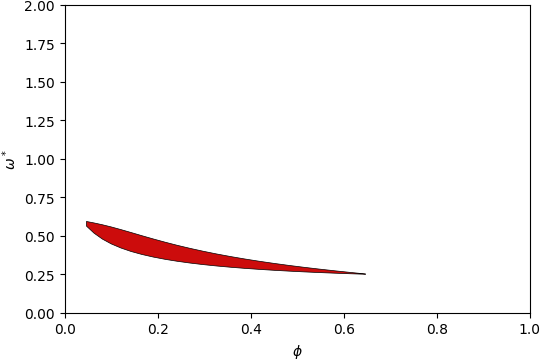

Gap Atlas for \(\varepsilon = 12\)¶

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).¶

Gap Atlas for \(\varepsilon = 10\)¶

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).¶

Gap Atlas for \(\varepsilon = 8\)¶

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).¶

Gap Atlas for \(\varepsilon = 6\)¶

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).¶

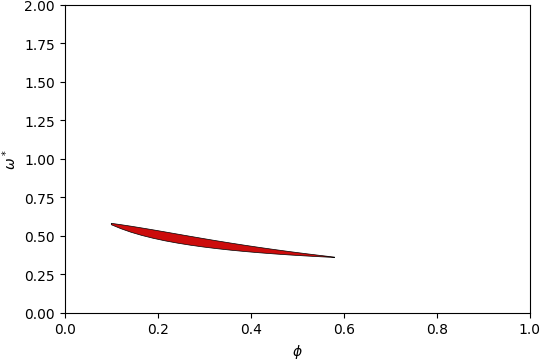

Gap Atlas for \(\varepsilon = 4\)¶

Gap Atlas for \(\varepsilon\) = 4 across filling fraction \(\phi\) and frequency \(\omega\).¶

Gap Atlas for \(\varepsilon = 2\)¶

Gap Atlas for \(\varepsilon\) = 2 across filling fraction \(\phi\) and frequency \(\omega\).¶

Gap between Bands 2-3¶

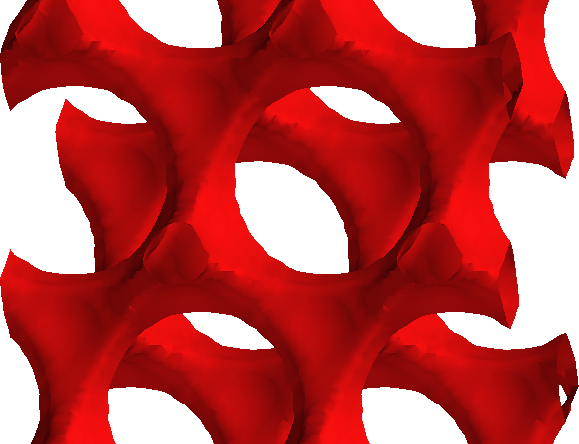

Below is the band structure and isosurface of cF8–C (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.47\) and filling fraction \(\phi = 0.167\).

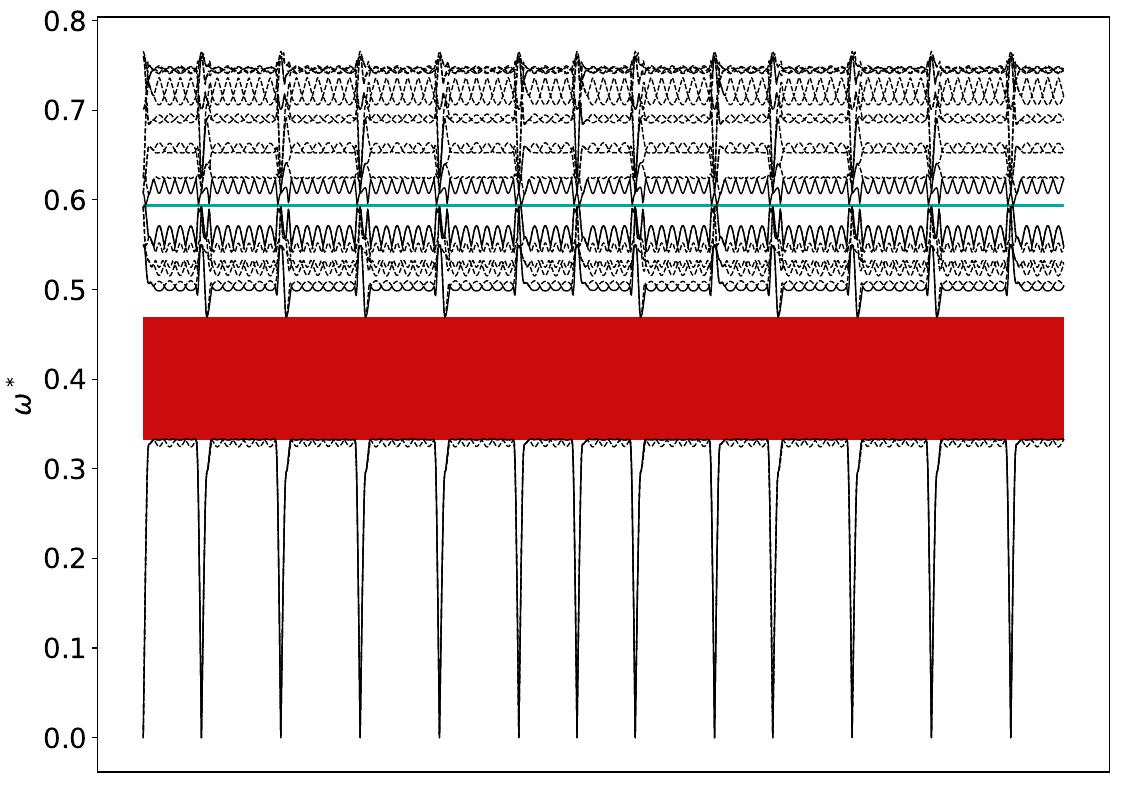

Band Structure across first Brillouin Zone.¶

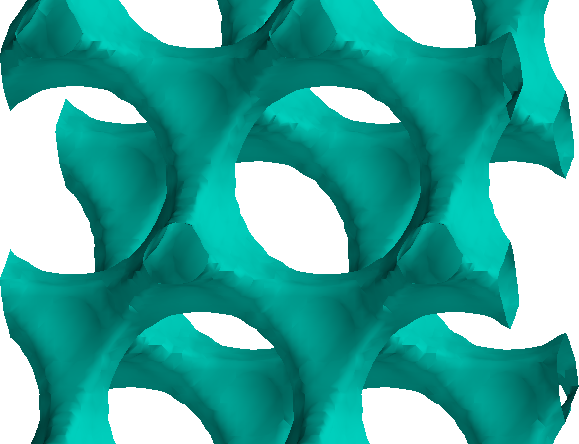

View along \(a_1\).¶

Gap between Bands 8-9¶
