cI36-NO2 (Inverse)

cI36–NO₂ (Inverse)

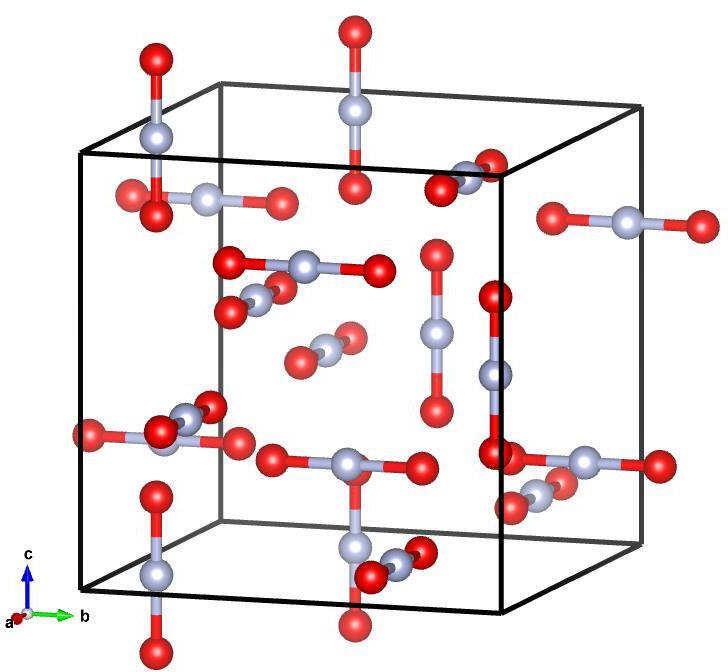

Image of cI36–NO₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= -1/\sqrt{3}~\hat{x} + 1/\sqrt{3}~\hat{y} + 1/\sqrt{3}~\hat{z}\\ a_2 &= 1/\sqrt{3}~\hat{x} - 1/\sqrt{3}~\hat{y} + 1/\sqrt{3}~\hat{z}\\ a_3 &= 1/\sqrt{3}~\hat{x} + 1/\sqrt{3}~\hat{y} - 1/\sqrt{3}~\hat{z}\\\end{split}\]

Space Group: 199

Point Group of Structure: \(23\)

Structure DOI: https://doi.org/10.1007/BF01390966

Photonics DOI: Gap(s) for space group 199 above band 2 theorized in: https://doi.org/10.1103/PhysRevLett.121.263903

Source: Crystallographic Open Database #1010516

MPB Epsilon Input File: Download

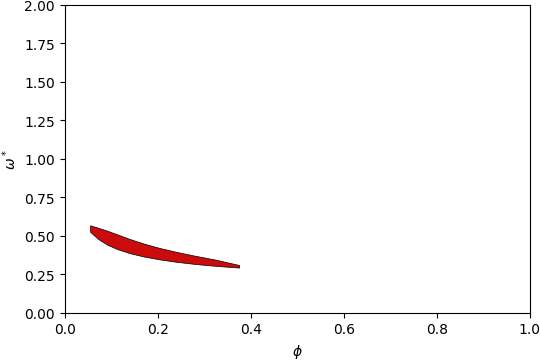

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

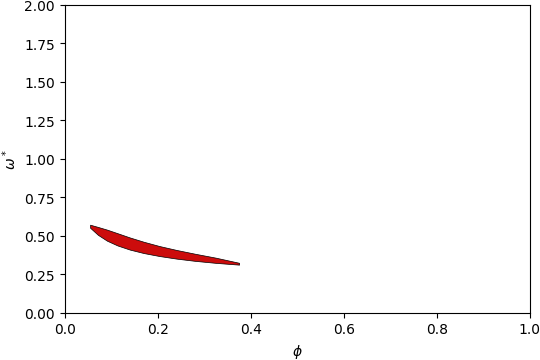

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

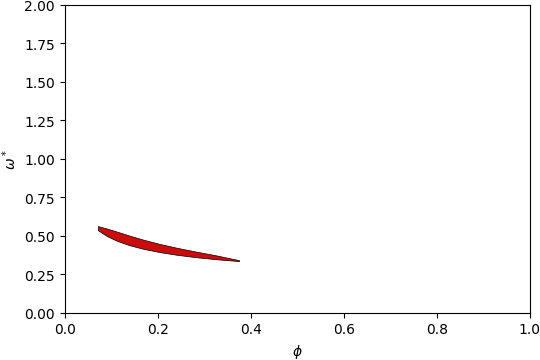

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

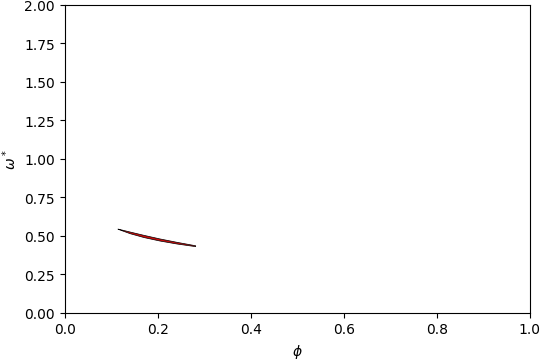

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 6\)

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 2-3

Below is the band structure and isosurface of cI36–NO₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.27\) and filling fraction \(\phi = 0.141\).

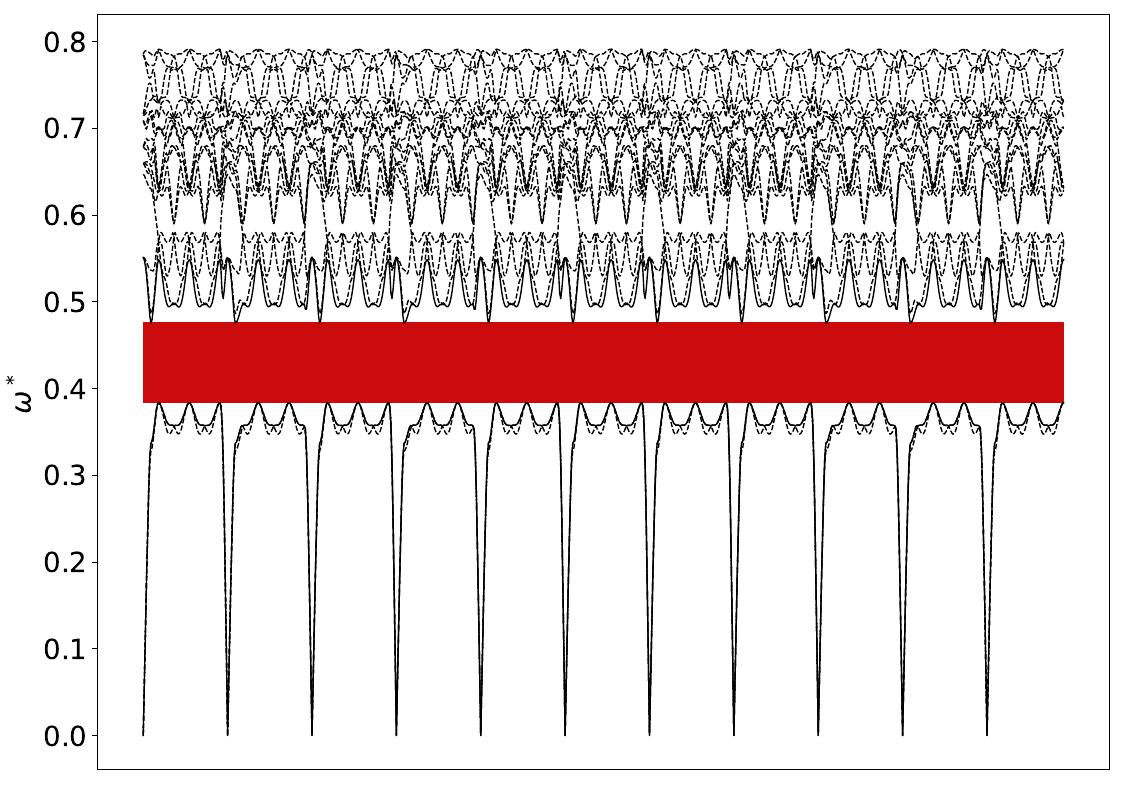

Band Structure across first Brillouin Zone.

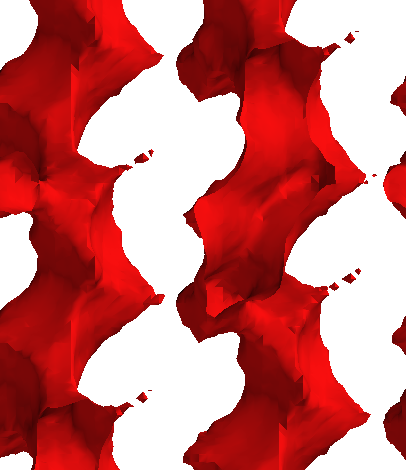

View along \(a_1\).
