hP3-SnS2 (Direct)

hP3–SnS₂ (Direct)

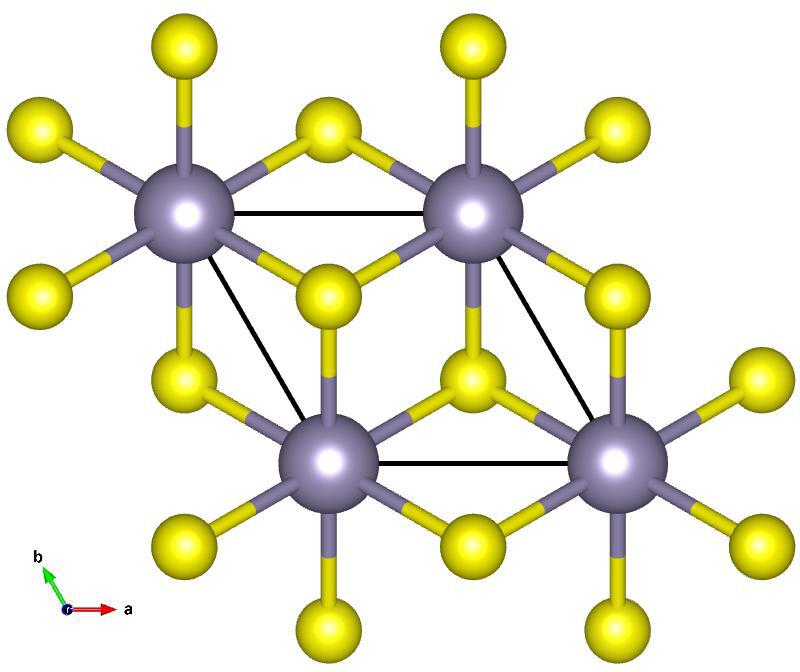

Image of hP3–SnS₂ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= -1/2~\hat{x} + \sqrt{3}/\sqrt{4}~\hat{y}\\ a_3 &= 1.6160221026~\hat{z}\\\end{split}\]

Space Group: 164

Point Group of Structure: \(\bar{3}m\)

Structure DOI: https://doi.org/10.17188/1188293

Source: Crystallographic Open Database #1011330

MPB Epsilon Input File: Download

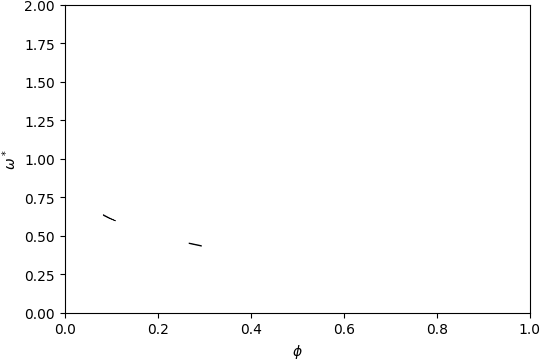

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 11-12

Below is the band structure and isosurface of hP3–SnS₂ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.32\) and filling fraction \(\phi = 0.294\).

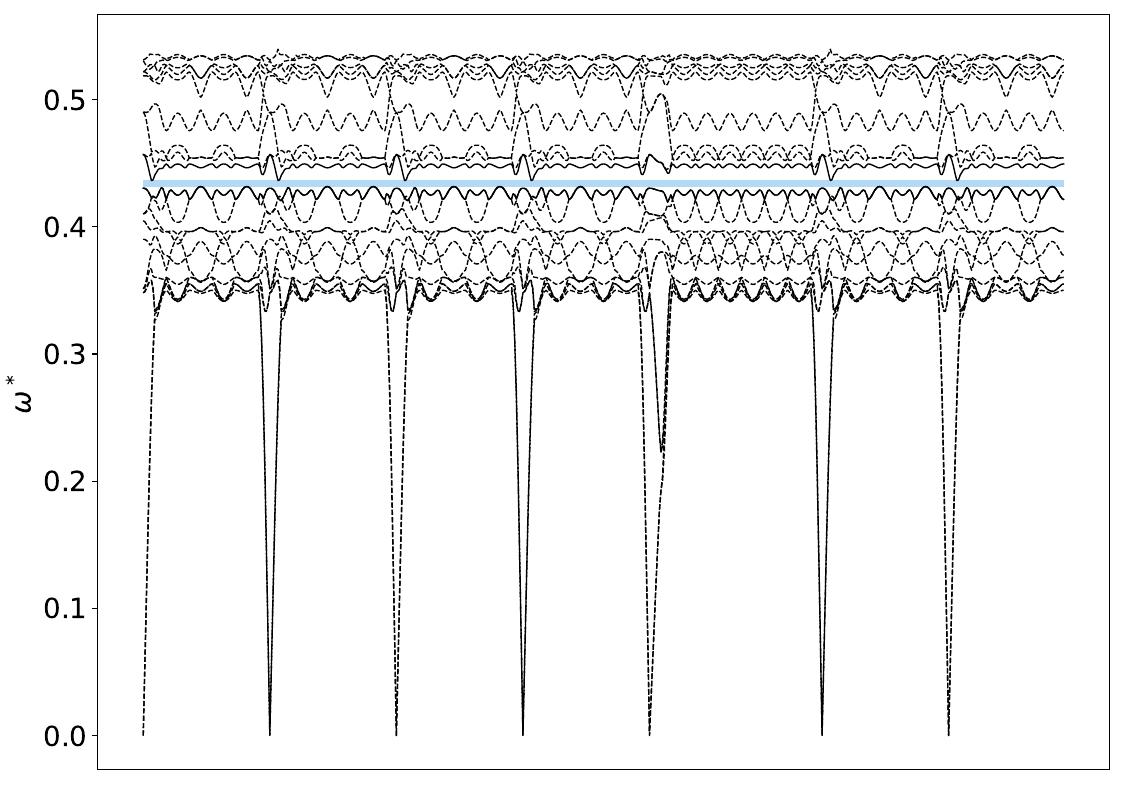

Band Structure across first Brillouin Zone.

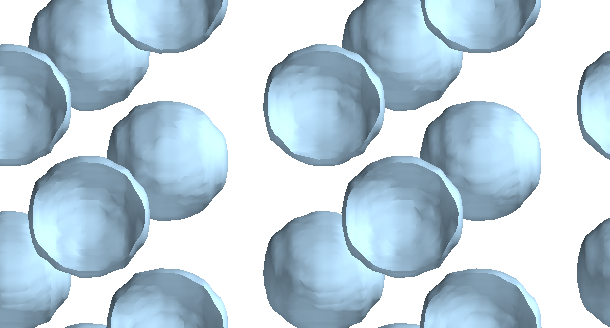

View along \(a_1\).

Gap between Bands 13-14

Below is the band structure and isosurface of hP3–SnS₂ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.21\) and filling fraction \(\phi = 0.083\).

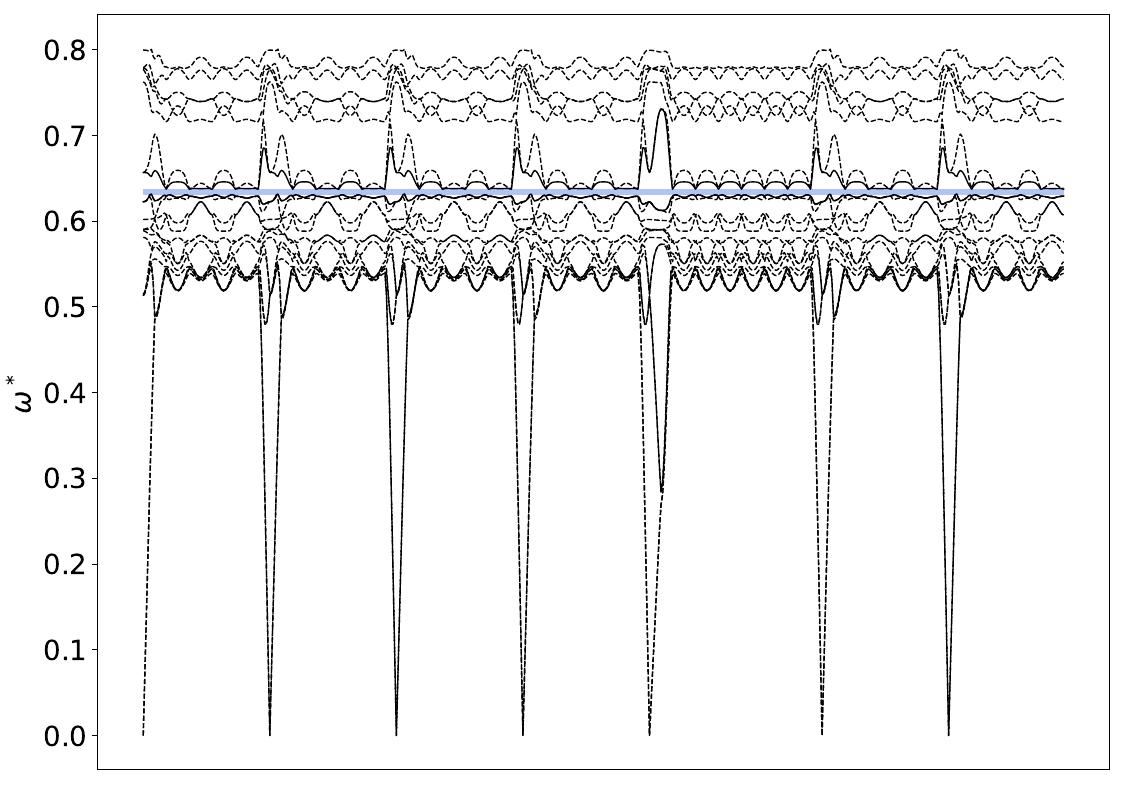

Band Structure across first Brillouin Zone.

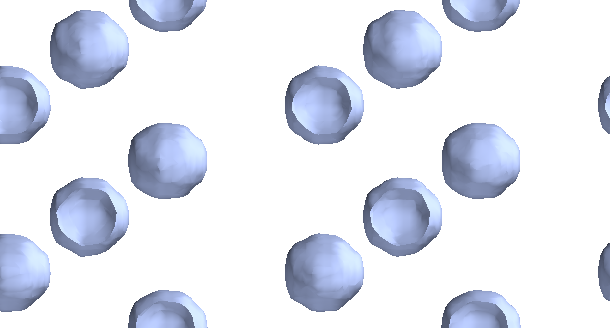

View along \(a_1\).
