cI16-Si (Inverse)

cI16–Si (Inverse)

../_images/structure244.jpg

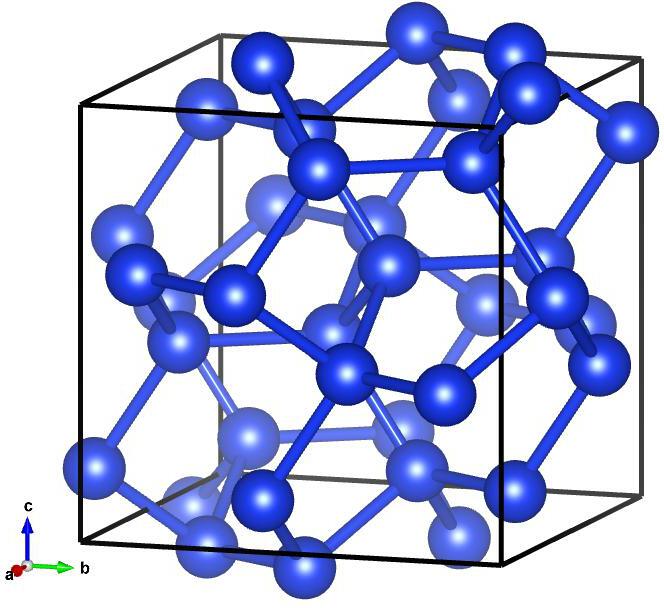

Image of cI16–Si (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= -1/\sqrt{3}~\hat{x} + 1/\sqrt{3}~\hat{y} + 1/\sqrt{3}~\hat{z}\\ a_2 &= 1/\sqrt{3}~\hat{x} - 1/\sqrt{3}~\hat{y} + 1/\sqrt{3}~\hat{z}\\ a_3 &= 1/\sqrt{3}~\hat{x} + 1/\sqrt{3}~\hat{y} - 1/\sqrt{3}~\hat{z}\\\end{split}\]

Space Group: 206

Point Group of Structure: \(m\bar{3}\)

Structure DOI: https://doi.org/10.1107/S0365110X64001840

Source: Inorganic Crystallographic Database #16569

MPB Epsilon Input File: Download

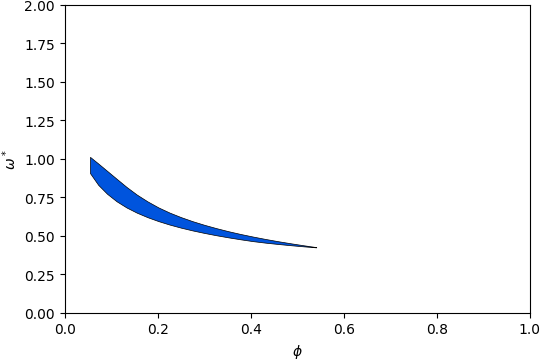

Gap Atlas for \(\varepsilon = 16\)

../_images/gap_atlas-16241.png

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

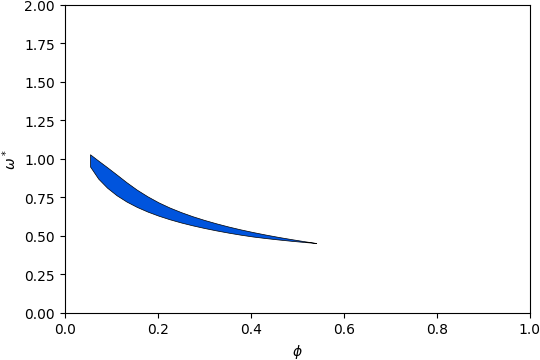

Gap Atlas for \(\varepsilon = 14\)

../_images/gap_atlas-14241.png

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

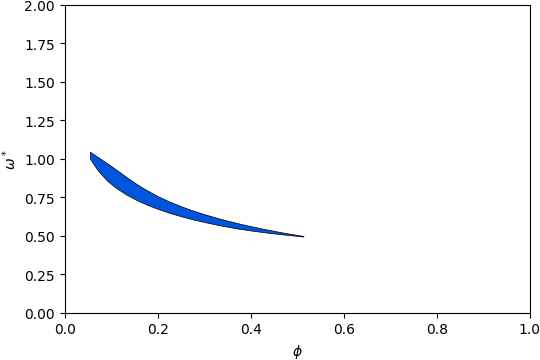

Gap Atlas for \(\varepsilon = 12\)

../_images/gap_atlas-12201.png

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

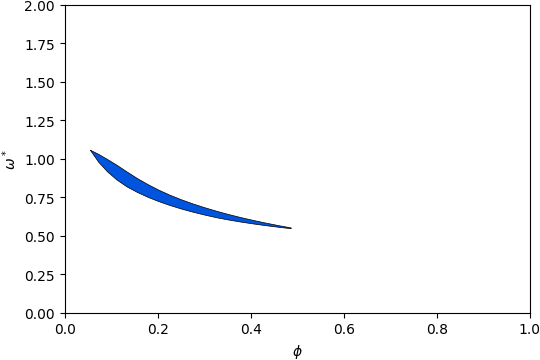

Gap Atlas for \(\varepsilon = 10\)

../_images/gap_atlas-10158.png

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

../_images/gap_atlas-8100.png

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

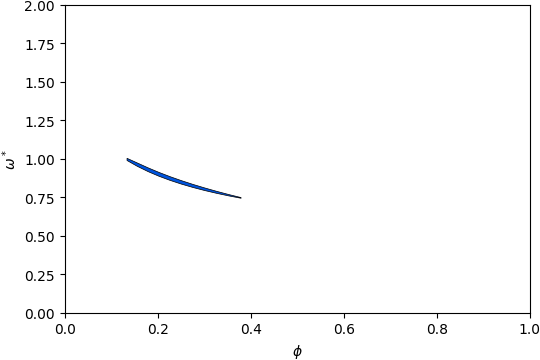

Gap Atlas for \(\varepsilon = 6\)

../_images/gap_atlas-654.png

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 4\)

../_images/gap_atlas-436.png

Gap Atlas for \(\varepsilon\) = 4 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of cI16–Si (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.305\) and filling fraction \(\phi = 0.292\).

../_images/band_diagram_b=1230.jpg

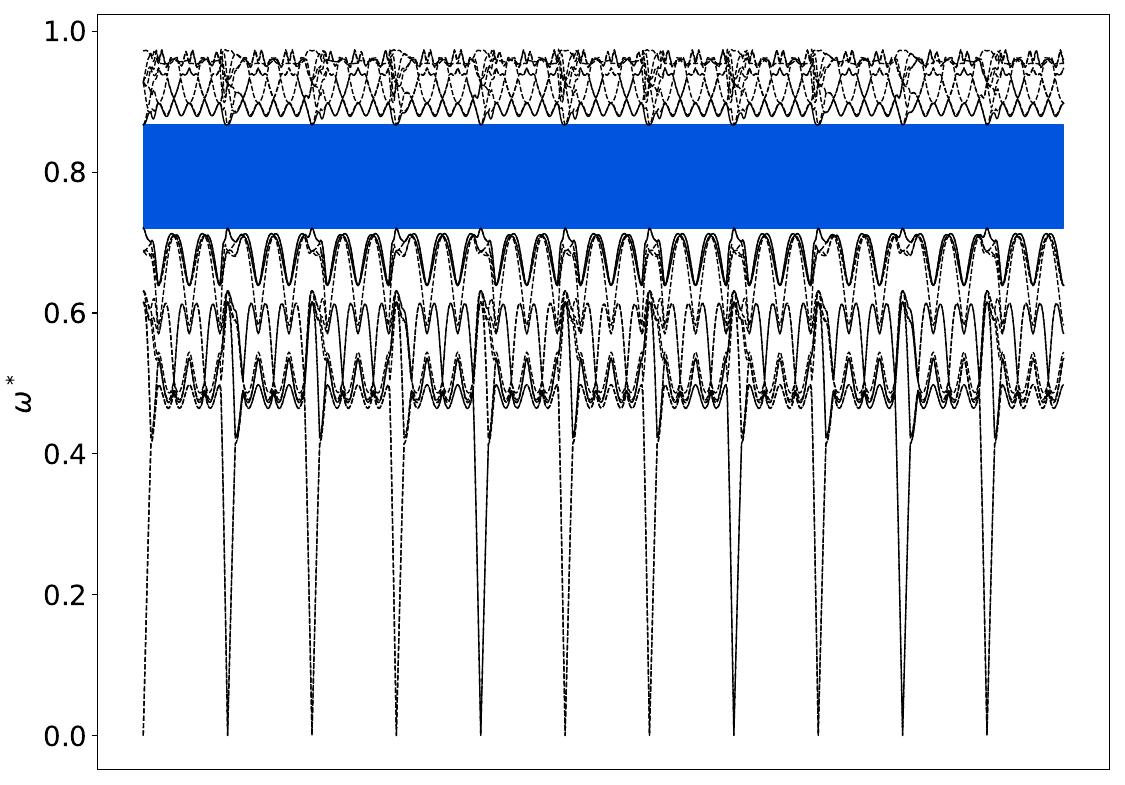

Band Structure across first Brillouin Zone.

../_images/cI16-Si_r@gap_12-13.png

View along \(a_1\).
