mP24-SiO2 (Direct)

mP24–SiO₂ (Direct)

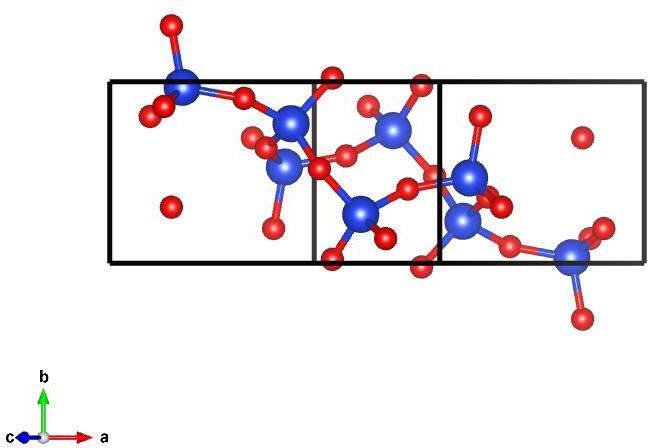

Image of mP24–SiO₂ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.5493679512424072~\hat{y}\\ a_3 &= -0.6192893815130248~\hat{x} + 0.8864439445037495~\hat{z}\\\end{split}\]

Space Group: 14

Point Group of Structure: \(2/m\)

Structure DOI: https://doi.org/10.1180/002646100549436

Source: Inorganic Crystallographic Database #91737

MPB Epsilon Input File: Download

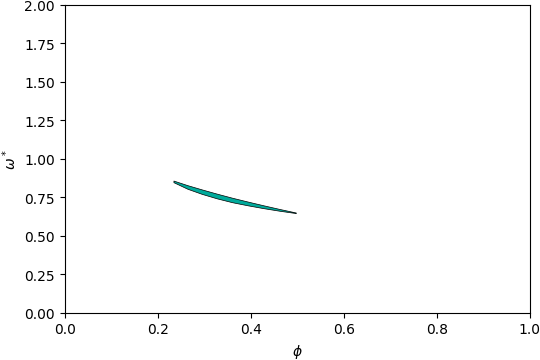

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

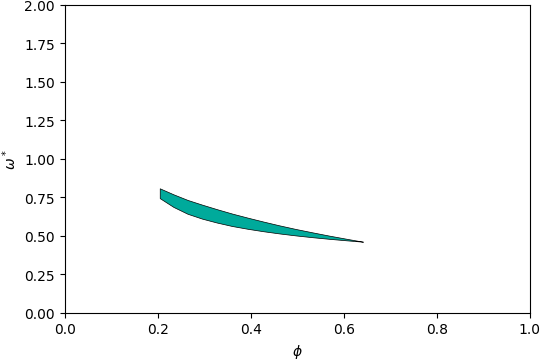

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

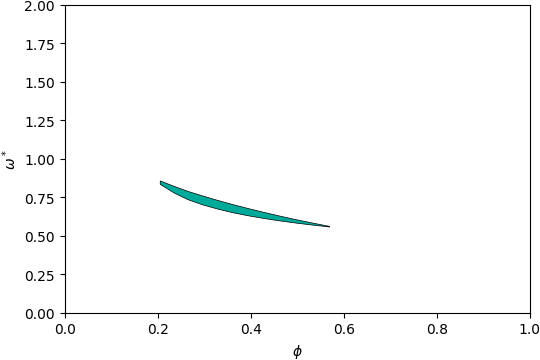

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

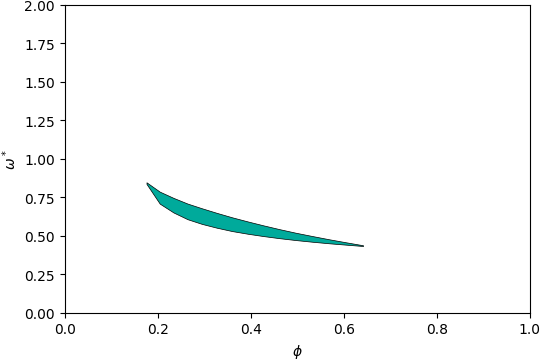

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 6\)

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 8-9

Below is the band structure and isosurface of mP24–SiO₂ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.115\) and filling fraction \(\phi = 0.15\).

Band Structure across first Brillouin Zone.

View along \(a_1\).
