mP288-SiO2 (Inverse)

mP288–SiO₂ (Inverse)

Image of mP288–SiO₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 1.5038858202~\hat{y}\\ a_3 &= -0.0141895792~\hat{x} + 1.4862571381~\hat{z}\\\end{split}\]

Space Group: 14

Point Group of Structure: \(2/m\)

Structure DOI: https://doi.org/10.1021/jp075934p

Source: Crystallographic Open Database #1505106

MPB Epsilon Input File: Download

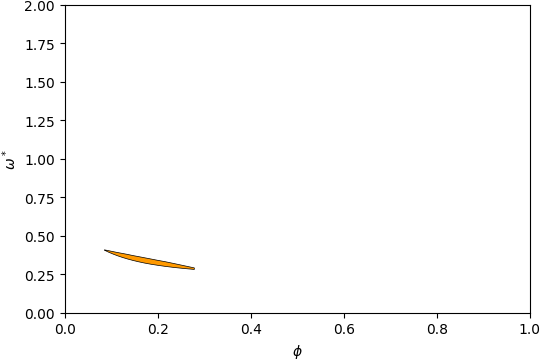

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

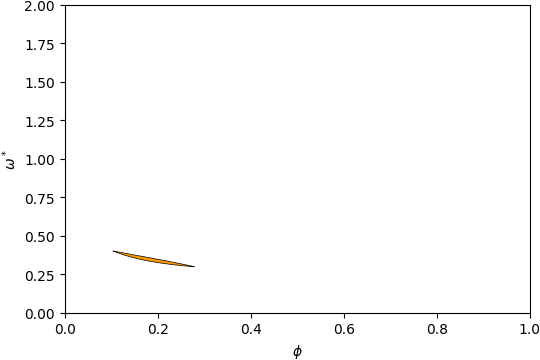

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

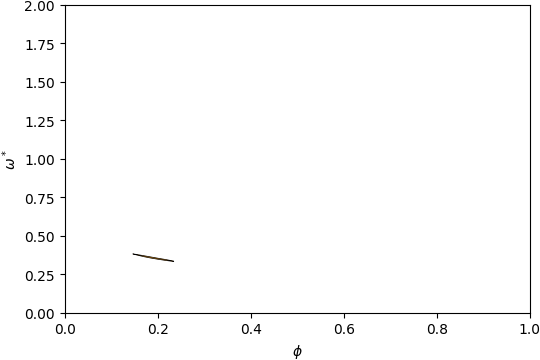

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

Below is the band structure and isosurface of mP288–SiO₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.175\) and filling fraction \(\phi = 0.185\).

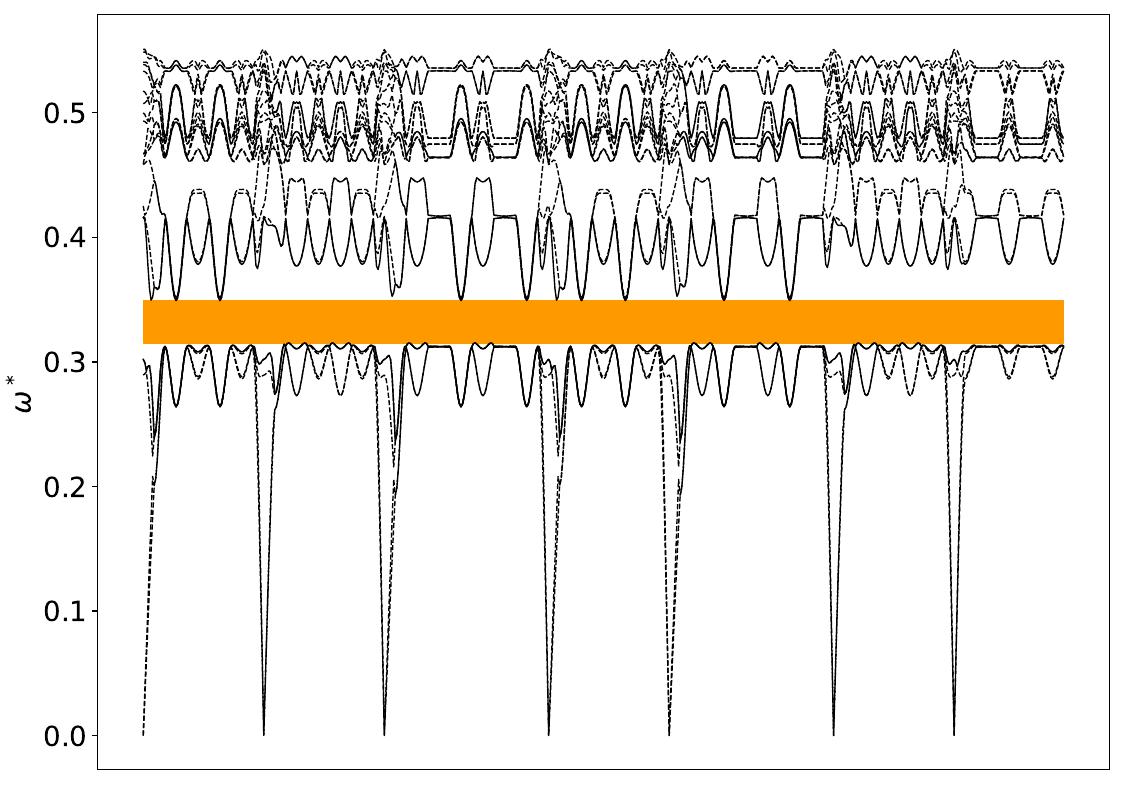

Band Structure across first Brillouin Zone.

View along \(a_1\).
