oC40-Pb2O3 (Inverse)

oC40–Pb₂O₃ (Inverse)

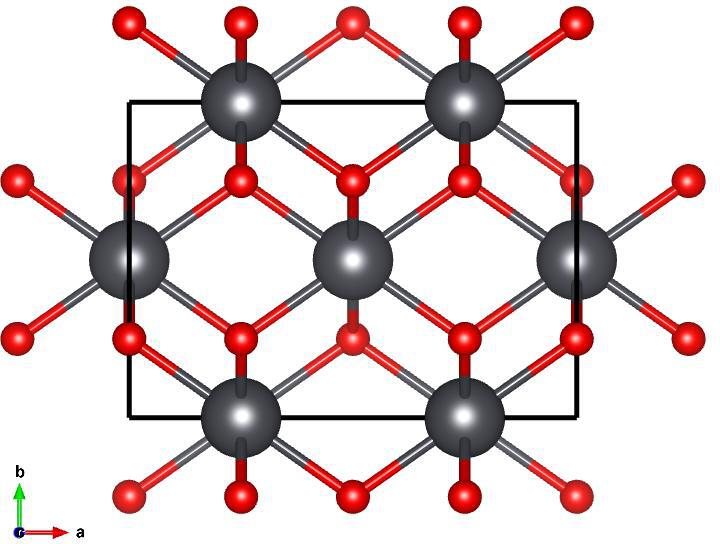

Image of oC40–Pb₂O₃ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.7056554785~\hat{y}\\ a_3 &= 0.9820050977~\hat{z}\\\end{split}\]

Space Group: 67

Point Group of Structure: \(mmm\)

Structure DOI: https://doi.org/10.17188/1195107

Source: Inorganic Crystallographic Database #36295

MPB Epsilon Input File: Download

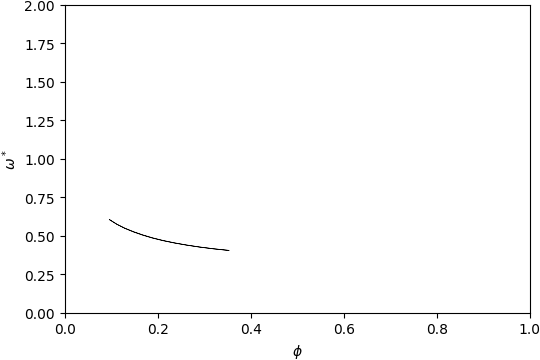

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

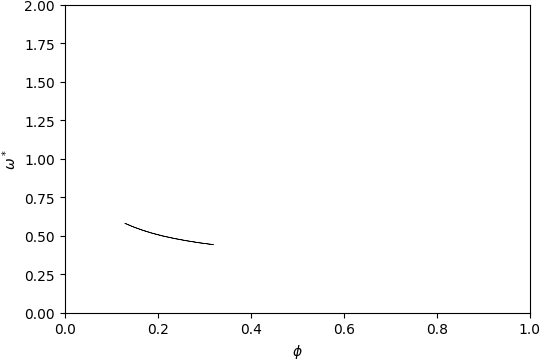

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

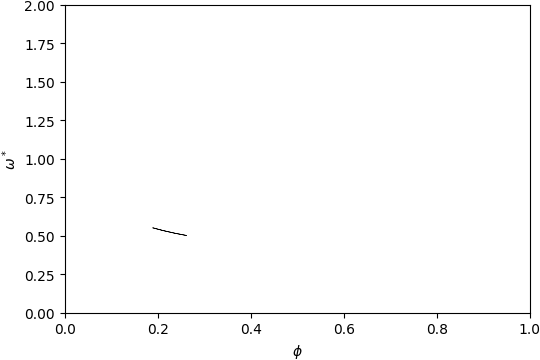

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

Below is the band structure and isosurface of oC40–Pb₂O₃ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.215\) and filling fraction \(\phi = 0.168\).

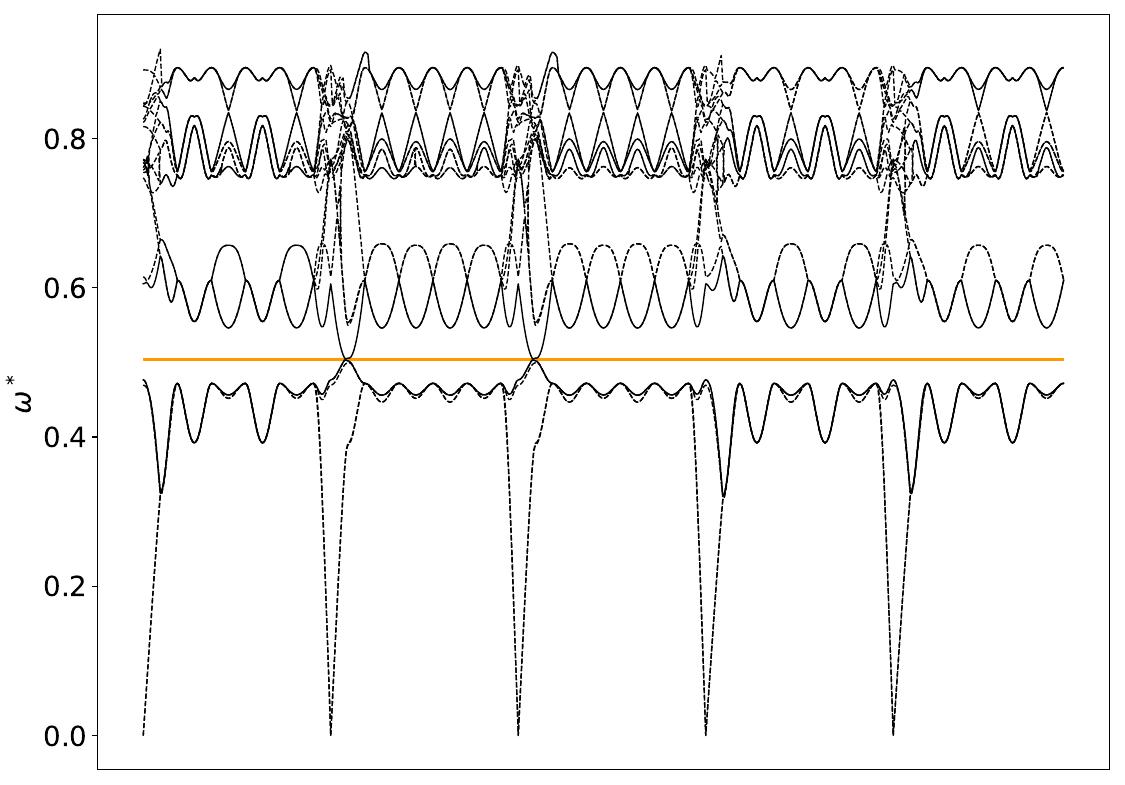

Band Structure across first Brillouin Zone.

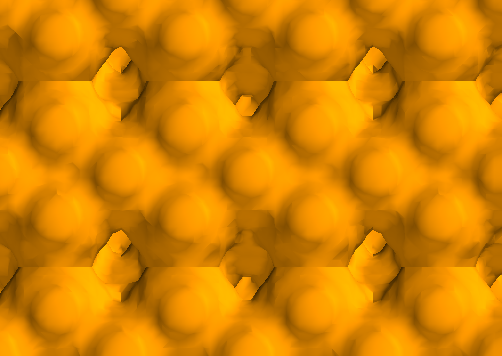

View along \(a_1\).
