hR2-C (Direct)

hR2–C (Direct)

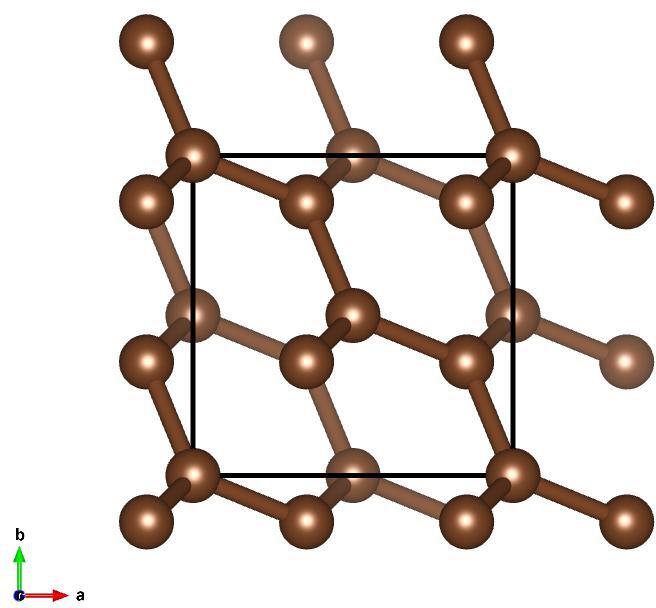

Image of hR2–C (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 1/2~\hat{x} + \sqrt{3}/6~\hat{y} + \sqrt{2}/\sqrt{3}~\hat{z}\\ a_2 &= -1/2~\hat{x} + \sqrt{3}/6~\hat{y} + \sqrt{2}/\sqrt{3}~\hat{z}\\ a_3 &= -1/\sqrt{3}~\hat{y} + \sqrt{2}/\sqrt{3}~\hat{z}\\\end{split}\]

Space Group: 166

Point Group of Structure: \(\bar{3}m\)

Structure DOI: https://doi.org/10.1088/1367-2630/8/5/062

Source: Inorganic Crystallographic Database #157074

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

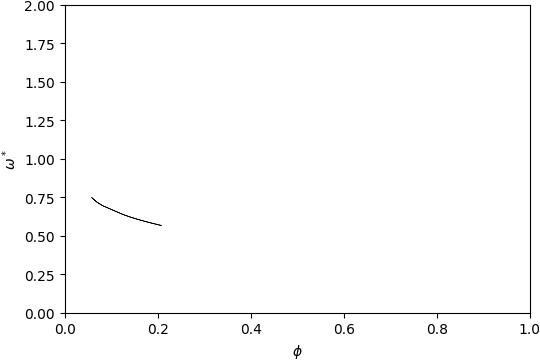

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

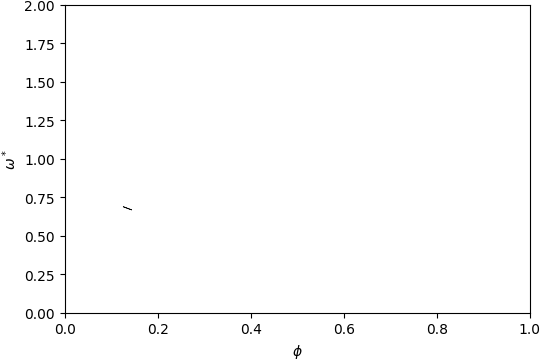

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 8-9

Below is the band structure and isosurface of hR2–C (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.17\) and filling fraction \(\phi = 0.058\).

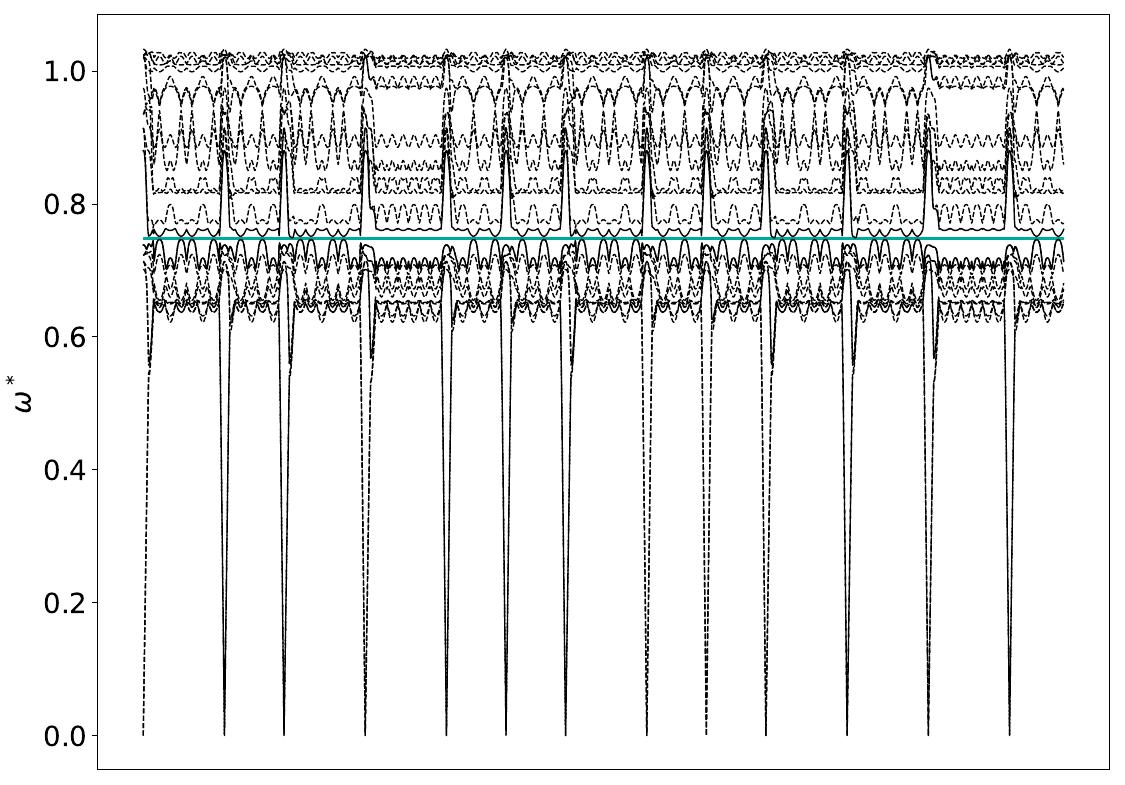

Band Structure across first Brillouin Zone.

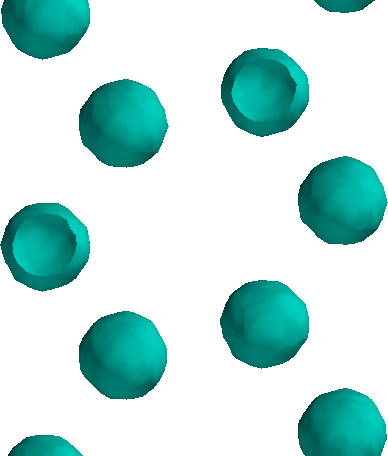

View along \(a_1\).
