tP16-HO (Direct)

tP16–HO (Direct)

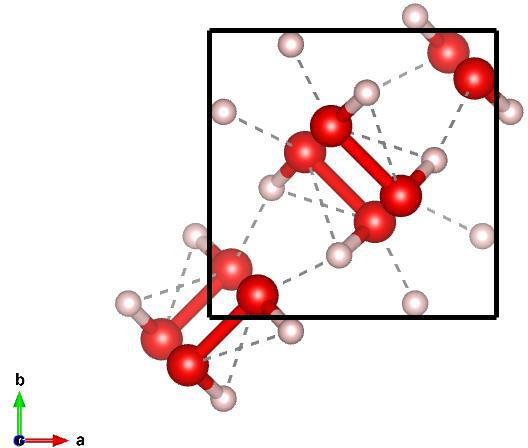

Image of tP16–HO (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= 1.9560438095~\hat{z}\\\end{split}\]

Space Group: 92

Point Group of Structure: \(422\)

Structure DOI: https://doi.org/10.1021/ja00524a012

Source: Inorganic Crystallographic Database #41532

MPB Epsilon Input File: Download

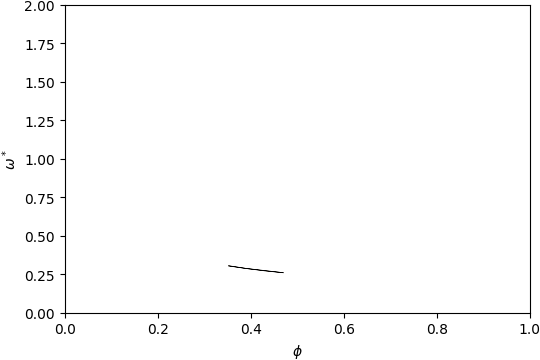

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

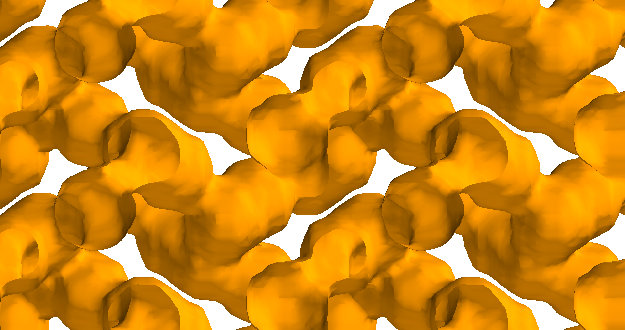

Below is the band structure and isosurface of tP16–HO (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.25\) and filling fraction \(\phi = 0.352\).

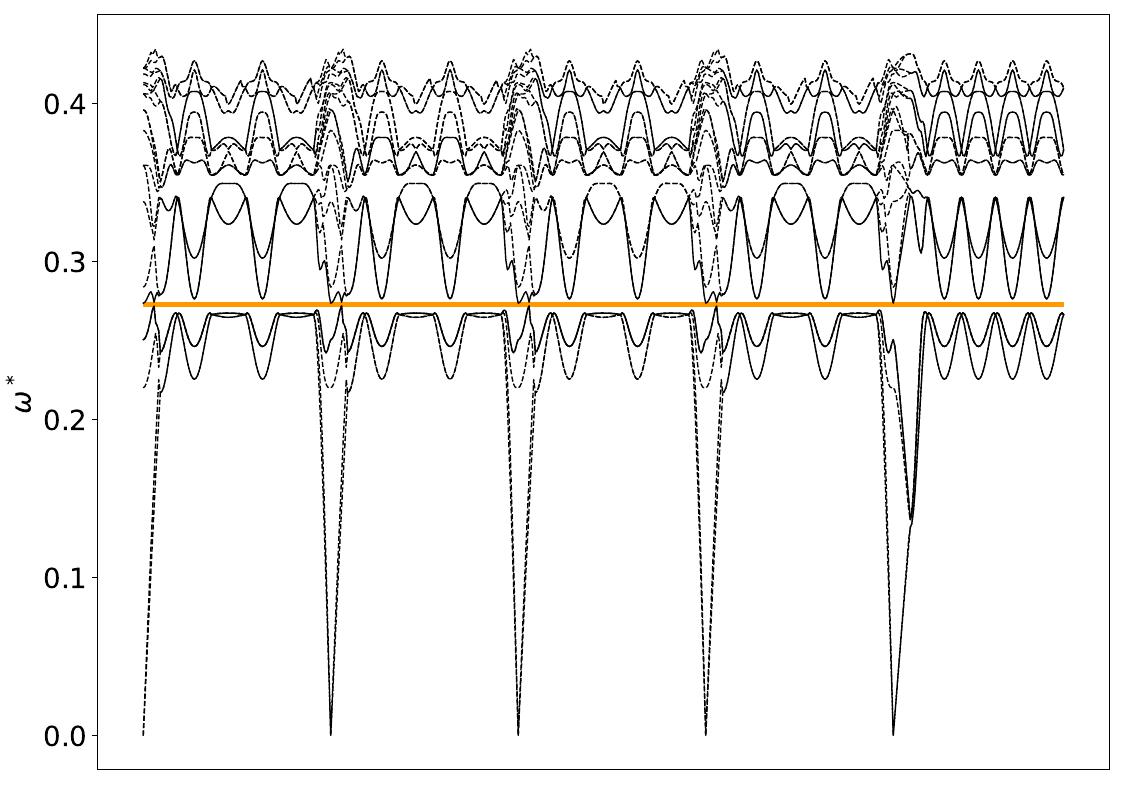

Band Structure across first Brillouin Zone.

View along \(a_1\).
