hR8-ZrCoF6 (Inverse)

hR8–ZrCoF₆ (Inverse)

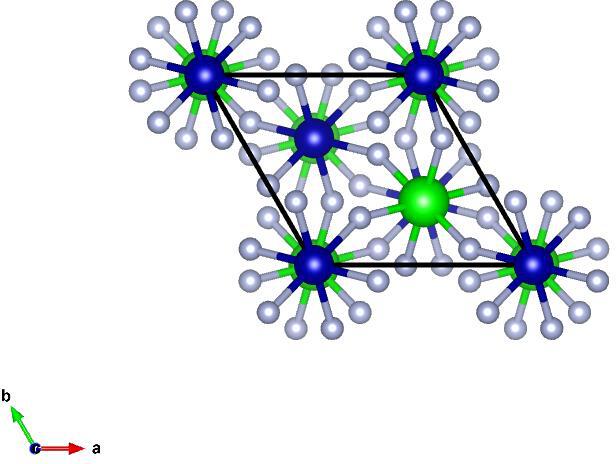

Image of hR8–ZrCoF₆ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 0.4855579958~\hat{x} + 0.2803370396~\hat{y} + 0.8280365795~\hat{z}\\ a_2 &= -0.4855579958~\hat{x} + 0.2803370396~\hat{y} + 0.8280365795~\hat{z}\\ a_3 &= -0.5606740792~\hat{y} + 0.8280365795~\hat{z}\\\end{split}\]

Space Group: 167

Point Group of Structure: \(\bar{3}m\)

Structure DOI: https://doi.org/10.1088/0953-8984/2/36/001

Source: Crystallographic Open Database #1008794

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

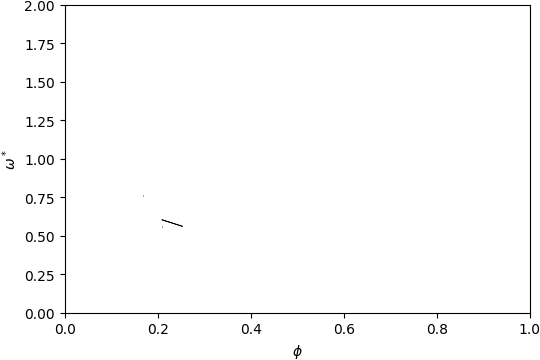

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 8-9

Below is the band structure and isosurface of hR8–ZrCoF₆ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.28\) and filling fraction \(\phi = 0.209\).

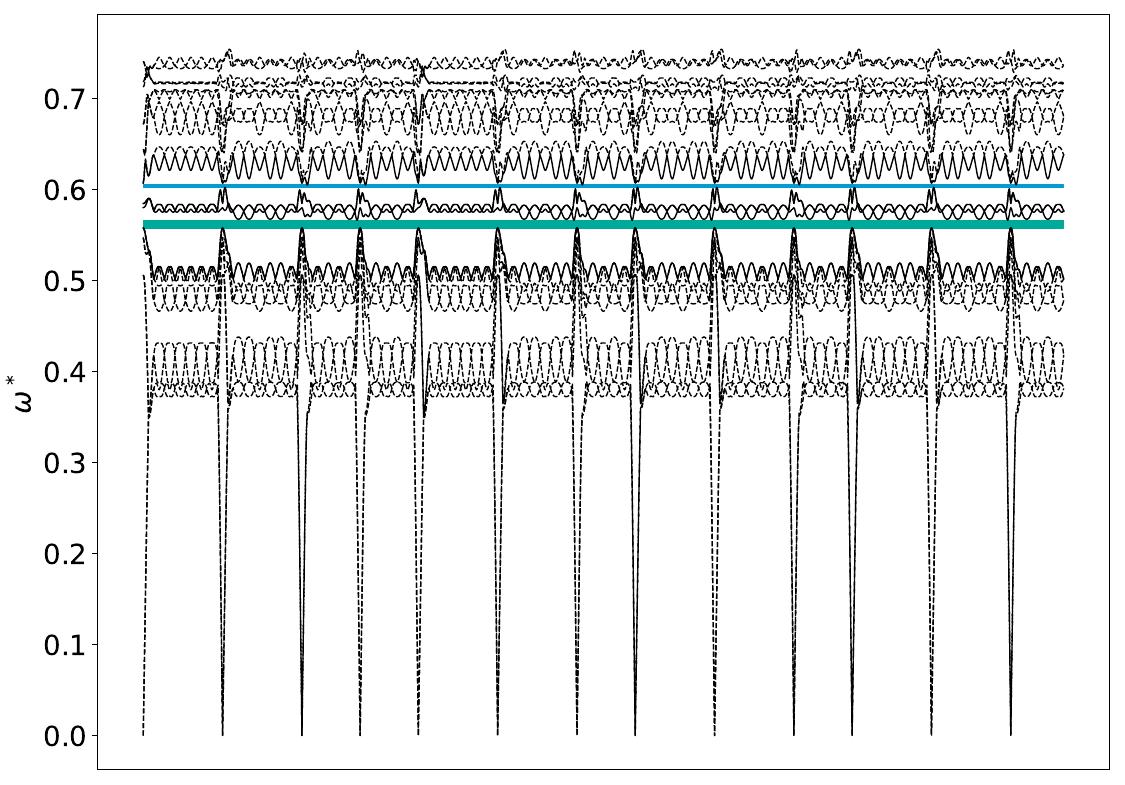

Band Structure across first Brillouin Zone.

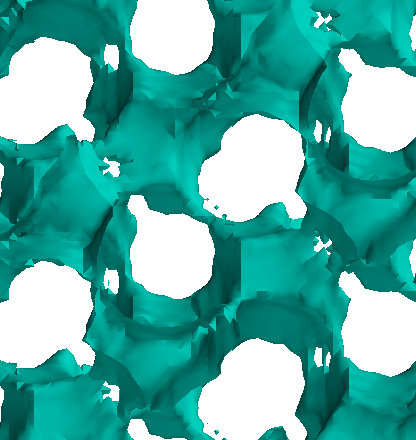

View along \(a_1\).

Gap between Bands 10-11

Below is the band structure and isosurface of hR8–ZrCoF₆ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.28\) and filling fraction \(\phi = 0.209\).

Band Structure across first Brillouin Zone.

View along \(a_1\).

Gap between Bands 16-17

Below is the band structure and isosurface of hR8–ZrCoF₆ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.29\) and filling fraction \(\phi = 0.168\).

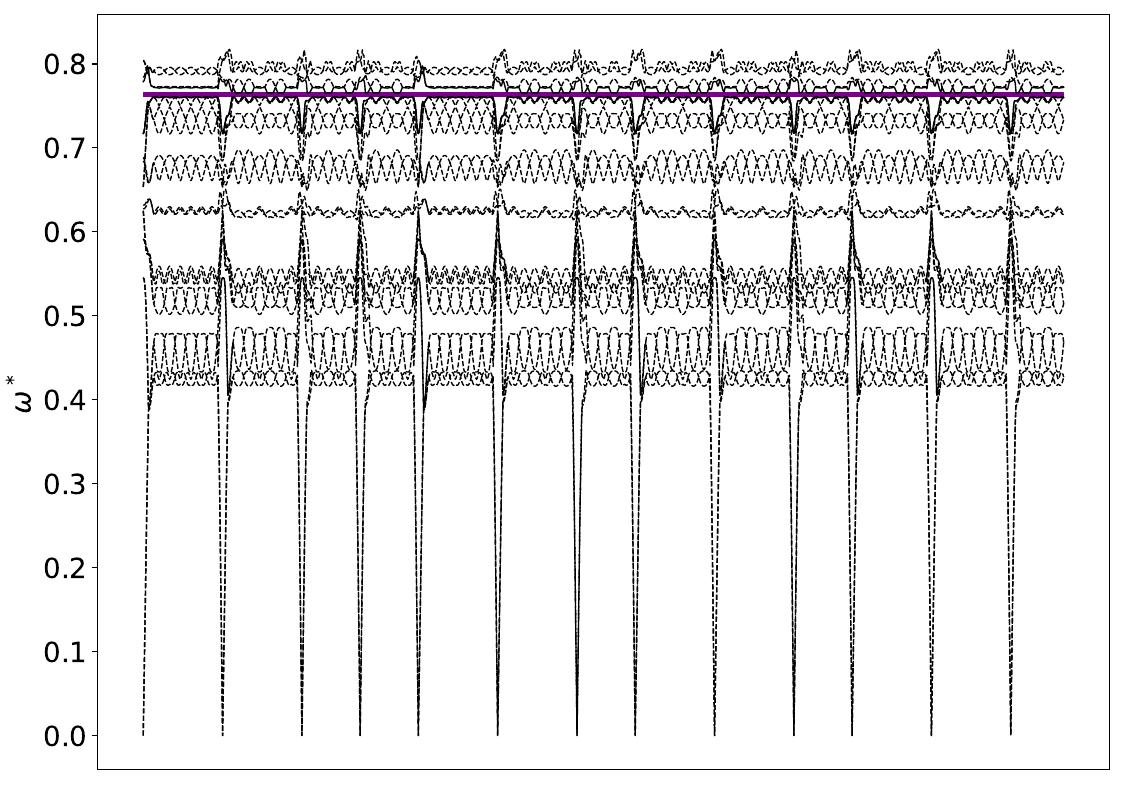

Band Structure across first Brillouin Zone.

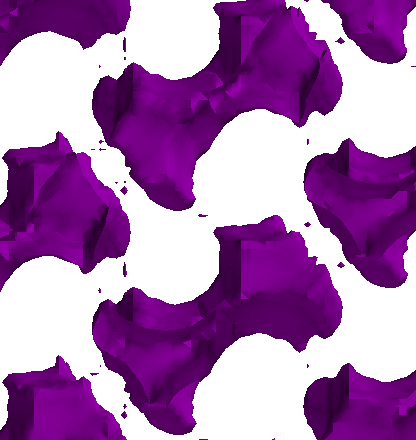

View along \(a_1\).
