tP4-PtS (Inverse)

tP4–PtS (Inverse)

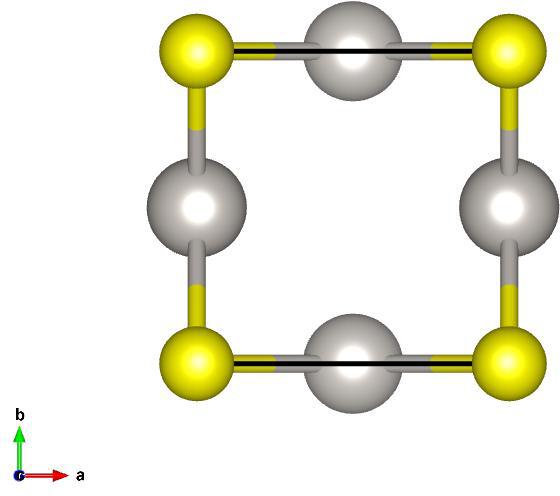

Image of tP4–PtS (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= 1.7605256710408632~\hat{z}\\\end{split}\]

Space Group: 131

Point Group of Structure: \(4/mmm\)

Structure DOI: https://doi.org/10.3891/acta.chem.scand.20-0577

Source: Inorganic Crystallographic Database #649537

MPB Epsilon Input File: Download

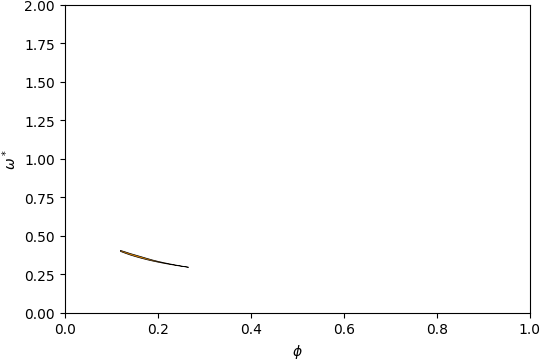

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

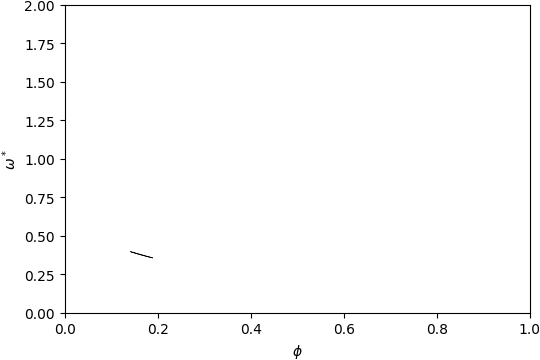

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

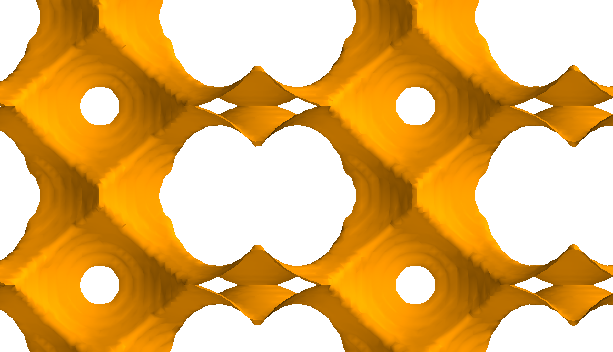

Below is the band structure and isosurface of tP4–PtS (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.505\) and filling fraction \(\phi = 0.153\).

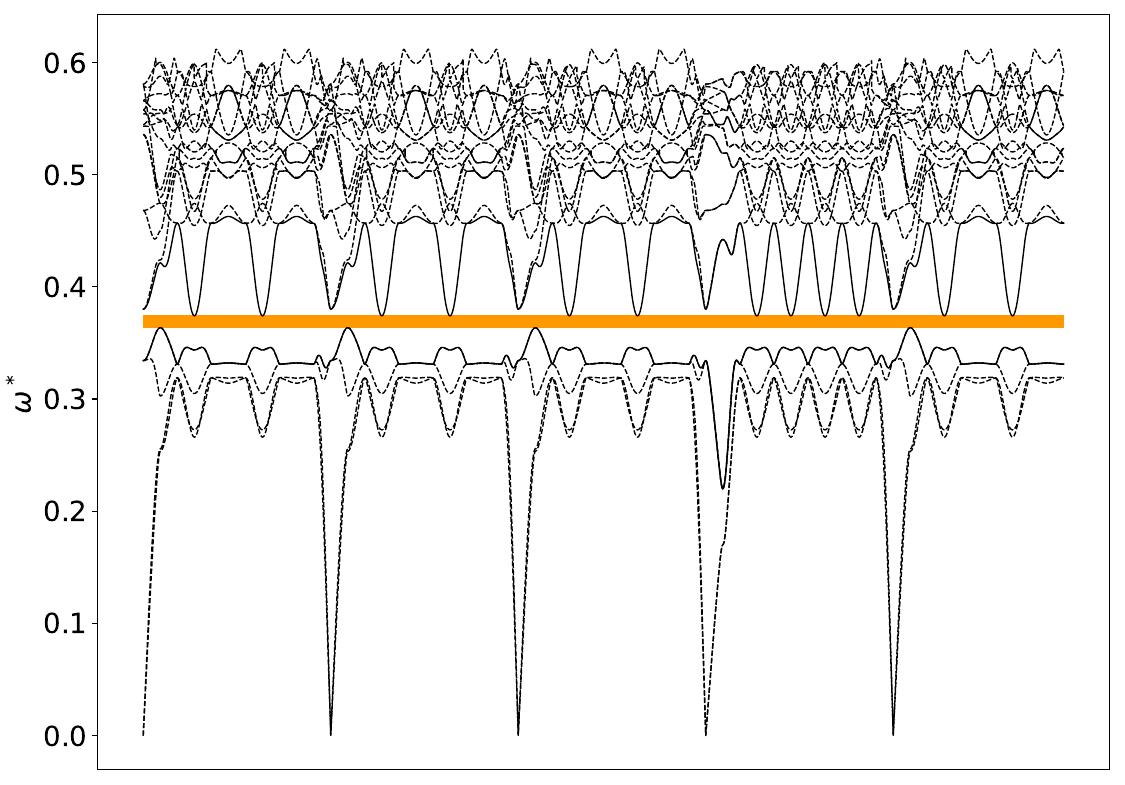

Band Structure across first Brillouin Zone.

View along \(a_1\).
