cF184-Cu8Sn3S12 (Inverse)

cF184–Cu₈Sn₃S₁₂ (Inverse)

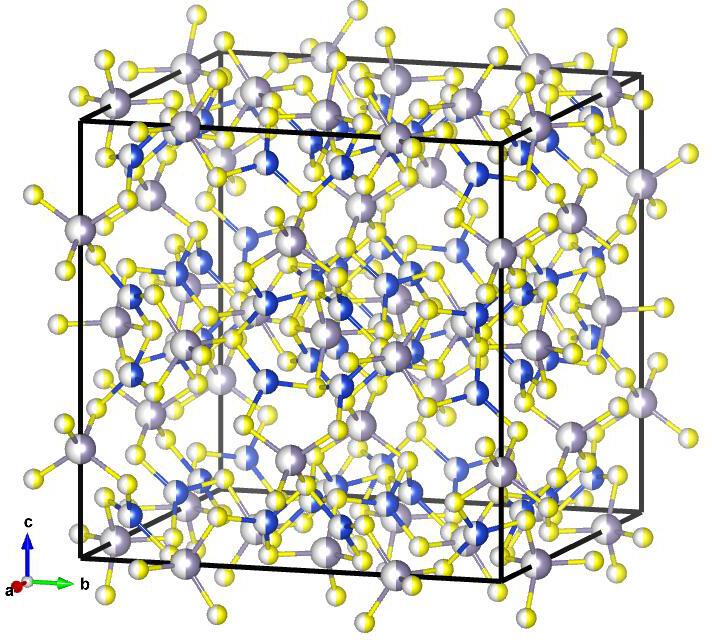

Image of cF184–Cu₈Sn₃S₁₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 1/\sqrt{2}~\hat{y} + 1/\sqrt{2}~\hat{z}\\ a_2 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{z}\\ a_3 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{y}\\\end{split}\]

Space Group: 226

Point Group of Structure: \(m\bar{3}m\)

Structure DOI: https://doi.org/10.1021/acs.inorgchem.6b02012

Photonics DOI: Gap(s) for space group 226 theorized to not exist in: https://doi.org/10.1038/nmat979

Source: Crystallographic Open Database #4345120

MPB Epsilon Input File: Download

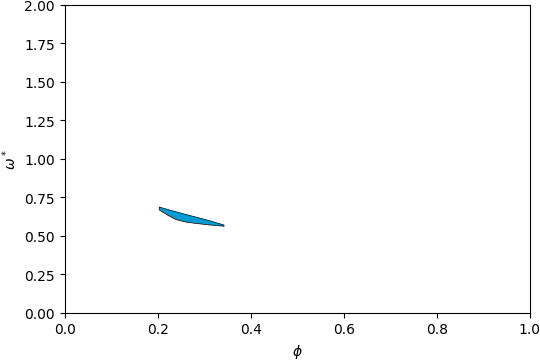

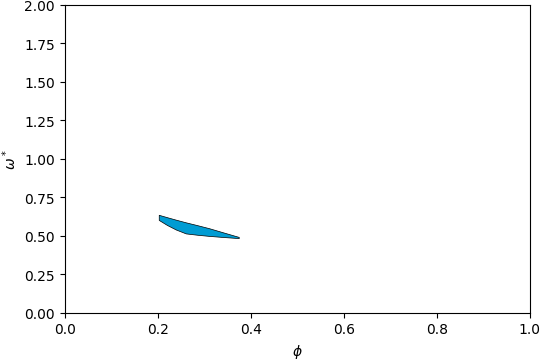

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

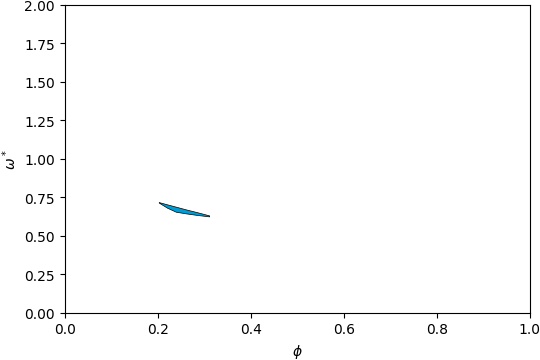

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 10-11

Below is the band structure and isosurface of cF184–Cu₈Sn₃S₁₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.17\) and filling fraction \(\phi = 0.262\).

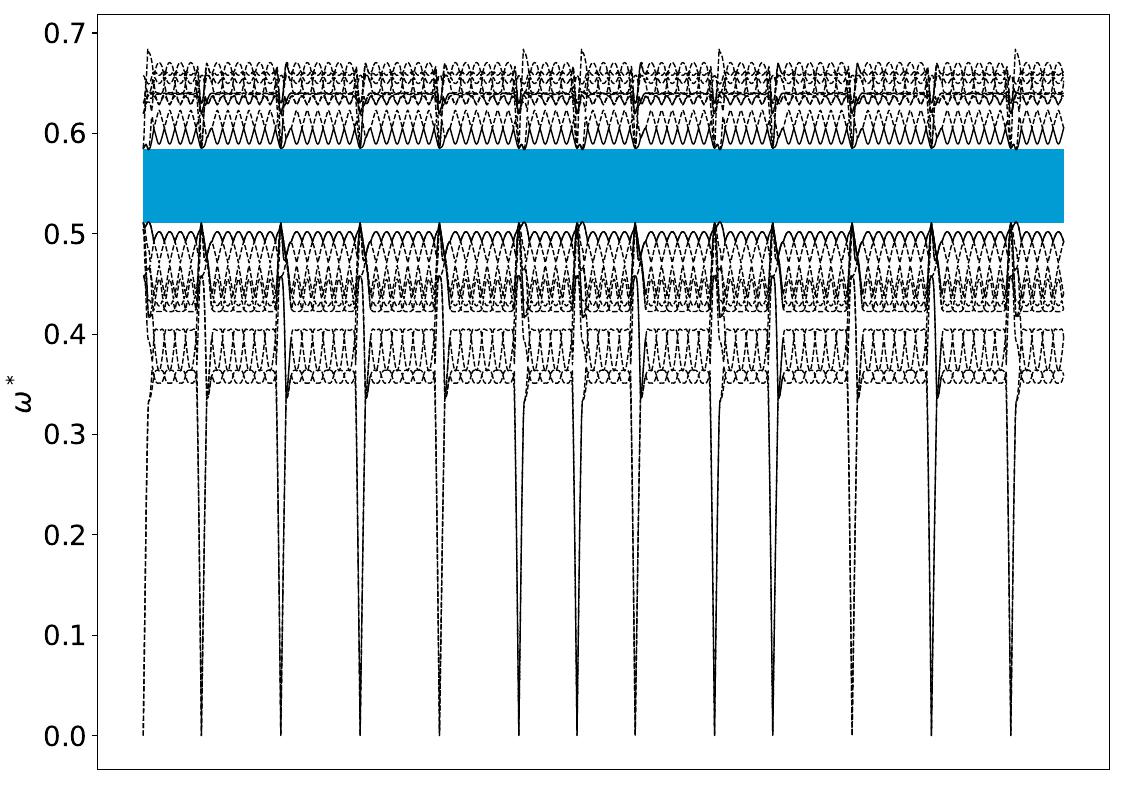

Band Structure across first Brillouin Zone.

View along \(a_1\).
