tI16-VAg3O4 (Inverse)

tI16–VAg₃O₄ (Inverse)

Image of tI16–VAg₃O₄ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= -0.4146599503~\hat{x} + 0.4146599503~\hat{y} + 0.810008797~\hat{z}\\ a_2 &= 0.4146599503~\hat{x} - 0.4146599503~\hat{y} + 0.810008797~\hat{z}\\ a_3 &= 0.4146599503~\hat{x} + 0.4146599503~\hat{y} - 0.810008797~\hat{z}\\\end{split}\]

Space Group: 121

Point Group of Structure: \(\bar{42}m\)

Structure DOI: https://doi.org/10.1021/cm301119c

Source: Crystallographic Open Database #4001678

MPB Epsilon Input File: Download

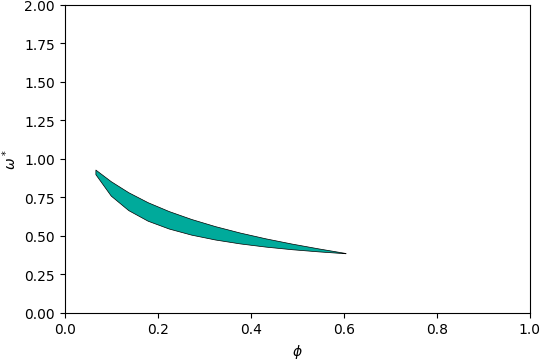

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

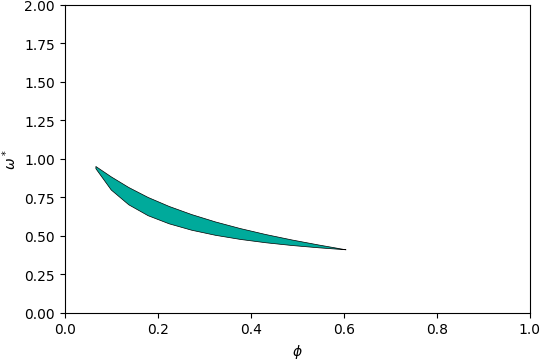

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

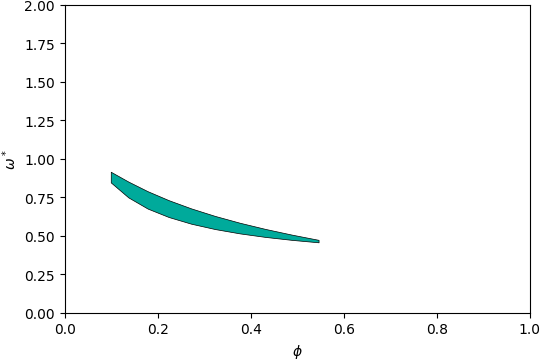

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

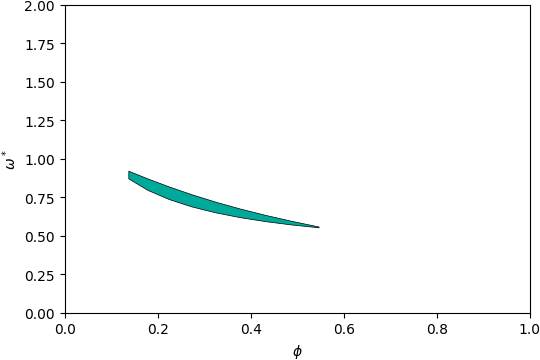

Gap Atlas for \(\varepsilon = 6\)

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

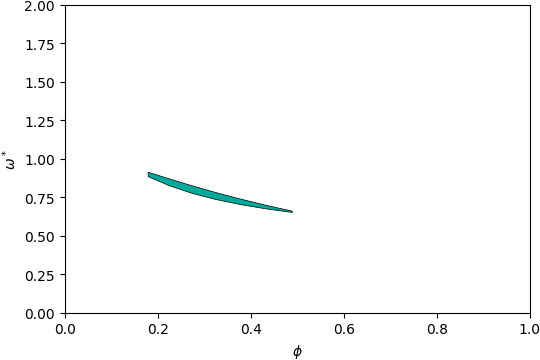

Gap Atlas for \(\varepsilon = 4\)

Gap Atlas for \(\varepsilon\) = 4 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 8-9

Below is the band structure and isosurface of tI16–VAg₃O₄ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.26\) and filling fraction \(\phi = 0.225\).

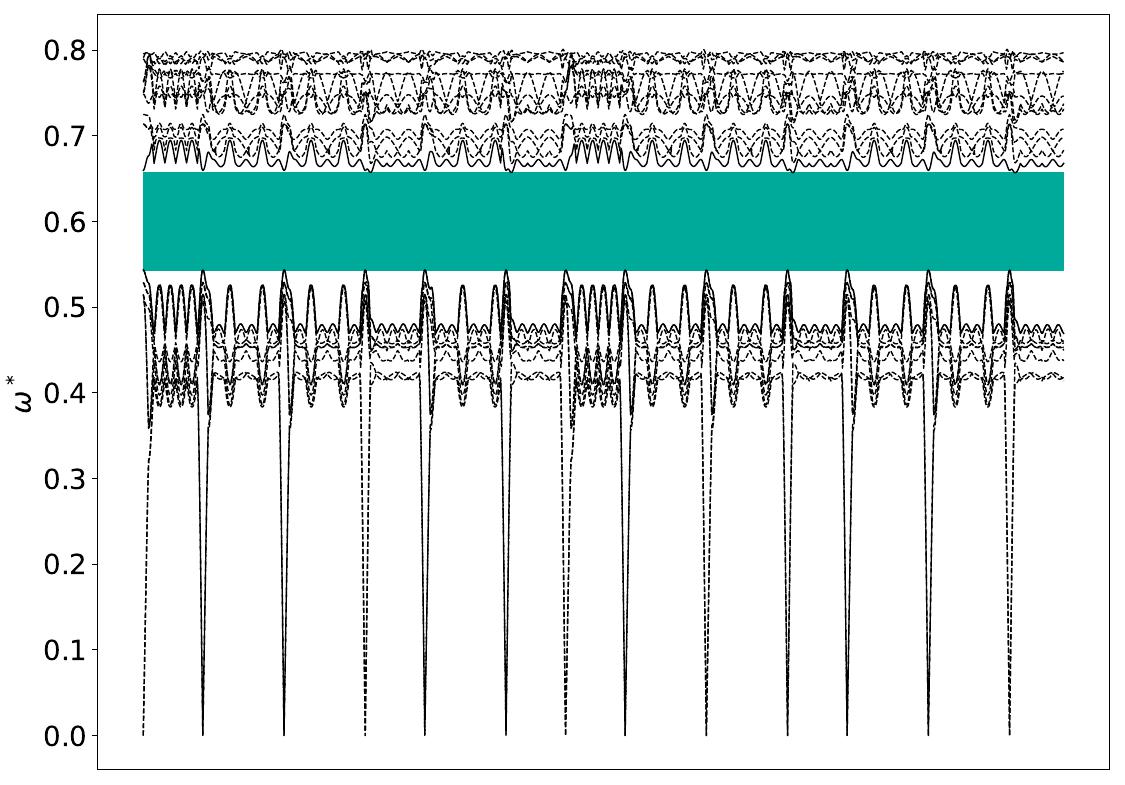

Band Structure across first Brillouin Zone.

View along \(a_1\).
