tP16-FeCuSe2 (Inverse)

tP16–FeCuSe₂ (Inverse)

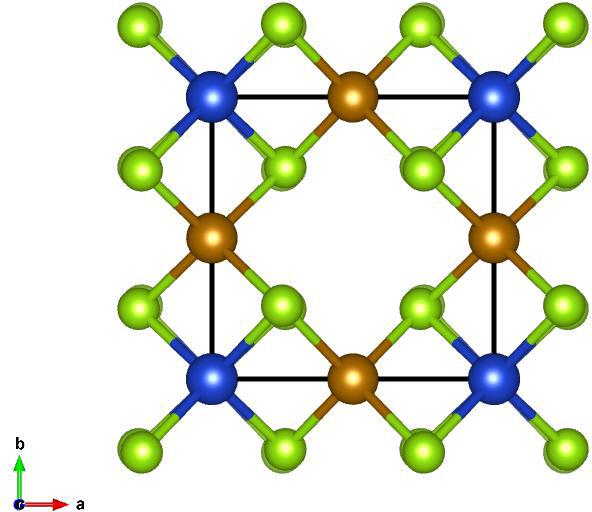

Image of tP16–FeCuSe₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= 1.99675032~\hat{z}\\\end{split}\]

Space Group: 112

Point Group of Structure: \(\bar{42}m\)

Structure DOI: https://doi.org/10.1007/BF02398194

Source: Inorganic Crystallographic Database #656334

MPB Epsilon Input File: Download

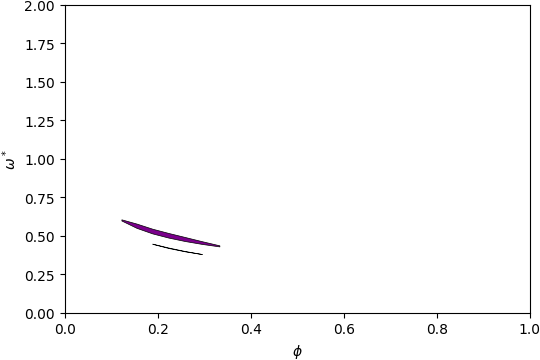

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

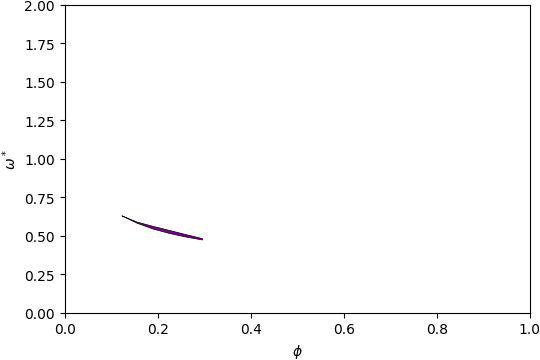

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

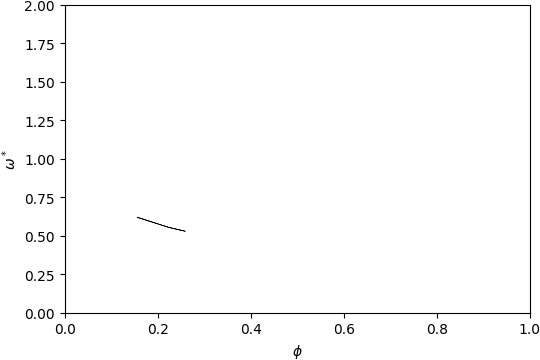

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 10-11

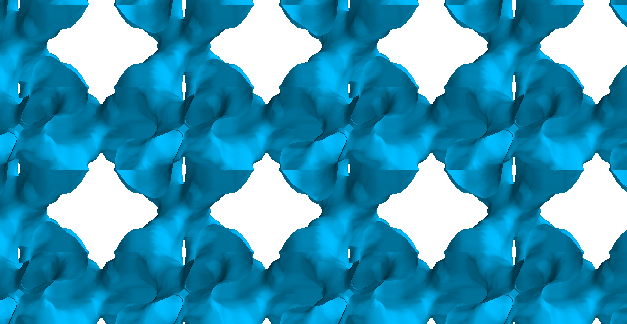

Below is the band structure and isosurface of tP16–FeCuSe₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.32\) and filling fraction \(\phi = 0.224\).

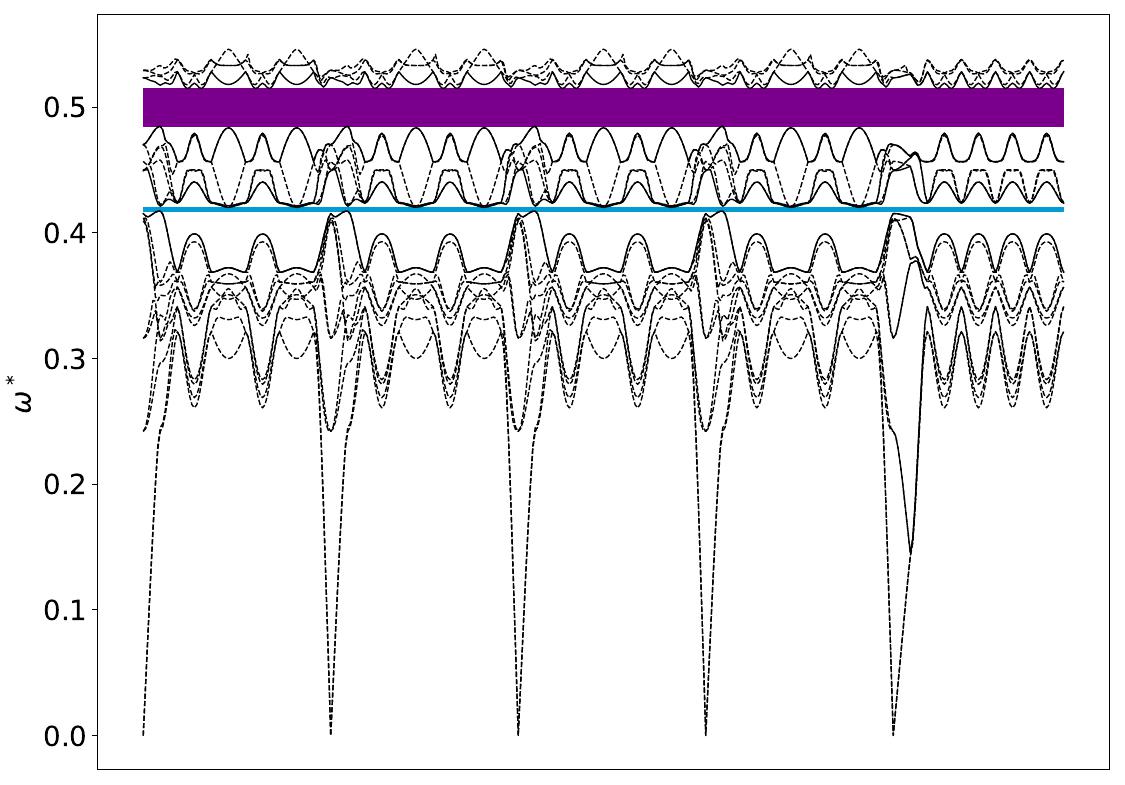

Band Structure across first Brillouin Zone.

View along \(a_1\).

Gap between Bands 16-17

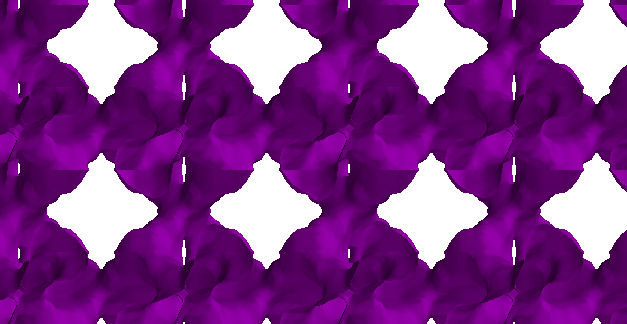

Below is the band structure and isosurface of tP16–FeCuSe₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.32\) and filling fraction \(\phi = 0.224\).

Band Structure across first Brillouin Zone.

View along \(a_1\).
