hR14-B12.64P1.36 (Inverse)

hR14–B_12.64P_1.36 (Inverse)

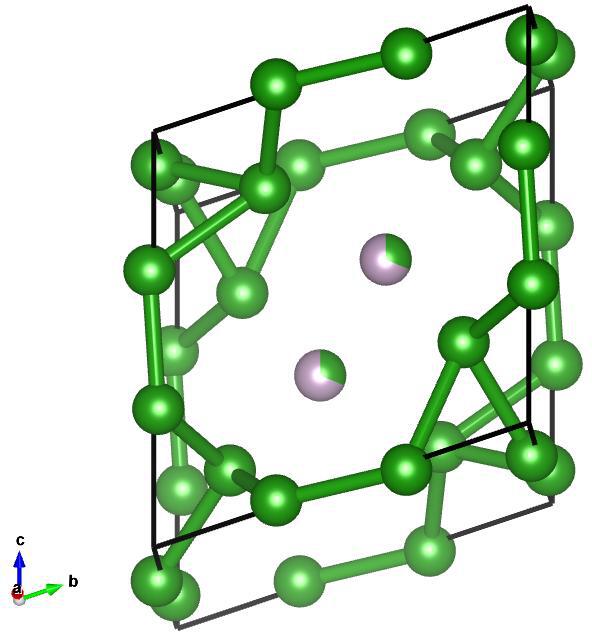

Image of hR14–B_12.64P_1.36 (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.3502073813~\hat{x} + 0.9366721892~\hat{y}\\ a_3 &= 0.3502073813~\hat{x} + 0.242947505~\hat{y} + 0.9046166591~\hat{z}\\\end{split}\]

Space Group: 166

Point Group of Structure: \(\bar{3}m\)

Structure DOI: https://doi.org/10.1107/S0567740874007576

Source: Crystallographic Open Database #2105420

MPB Epsilon Input File: Download

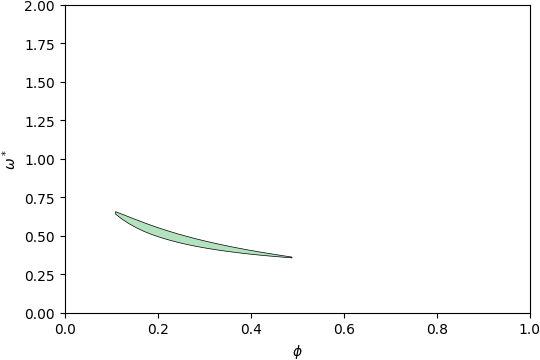

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

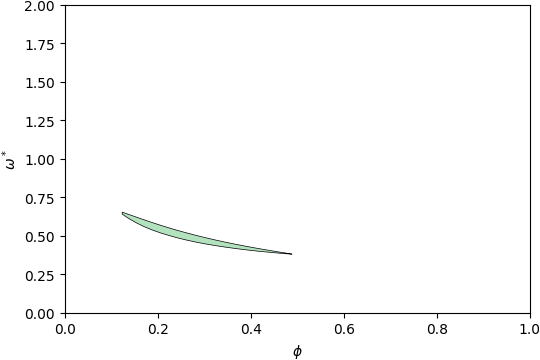

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

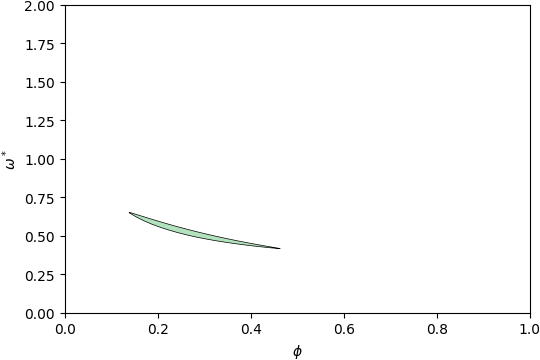

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 7-8

Below is the band structure and isosurface of hR14–B_12.64P_1.36 (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.26\) and filling fraction \(\phi = 0.224\).

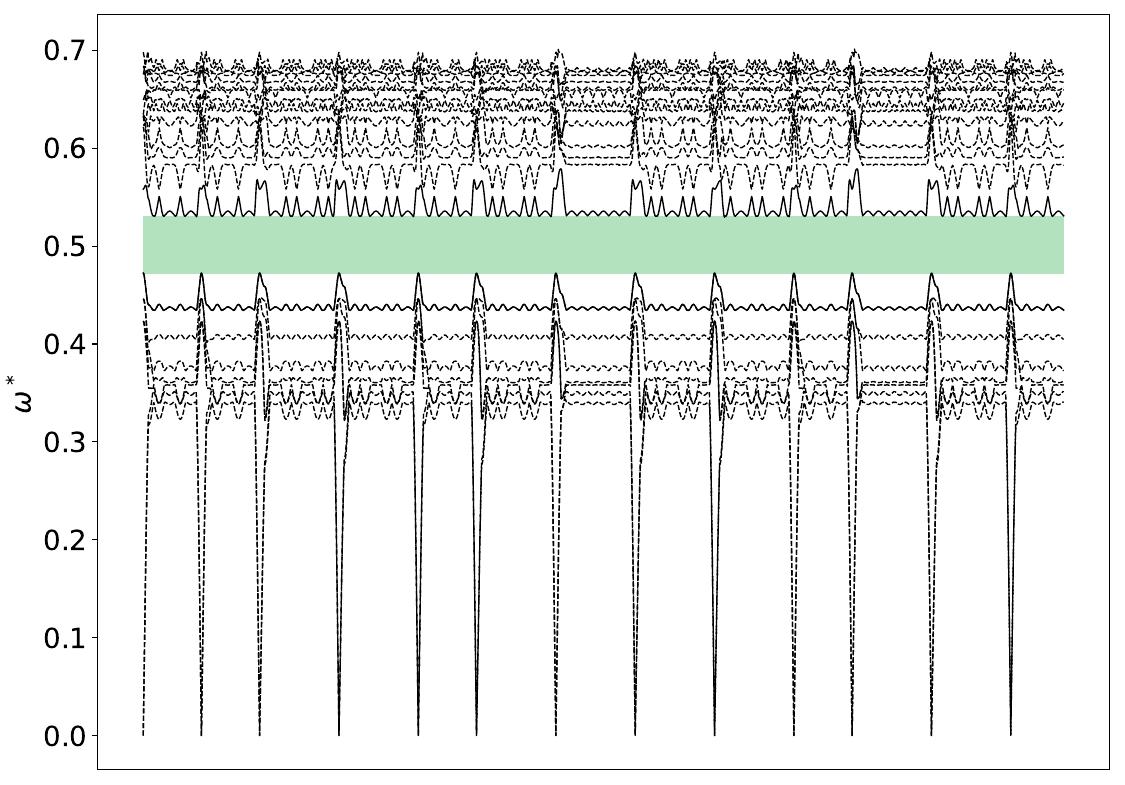

Band Structure across first Brillouin Zone.
