oP24-Li1.6Sb4H2.4O12 (Inverse)

oP24–Li_1.6Sb₄H_2.4O₁₂ (Inverse)

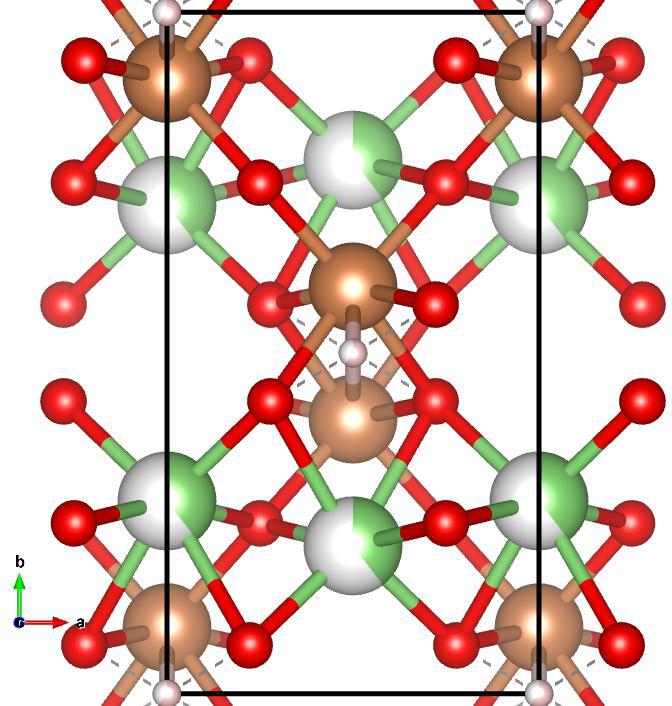

Image of oP24–Li_1.6Sb₄H_2.4O₁₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.9035292349~\hat{y}\\ a_3 &= 1.6554506192~\hat{z}\\\end{split}\]

Space Group: 52

Point Group of Structure: \(mmm\)

Structure DOI: https://doi.org/10.1016/0025-5408(89)90195-5

Source: Crystallographic Open Database #1000142

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

Below is the band structure and isosurface of oP24–Li_1.6Sb₄H_2.4O₁₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.26\) and filling fraction \(\phi = 0.182\).

Band Structure across first Brillouin Zone.

View along \(a_1\).
