oP16-CdCu2GeS4 (Direct)

oP16–CdCu₂GeS₄ (Direct)

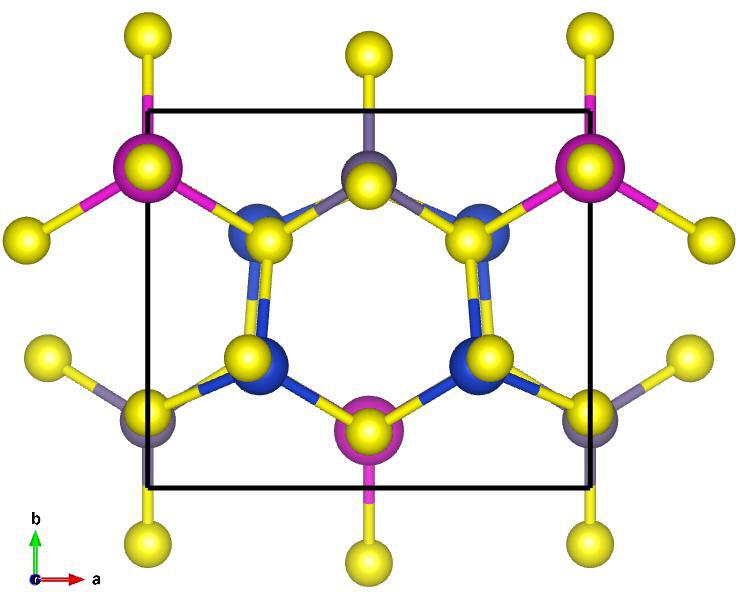

Image of oP16–CdCu₂GeS₄ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.8521840748~\hat{y}\\ a_3 &= 0.8189027377~\hat{z}\\\end{split}\]

Space Group: 31

Point Group of Structure: \(mm2\)

Structure DOI: https://doi.org/10.1107/S0567740869003670

Source: Crystallographic Open Database #2107119

MPB Epsilon Input File: Download

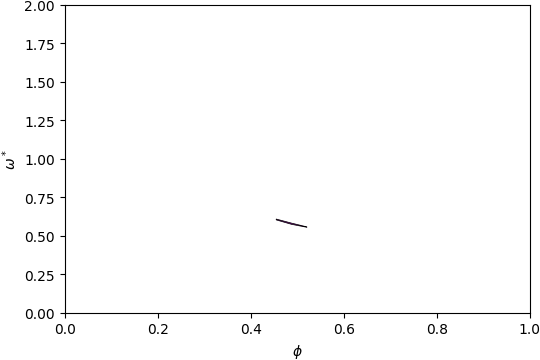

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

Below is the band structure and isosurface of oP16–CdCu₂GeS₄ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.175\) and filling fraction \(\phi = 0.293\).

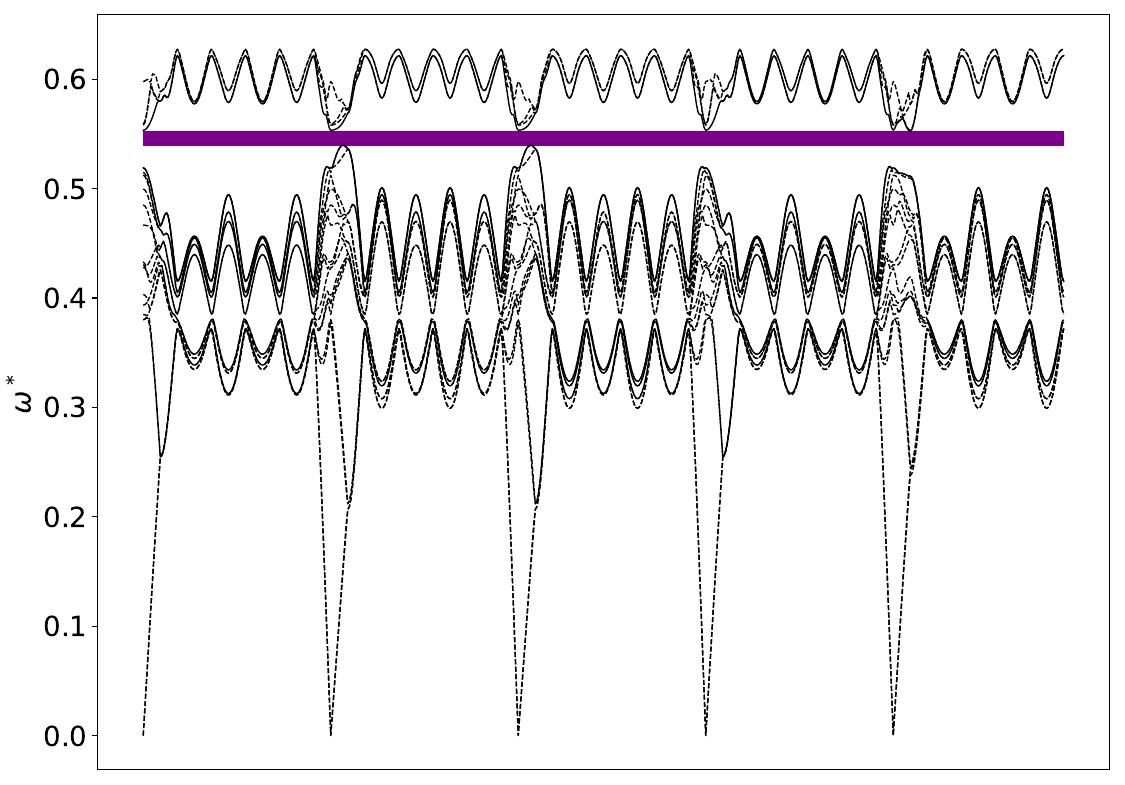

Band Structure across first Brillouin Zone.

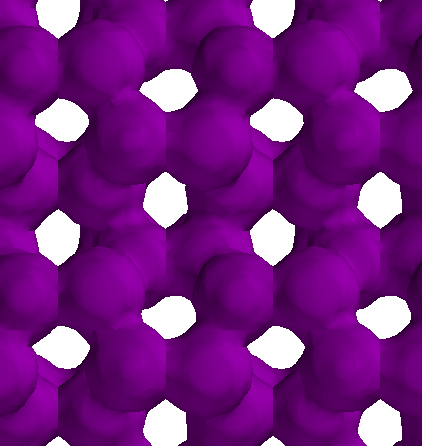

View along \(a_1\).
