mP36-BeP2O6 (Direct)

mP36–BeP₂O₆ (Direct)

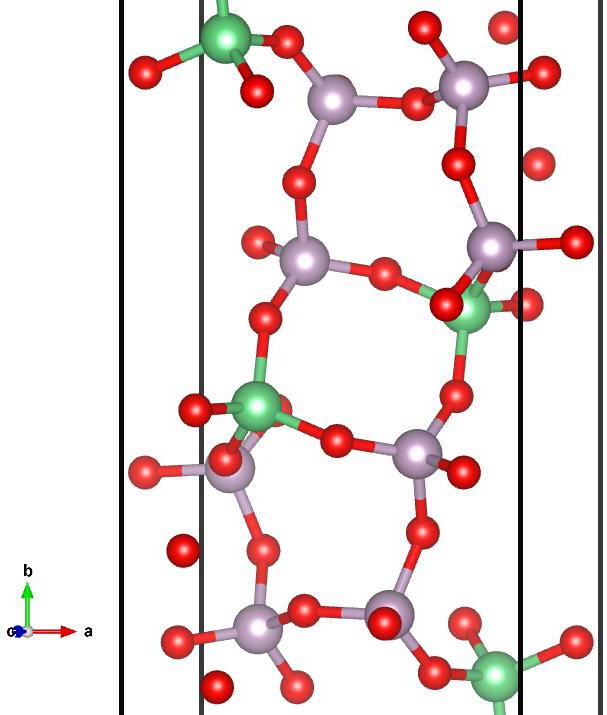

Image of mP36–BeP₂O₆ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 1.8469606959~\hat{y}\\ a_3 &= -0.2008645556~\hat{x} + 0.6657153619~\hat{z}\\\end{split}\]

Space Group: 14

Point Group of Structure: \(2/m\)

Structure DOI: https://doi.org/10.1107/S0567740877011200

Source: Crystallographic Open Database #1007017

MPB Epsilon Input File: Download

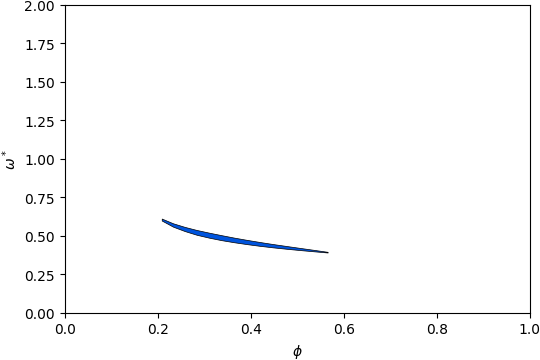

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

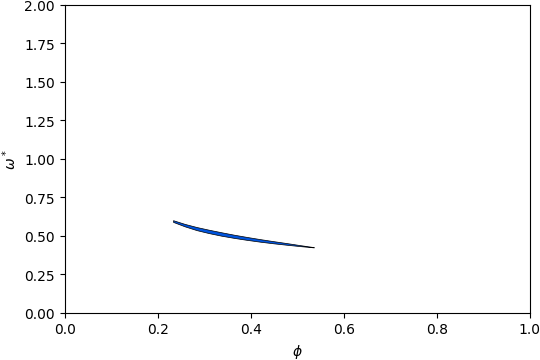

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

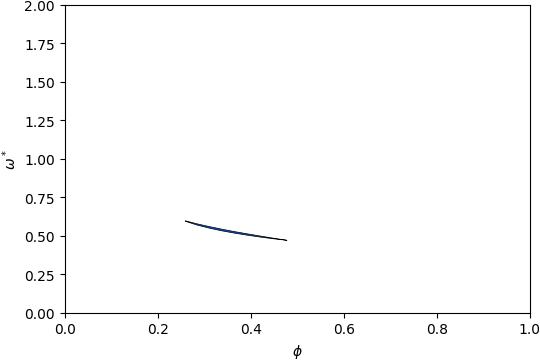

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of mP36–BeP₂O₆ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.145\) and filling fraction \(\phi = 0.338\).

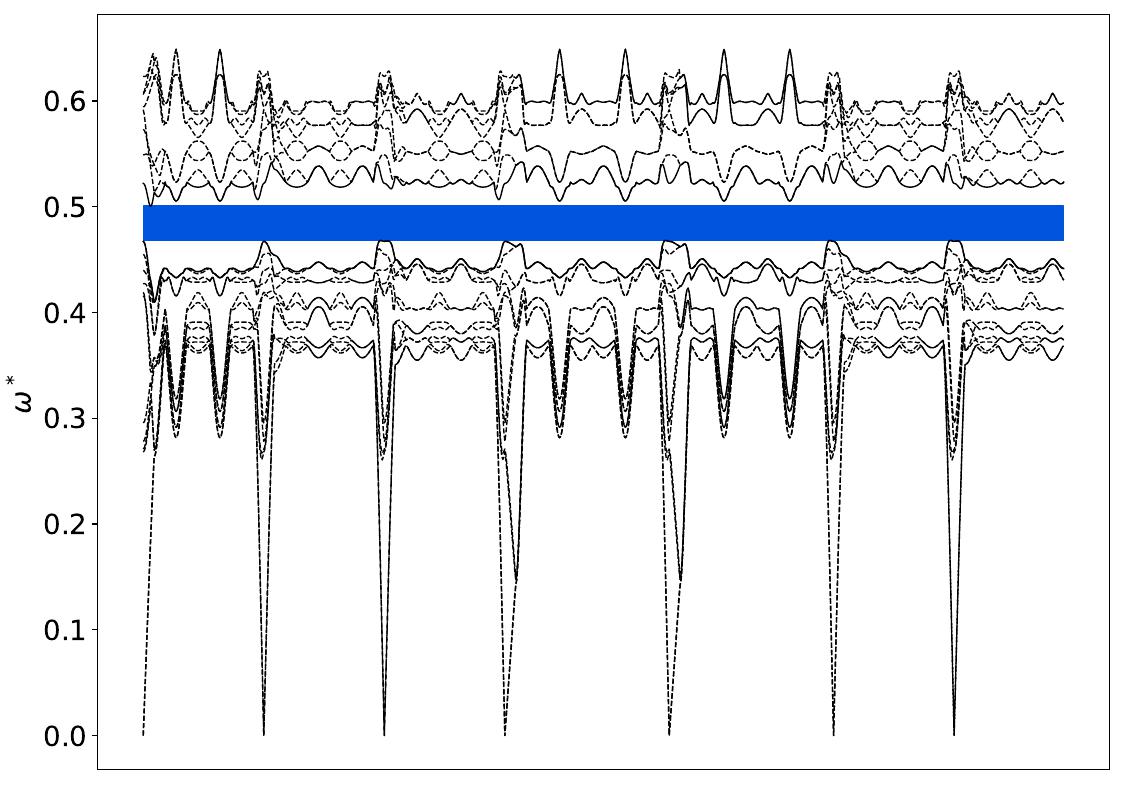

Band Structure across first Brillouin Zone.

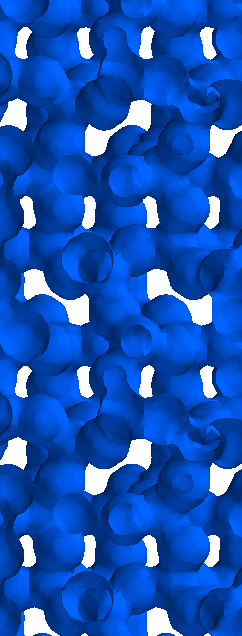

View along \(a_1\).
