oC48-H2O (Direct)

oC48–H₂O (Direct)

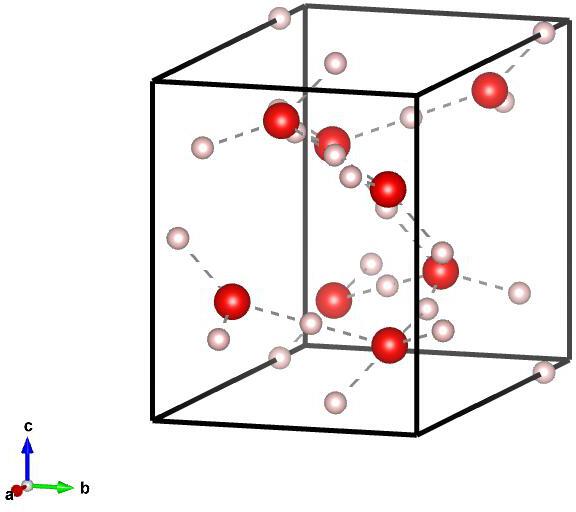

Image of oC48–H₂O (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.5769230628~\hat{y}\\ a_3 &= 0.7128204881~\hat{z}\\\end{split}\]

Space Group: 20

Point Group of Structure: \(222\)

Structure DOI: https://doi.org/10.1063/1.1749748

Source: Inorganic Crystallographic Database #31683

MPB Epsilon Input File: Download

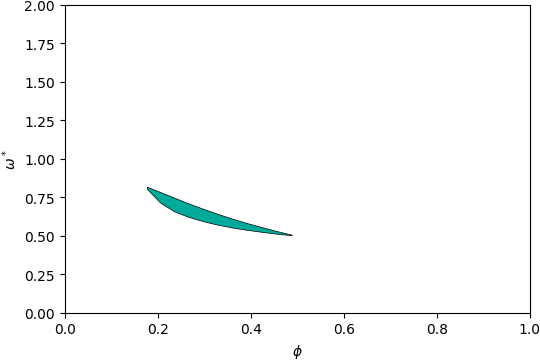

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

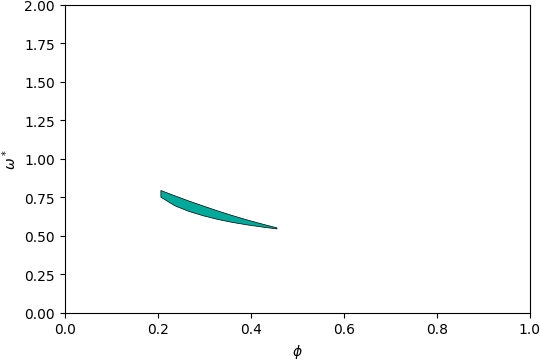

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

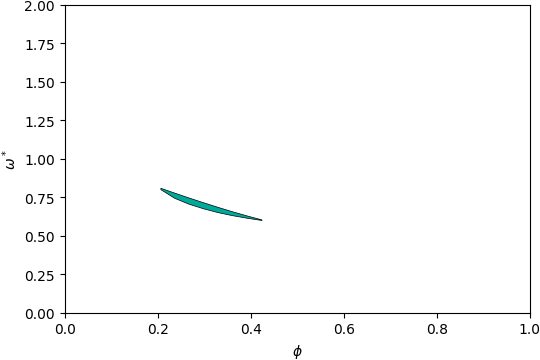

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

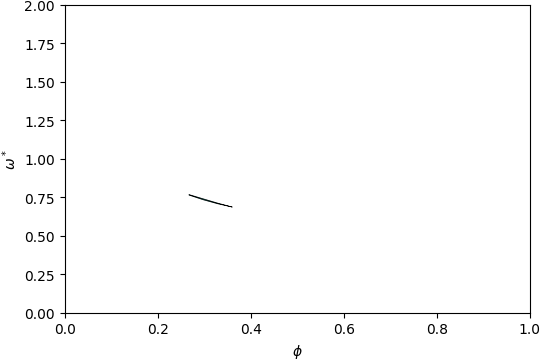

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 8-9

Below is the band structure and isosurface of oC48–H₂O (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.105\) and filling fraction \(\phi = 0.267\).

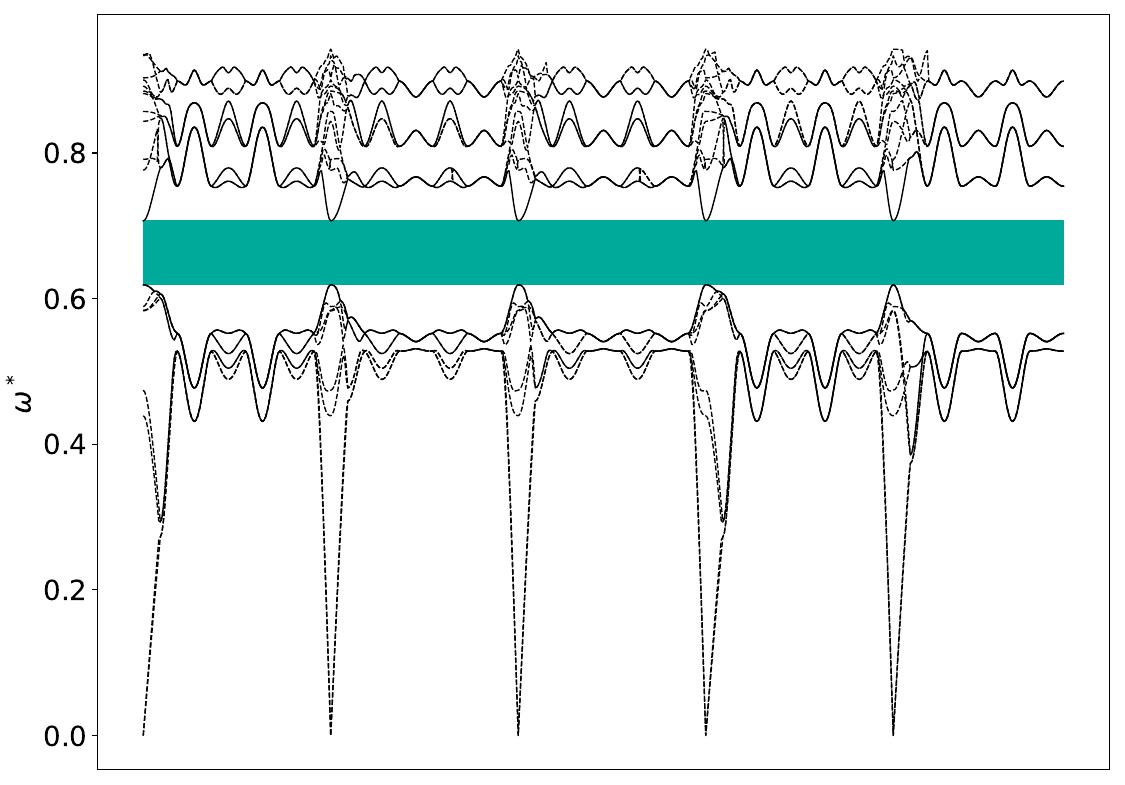

Band Structure across first Brillouin Zone.

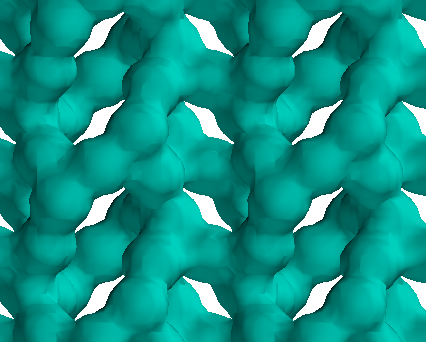

View along \(a_1\).
