oA12-SO2 (Direct)

oA12–SO₂ (Direct)

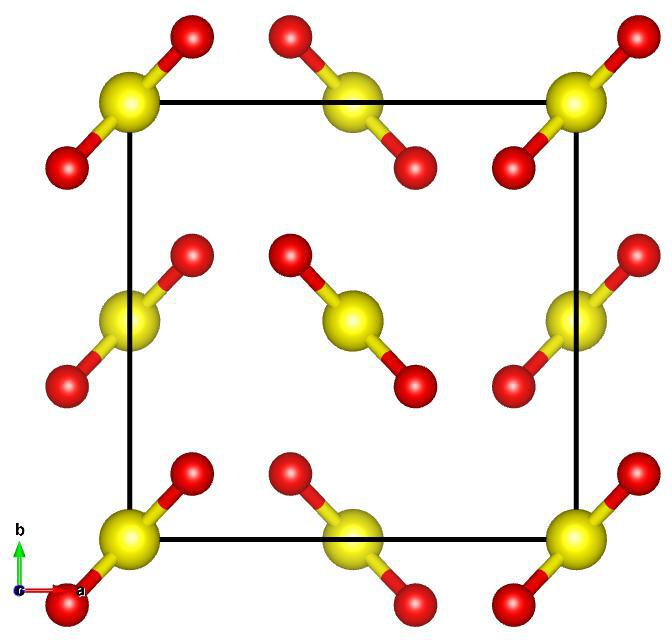

Image of oA12–SO₂ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.4892915889~\hat{y} + 0.5057660373~\hat{z}\\ a_3 &= -0.4892915889~\hat{y} + 0.5057660373~\hat{z}\\\end{split}\]

Space Group: 41

Point Group of Structure: \(mm2\)

Structure DOI: https://doi.org/10.1107/S0365110X5200109X

Source: Inorganic Crystallographic Database #24645

MPB Epsilon Input File: Download

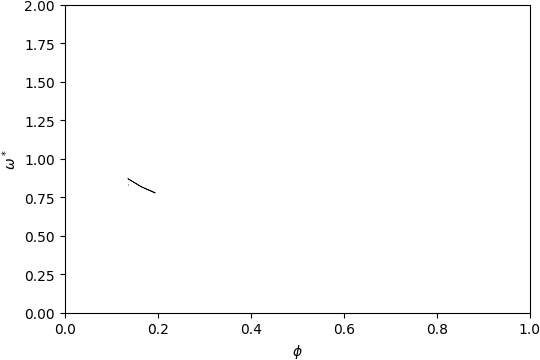

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of oA12–SO₂ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.14\) and filling fraction \(\phi = 0.111\).

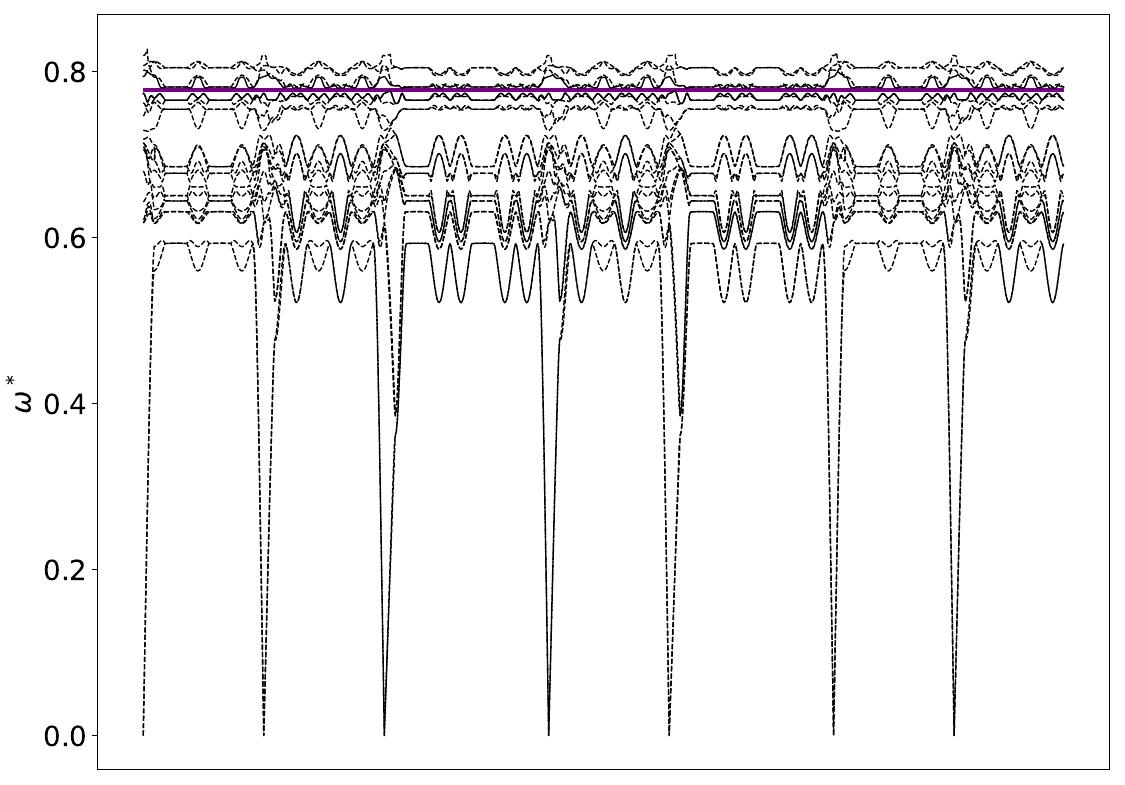

Band Structure across first Brillouin Zone.

View along \(a_1\).

Gap between Bands 16-17

Below is the band structure and isosurface of oA12–SO₂ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.16\) and filling fraction \(\phi = 0.164\).

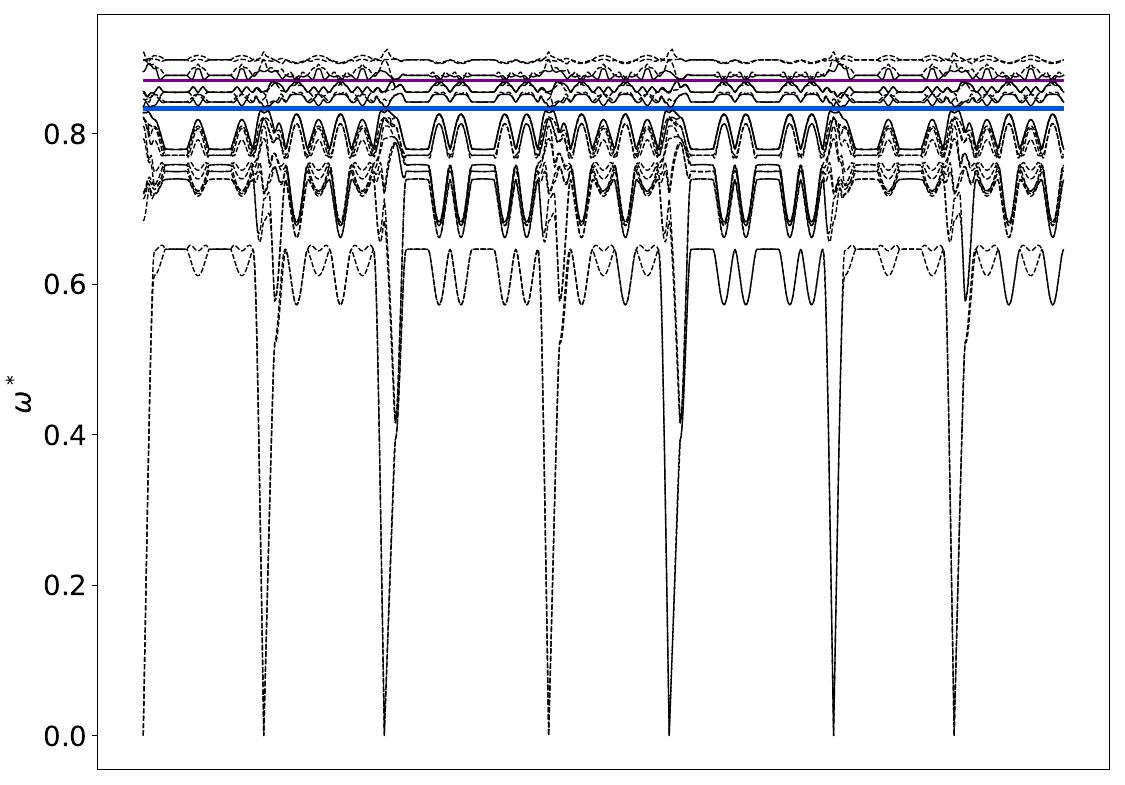

Band Structure across first Brillouin Zone.

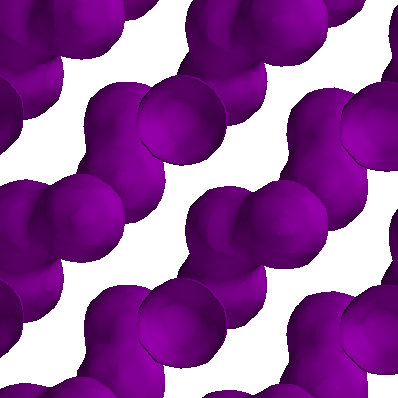

View along \(a_1\).
