cF72-In6Ge2PtO9 (Inverse)

cF72–In₆Ge₂PtO₉ (Inverse)

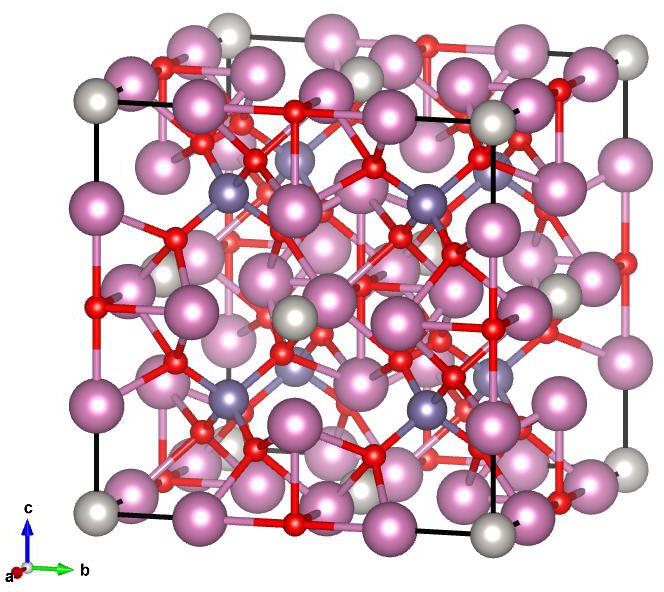

Image of cF72–In₆Ge₂PtO₉ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 1/\sqrt{2}~\hat{y} + 1/\sqrt{2}~\hat{z}\\ a_2 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{z}\\ a_3 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{y}\\\end{split}\]

Space Group: 225

Point Group of Structure: \(m\bar{3}m\)

Structure DOI: https://doi.org/10.1021/ja053280x

Source: Crystallographic Open Database #4111935

MPB Epsilon Input File: Download

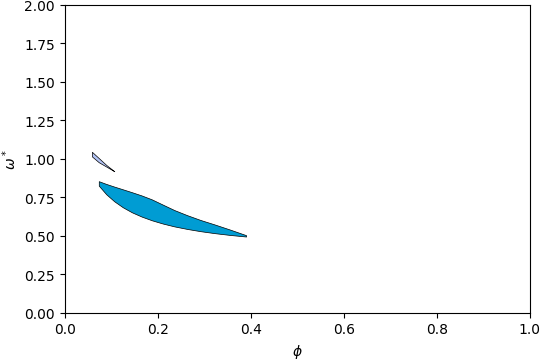

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

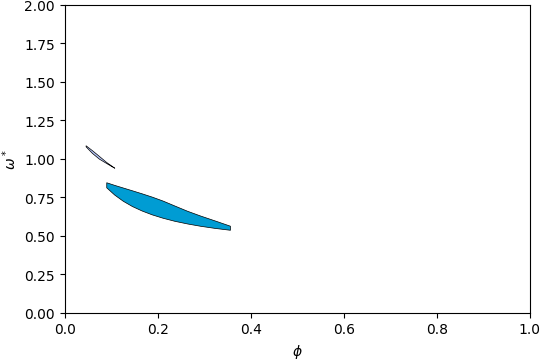

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

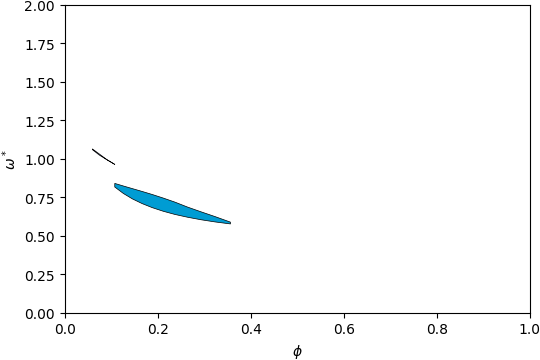

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

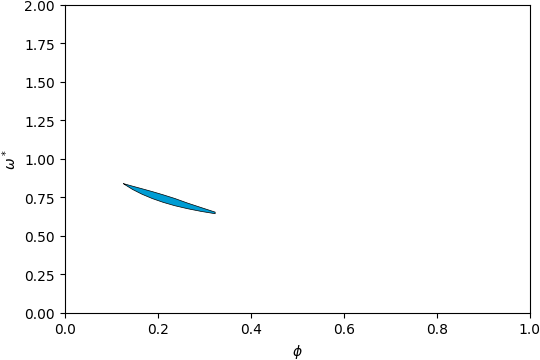

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 10-11

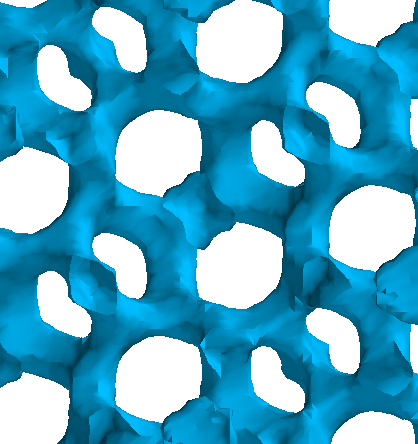

Below is the band structure and isosurface of cF72–In₆Ge₂PtO₉ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.22\) and filling fraction \(\phi = 0.189\).

Band Structure across first Brillouin Zone.

View along \(a_1\).

Gap between Bands 13-14

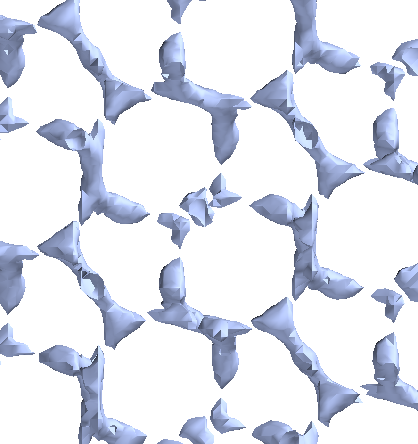

Below is the band structure and isosurface of cF72–In₆Ge₂PtO₉ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.255\) and filling fraction \(\phi = 0.06\).

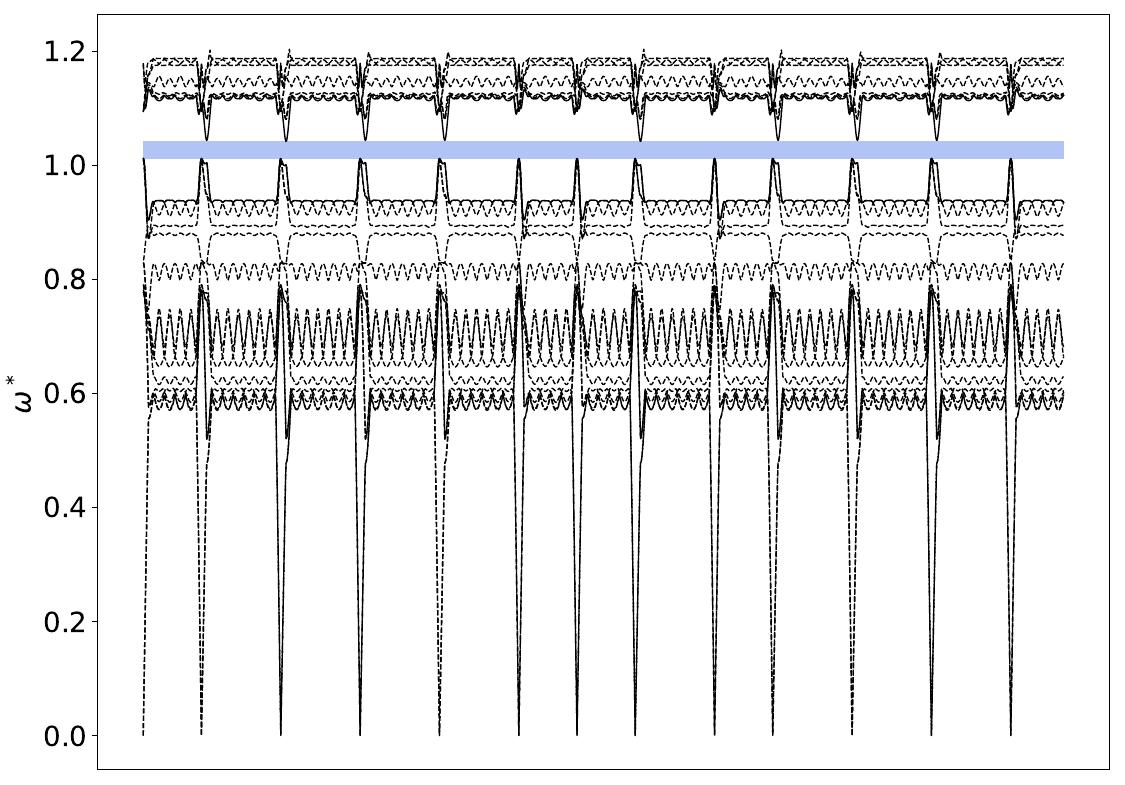

Band Structure across first Brillouin Zone.

View along \(a_1\).
