hP2-Be (Inverse)

hP2–Be (Inverse)

../_images/structure156.jpg

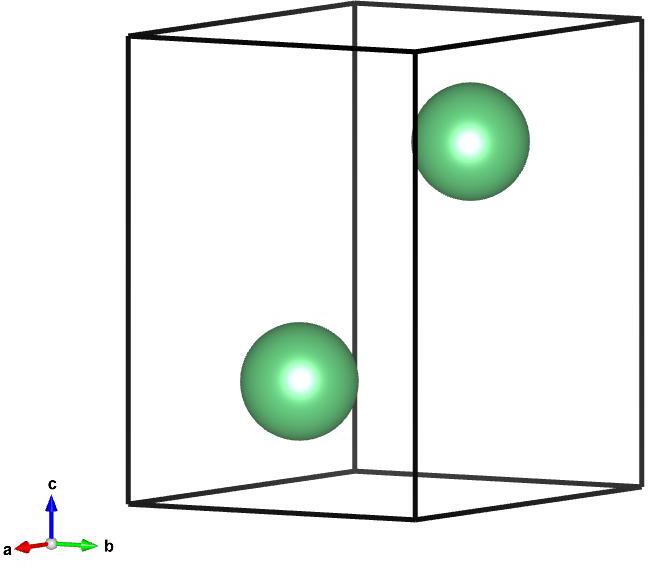

Image of hP2–Be (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= -1/2~\hat{x} + \sqrt{3}/\sqrt{4}~\hat{y}\\ a_3 &= 1.5680724788904694~\hat{z}\\\end{split}\]

Space Group: 194

Point Group of Structure: \(6/mmm\)

Structure DOI: https://doi.org/10.1107/S0567739478000121

Source: Inorganic Crystallographic Database #1425

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

../_images/gap_atlas-16153.png

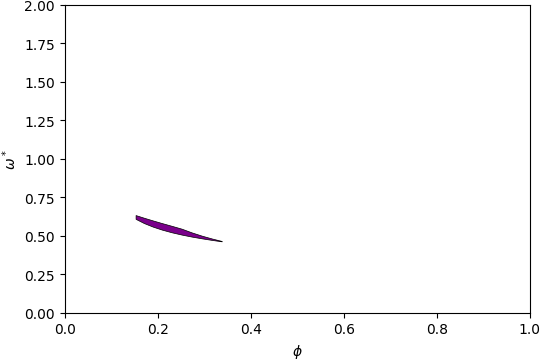

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

../_images/gap_atlas-14154.png

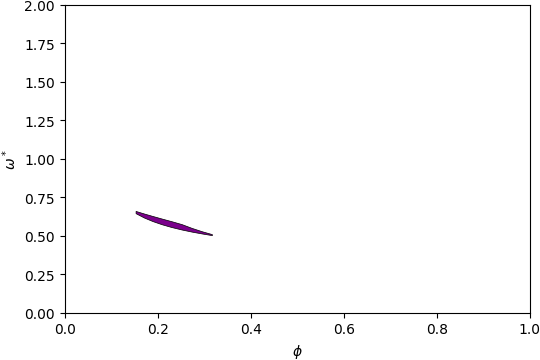

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

../_images/gap_atlas-12126.png

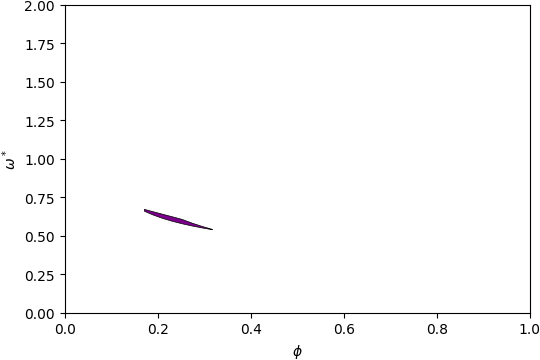

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

../_images/gap_atlas-1099.png

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

../_images/gap_atlas-859.png

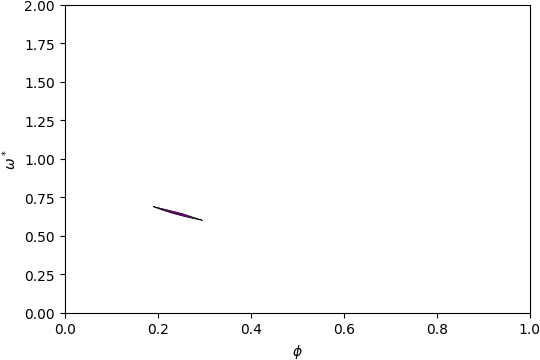

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

Below is the band structure and isosurface of hP2–Be (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.5\) and filling fraction \(\phi = 0.231\).

../_images/band_diagram_b=1626.jpg

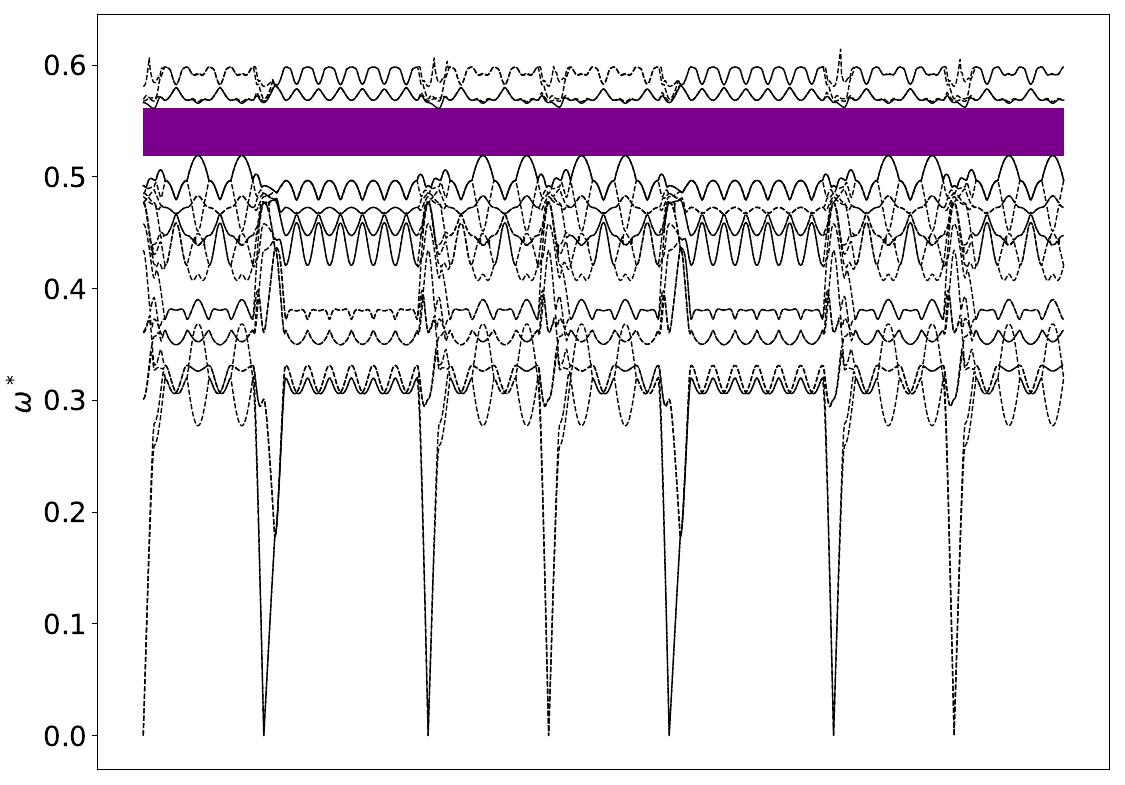

Band Structure across first Brillouin Zone.

../_images/hP2-Be_r@gap_16-17.png

View along \(a_1\).
