oP24-SiO2 (Inverse)

oP24–SiO₂ (Inverse)

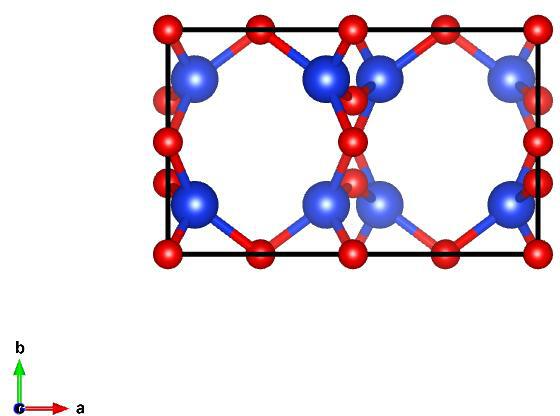

Image of oP24–SiO₂ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.60661977~\hat{y}\\ a_3 &= 1.32048791~\hat{z}\\\end{split}\]

Space Group: 54

Point Group of Structure: \(mmm\)

Structure DOI: https://doi.org/10.1021/ja037334j

Source: Crystallographic Open Database #4124082

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

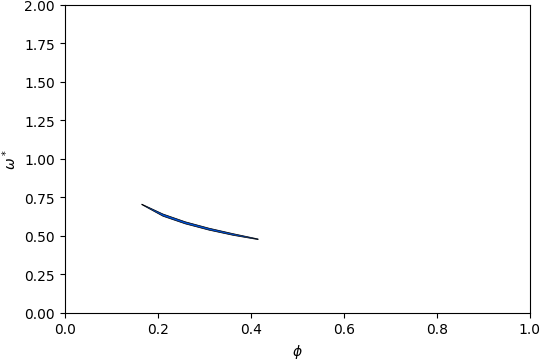

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

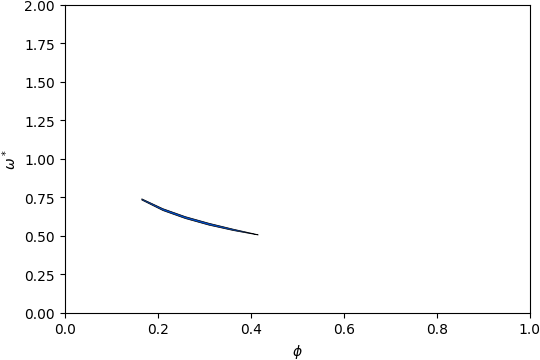

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

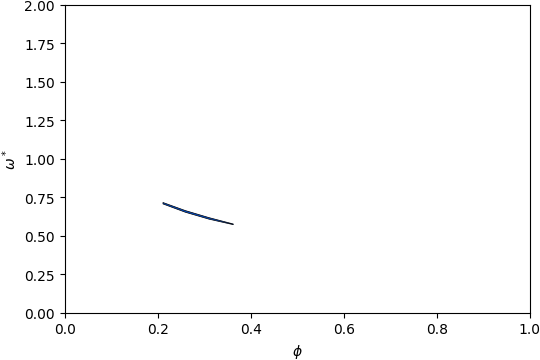

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of oP24–SiO₂ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.21\) and filling fraction \(\phi = 0.311\).

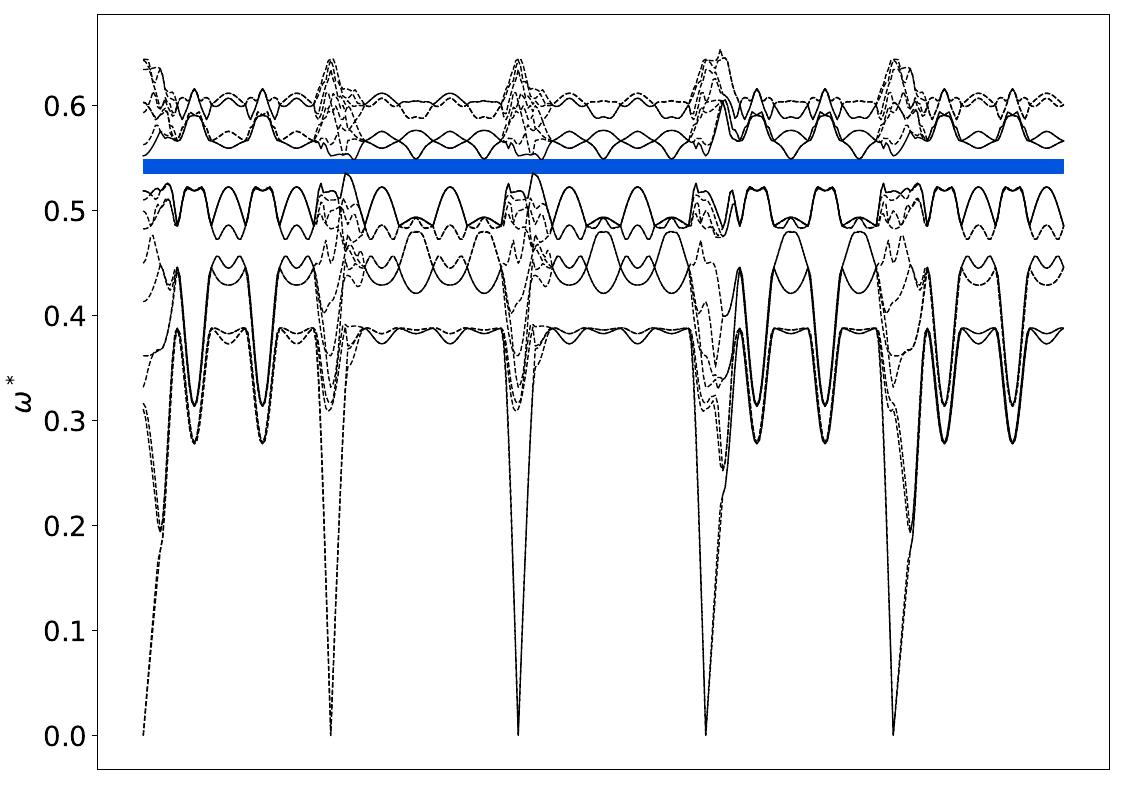

Band Structure across first Brillouin Zone.

View along \(a_1\).
