tI280-In12Te23 (Inverse)

tI280–In₁₂Te₂₃ (Inverse)

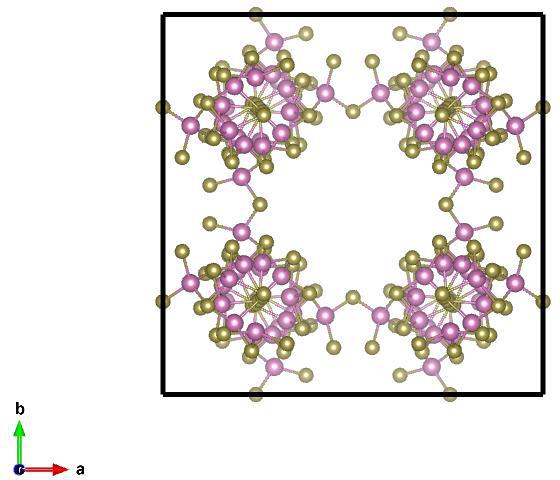

Image of tI280–In₁₂Te₂₃ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= -0.5182488697~\hat{x} + 0.5182488697~\hat{y} + 0.680320673~\hat{z}\\ a_2 &= 0.5182488697~\hat{x} - 0.5182488697~\hat{y} + 0.680320673~\hat{z}\\ a_3 &= 0.5182488697~\hat{x} + 0.5182488697~\hat{y} - 0.680320673~\hat{z}\\\end{split}\]

Space Group: 119

Point Group of Structure: \(\bar{42}m\)

Structure DOI: https://doi.org/10.1107/S0108767383001762

Photonics DOI: Gap(s) for space group 119 above band 2 theorized in: https://doi.org/10.1103/PhysRevLett.121.263903,

Gap(s) above band(s) 12, 14 not previously studied

Source: Crystallographic Open Database #4334474

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

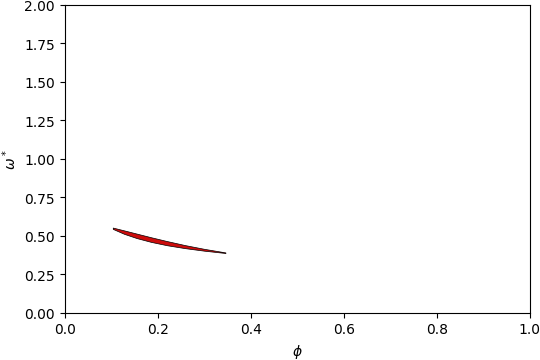

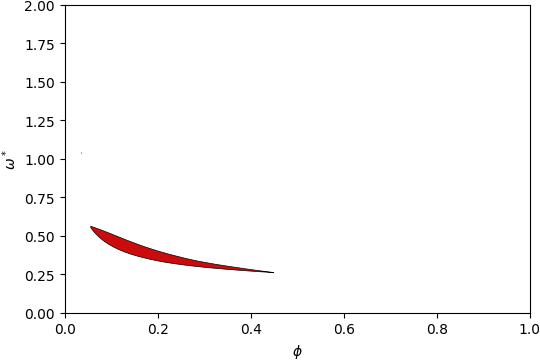

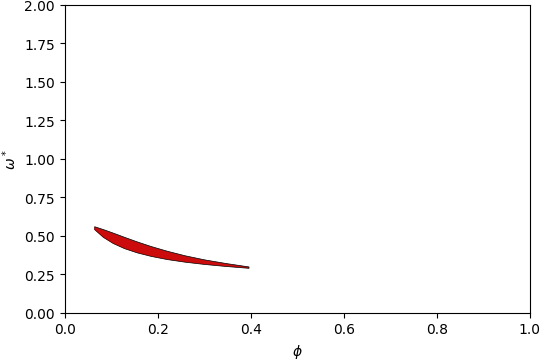

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

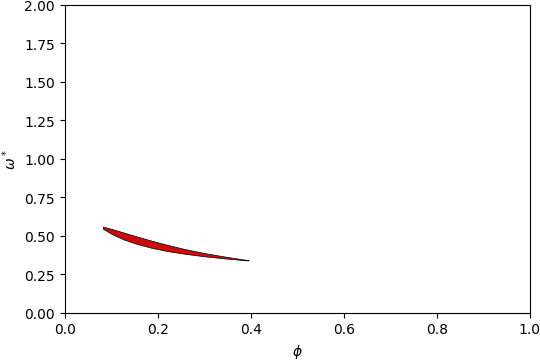

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

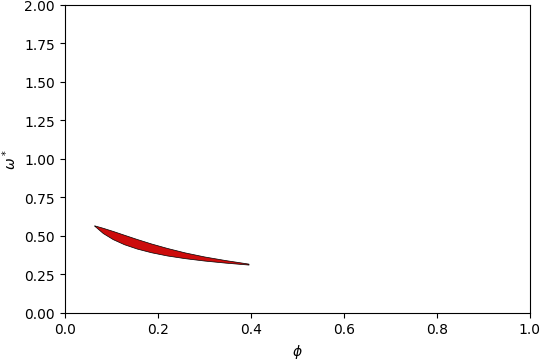

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 6\)

Gap Atlas for \(\varepsilon\) = 6 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 4\)

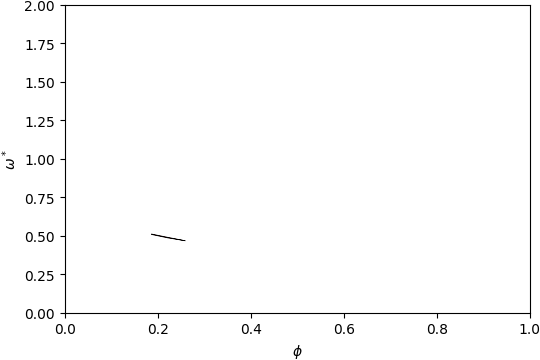

Gap Atlas for \(\varepsilon\) = 4 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 2-3

Below is the band structure and isosurface of tI280–In₁₂Te₂₃ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.195\) and filling fraction \(\phi = 0.156\).

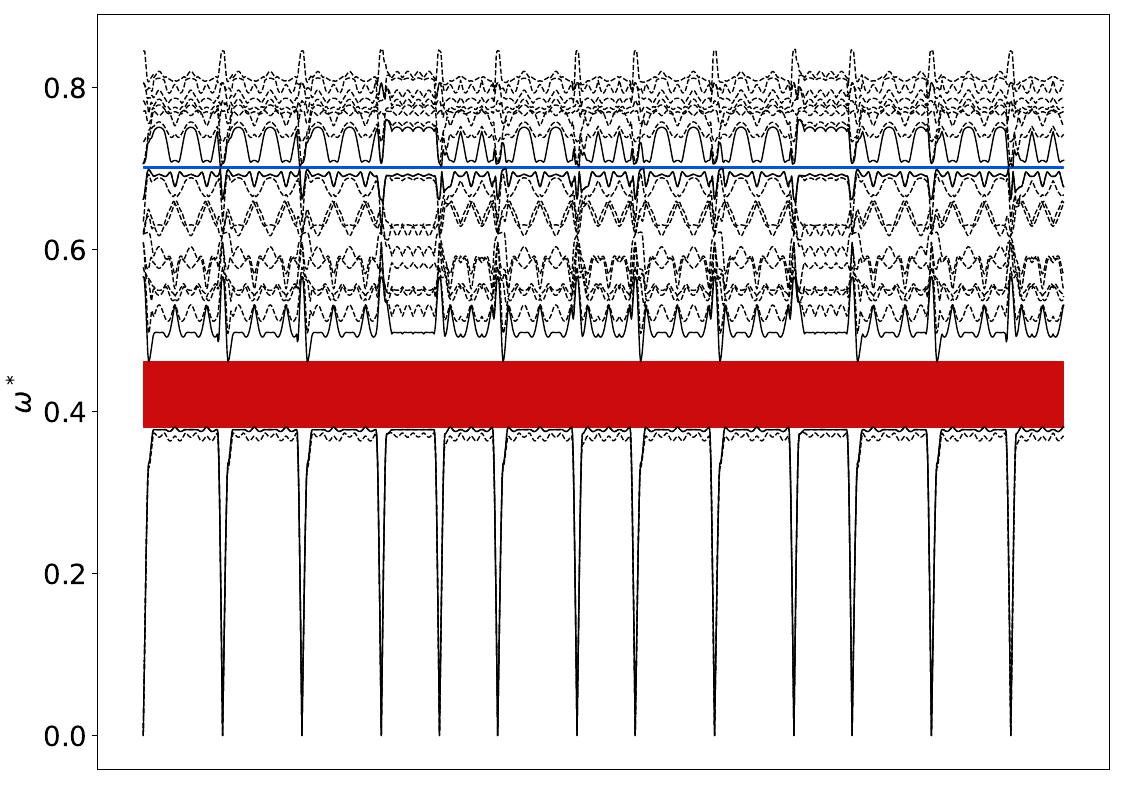

Band Structure across first Brillouin Zone.

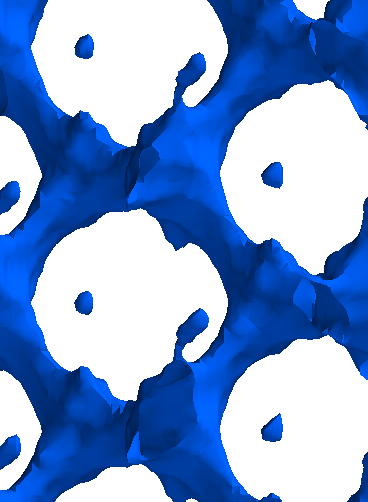

View along \(a_1\).

Gap between Bands 12-13

Below is the band structure and isosurface of tI280–In₁₂Te₂₃ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.195\) and filling fraction \(\phi = 0.156\).

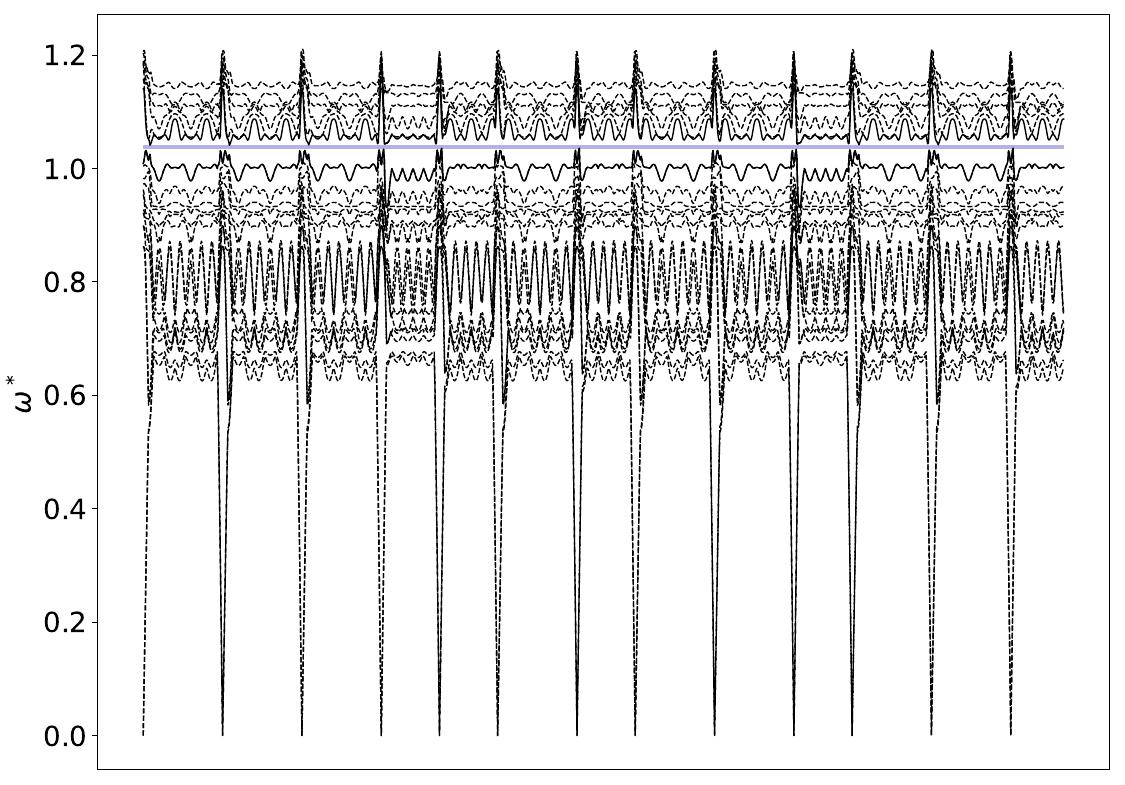

Band Structure across first Brillouin Zone.

View along \(a_1\).

Gap between Bands 14-15

Below is the band structure and isosurface of tI280–In₁₂Te₂₃ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.25\) and filling fraction \(\phi = 0.035\).

Band Structure across first Brillouin Zone.

View along \(a_1\).
