oP16-Li2MnSiO4 (Inverse)

oP16–Li₂MnSiO₄ (Inverse)

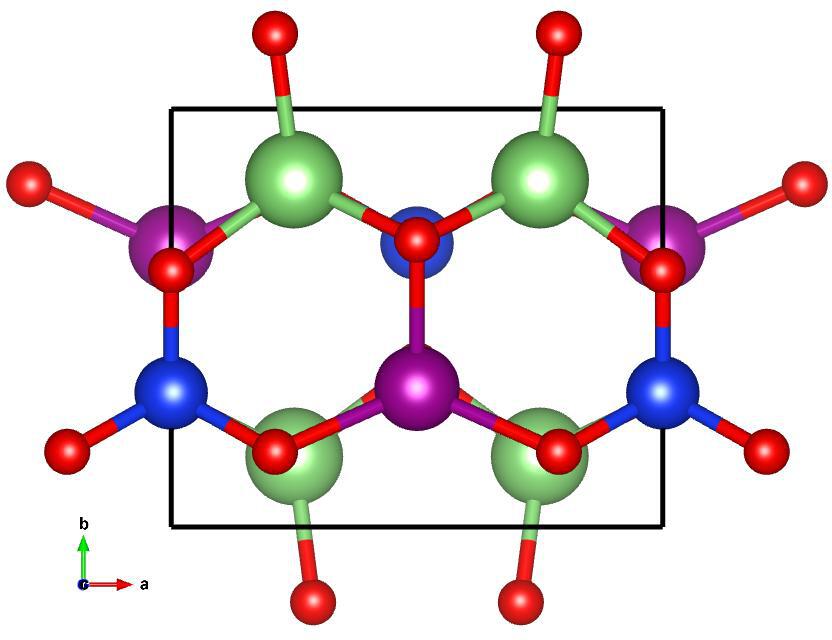

Image of oP16–Li₂MnSiO₄ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.85022096~\hat{y}\\ a_3 &= 0.7869893768~\hat{z}\\\end{split}\]

Space Group: 31

Point Group of Structure: \(mm2\)

Structure DOI: https://doi.org/10.1107/S1600536812035040

Source: Crystallographic Open Database #2236685

MPB Epsilon Input File: Download

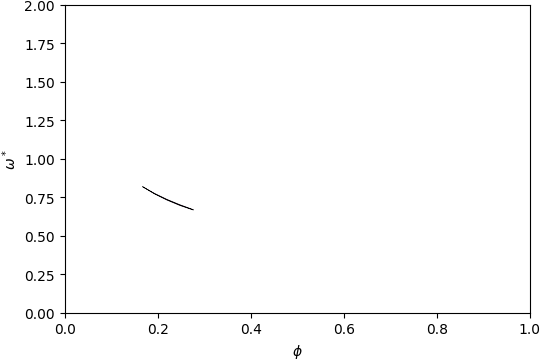

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

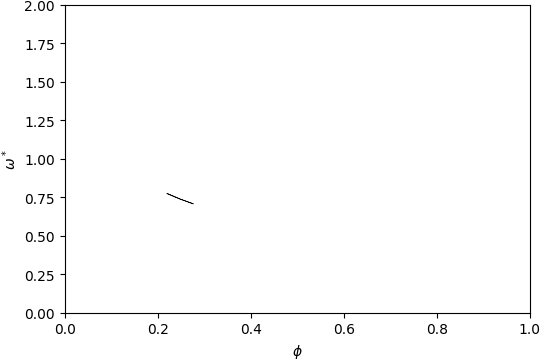

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

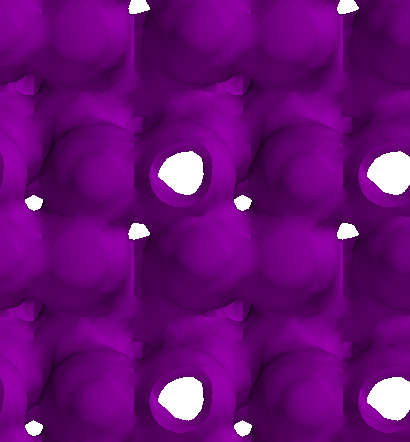

Below is the band structure and isosurface of oP16–Li₂MnSiO₄ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.215\) and filling fraction \(\phi = 0.248\).

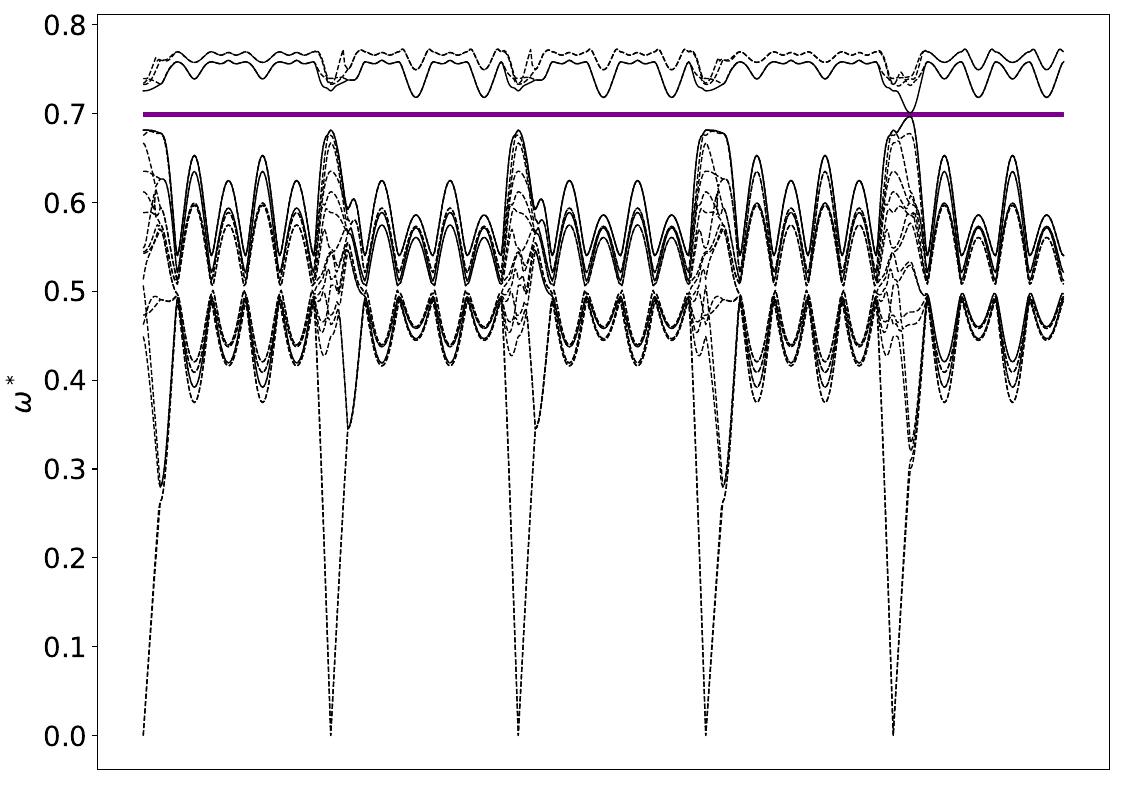

Band Structure across first Brillouin Zone.

View along \(a_1\).
