mC64-P3N5 (Direct)

mC64–P₃N₅ (Direct)

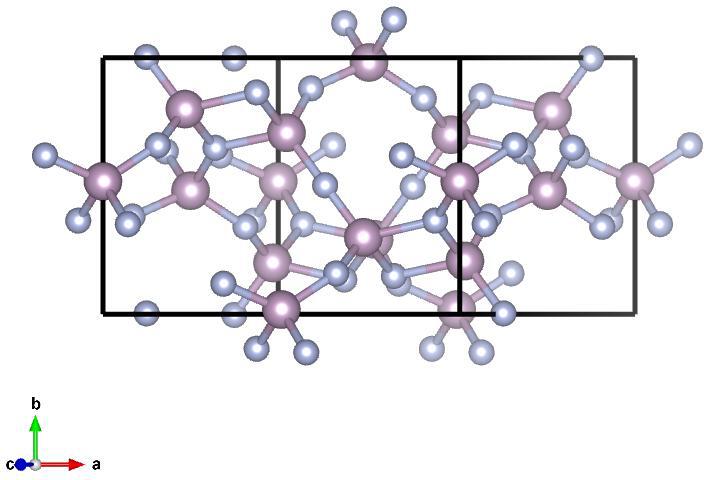

Image of mC64–P₃N₅ (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= 0.7184453882~\hat{y}\\ a_3 &= -0.4910905848~\hat{x} + 1.0154626529~\hat{z}\\\end{split}\]

Space Group: 9

Point Group of Structure: \(m\)

Structure DOI: https://doi.org/10.1002/(SICI)1521-3749(199804)624:4<620::AID-ZAAC620>3.0.CO;2-K

Source: Crystallographic Open Database #6000643

MPB Epsilon Input File: Download

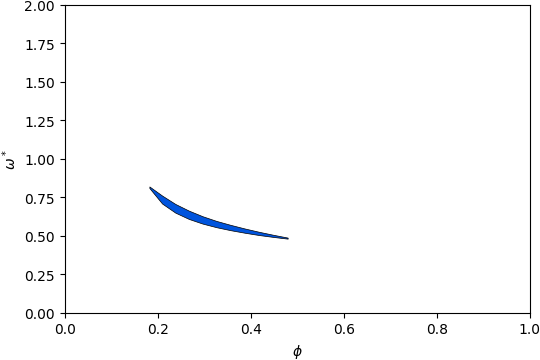

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

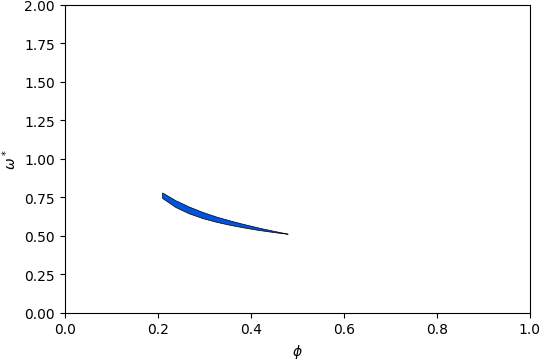

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

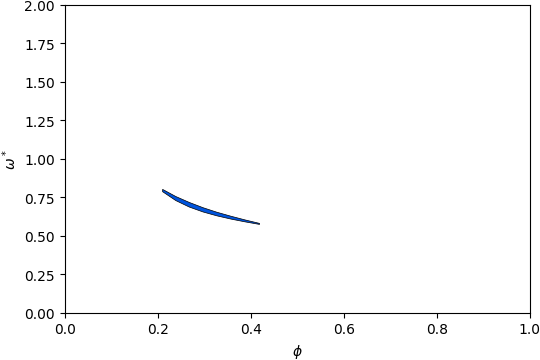

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

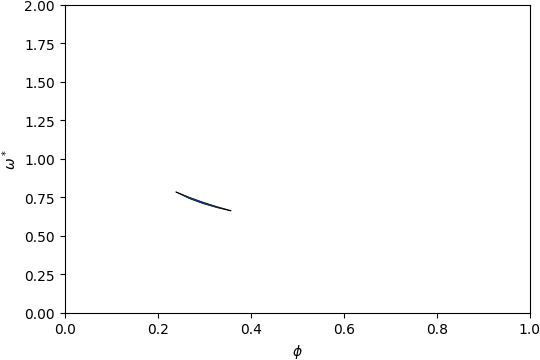

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 12-13

Below is the band structure and isosurface of mC64–P₃N₅ (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.115\) and filling fraction \(\phi = 0.158\).

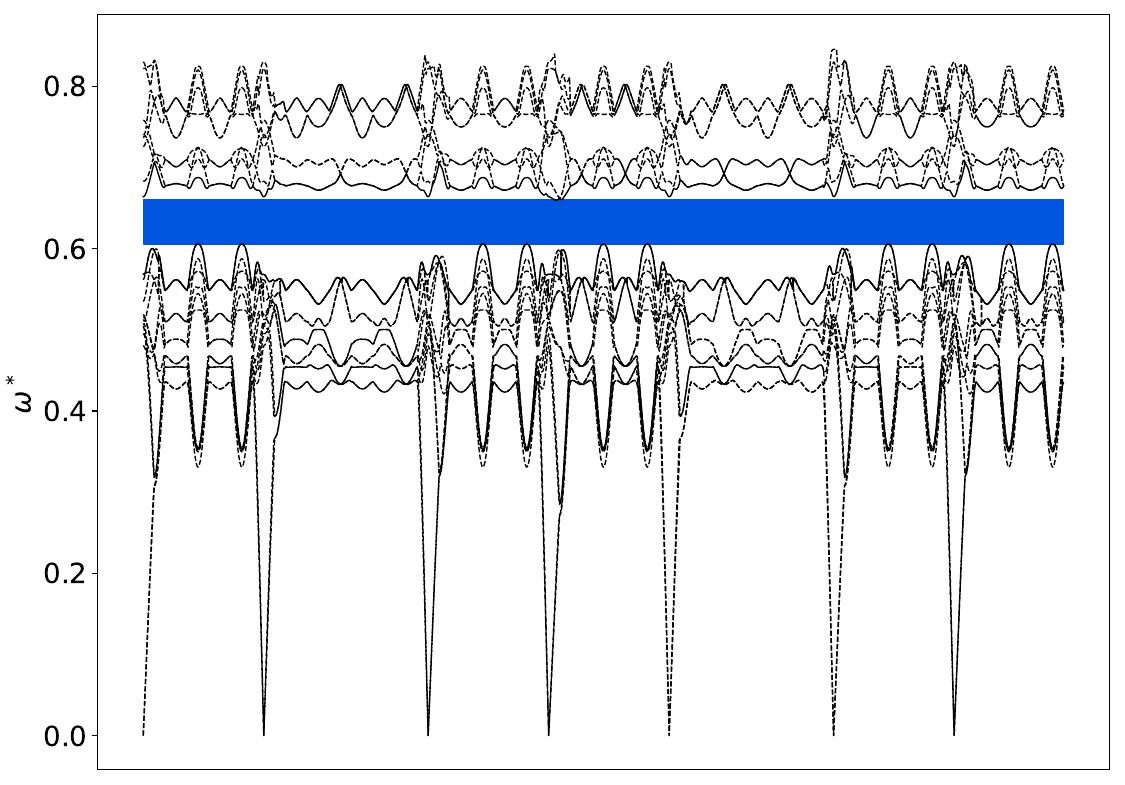

Band Structure across first Brillouin Zone.

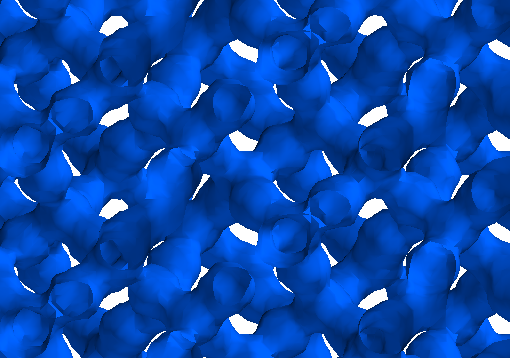

View along \(a_1\).
