tP68-ZnH2C7NO6 (Inverse)

tP68–ZnH₂C₇NO₆ (Inverse)

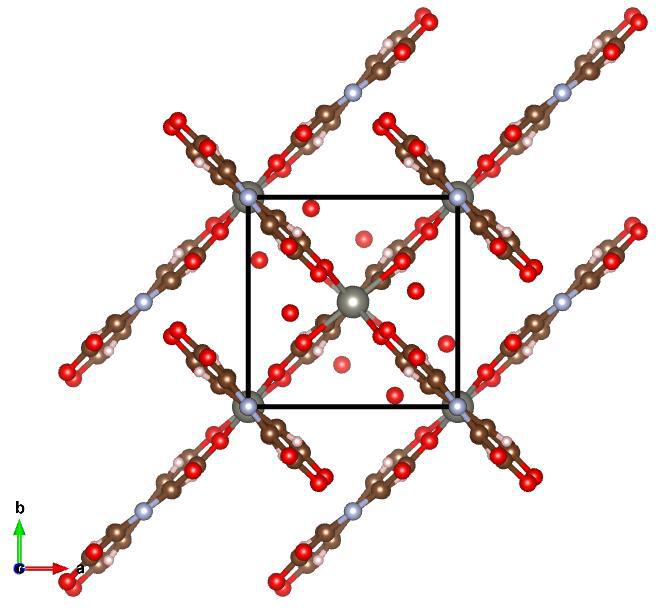

Image of tP68–ZnH₂C₇NO₆ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= 2.83790517~\hat{z}\\\end{split}\]

Space Group: 94

Point Group of Structure: \(422\)

Structure DOI: https://doi.org/10.1021/ja060946u

Source: Crystallographic Open Database #4110802

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 10-11

Below is the band structure and isosurface of tP68–ZnH₂C₇NO₆ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.24\) and filling fraction \(\phi = 0.268\).

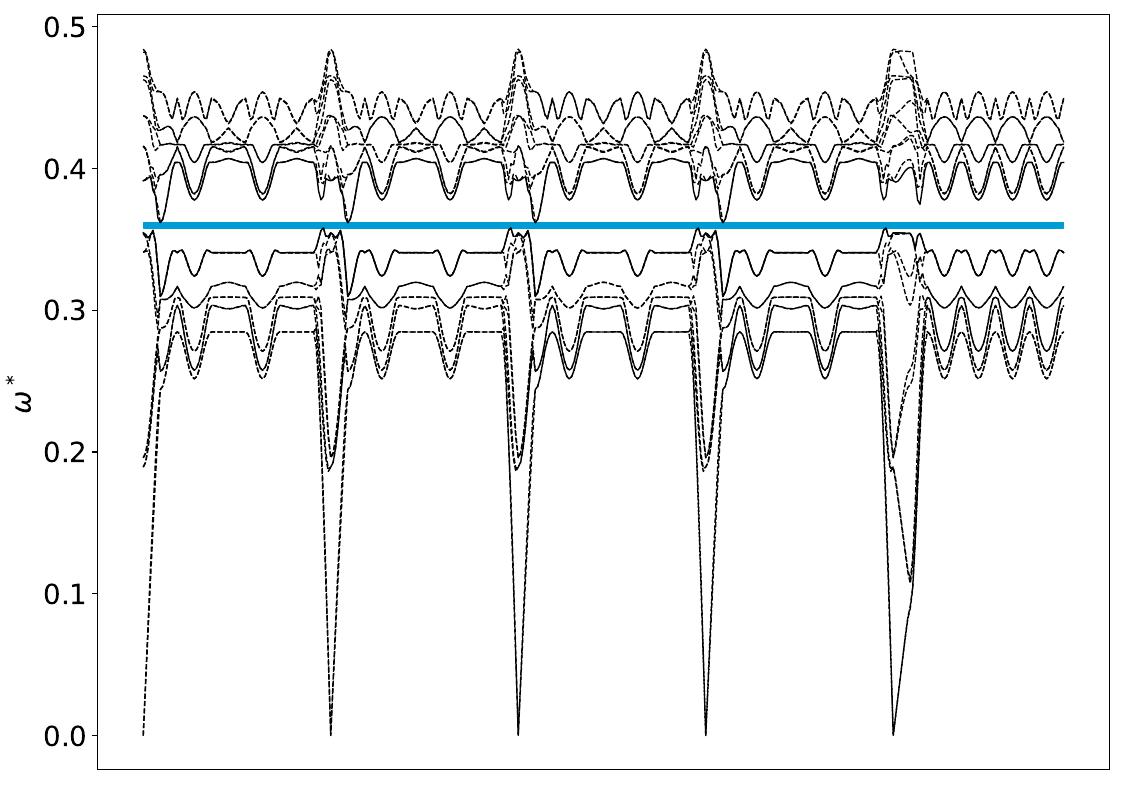

Band Structure across first Brillouin Zone.

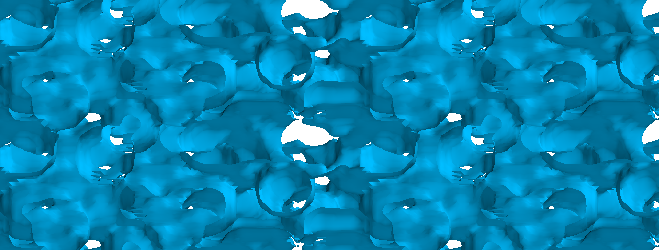

View along \(a_1\).
