tP8-Cs (Inverse)

tP8–Cs (Inverse)

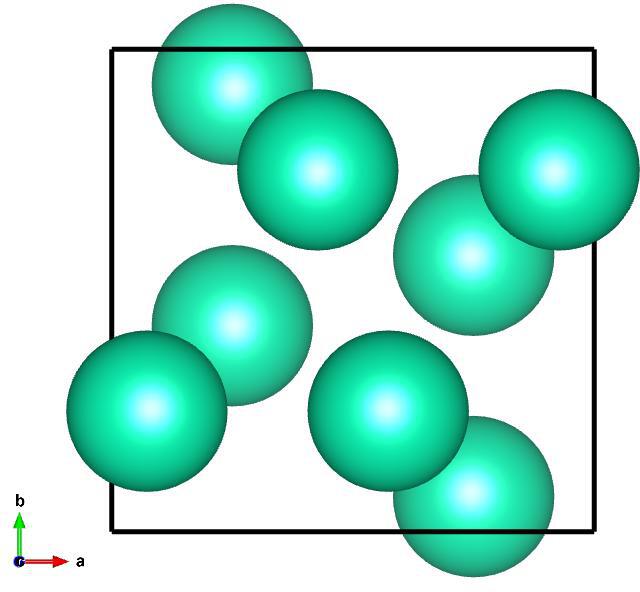

Image of tP8–Cs (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= 0.8648939162~\hat{z}\\\end{split}\]

Space Group: 135

Point Group of Structure: \(4/mmm\)

Structure DOI: https://doi.org/10.17188/1281797

Source: Inorganic Crystallographic Database #57192

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

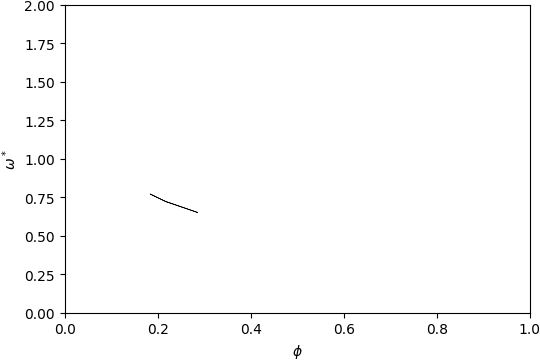

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

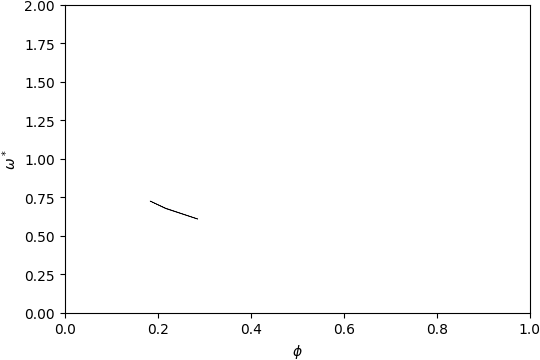

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

Below is the band structure and isosurface of tP8–Cs (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.275\) and filling fraction \(\phi = 0.217\).

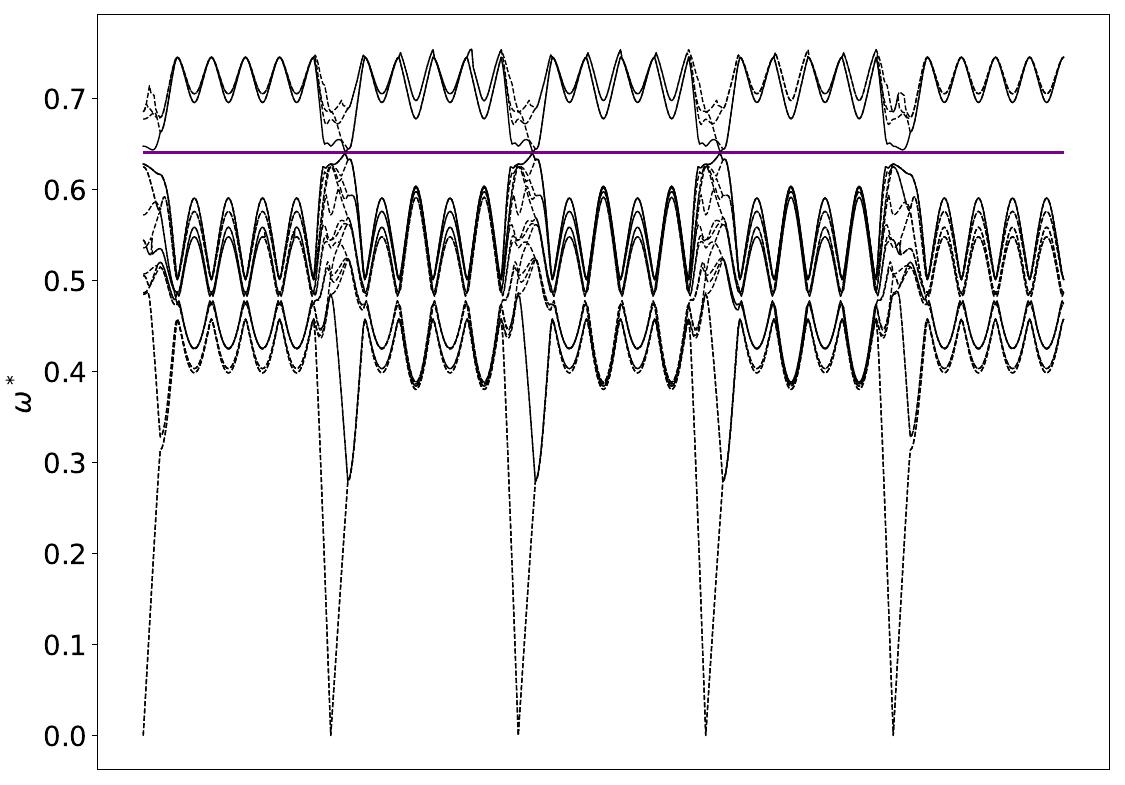

Band Structure across first Brillouin Zone.

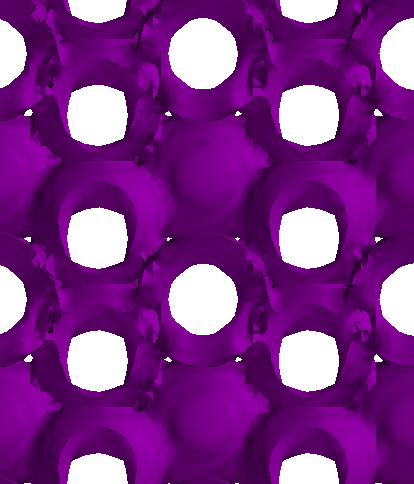

View along \(a_1\).
