cF208-Na3CoC2ClO6 (Inverse)

cF208–Na₃CoC₂ClO₆ (Inverse)

Image of cF208–Na₃CoC₂ClO₆ (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 1/\sqrt{2}~\hat{y} + 1/\sqrt{2}~\hat{z}\\ a_2 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{z}\\ a_3 &= 1/\sqrt{2}~\hat{x} + 1/\sqrt{2}~\hat{y}\\\end{split}\]

Space Group: 203

Point Group of Structure: \(m\bar{3}\)

Structure DOI: https://doi.org/10.1107/S0108270111043605

Photonics DOI: Gap(s) for space group 203 above band(s) 2 theorized in: https://doi.org/10.1038/nmat979,

Gap(s) above band(s) 14 not previously studied

Source: Crystallographic Open Database #2018287

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

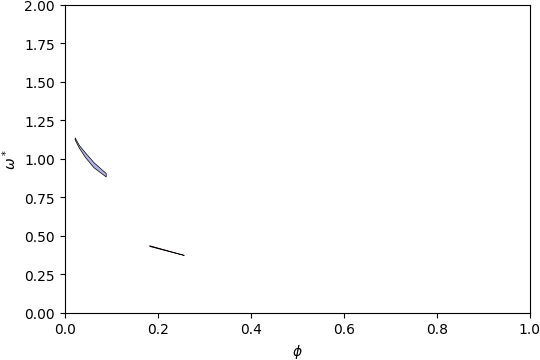

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

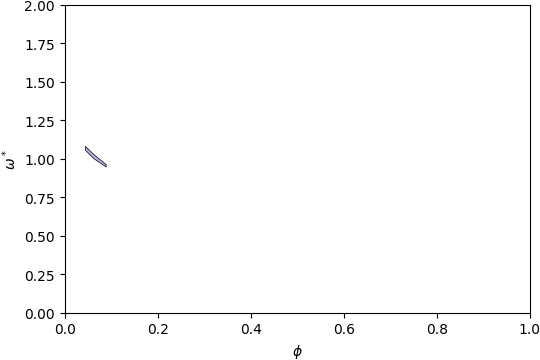

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 10\)

Gap Atlas for \(\varepsilon\) = 10 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 8\)

Gap Atlas for \(\varepsilon\) = 8 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 2-3

Below is the band structure and isosurface of cF208–Na₃CoC₂ClO₆ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.16\) and filling fraction \(\phi = 0.183\).

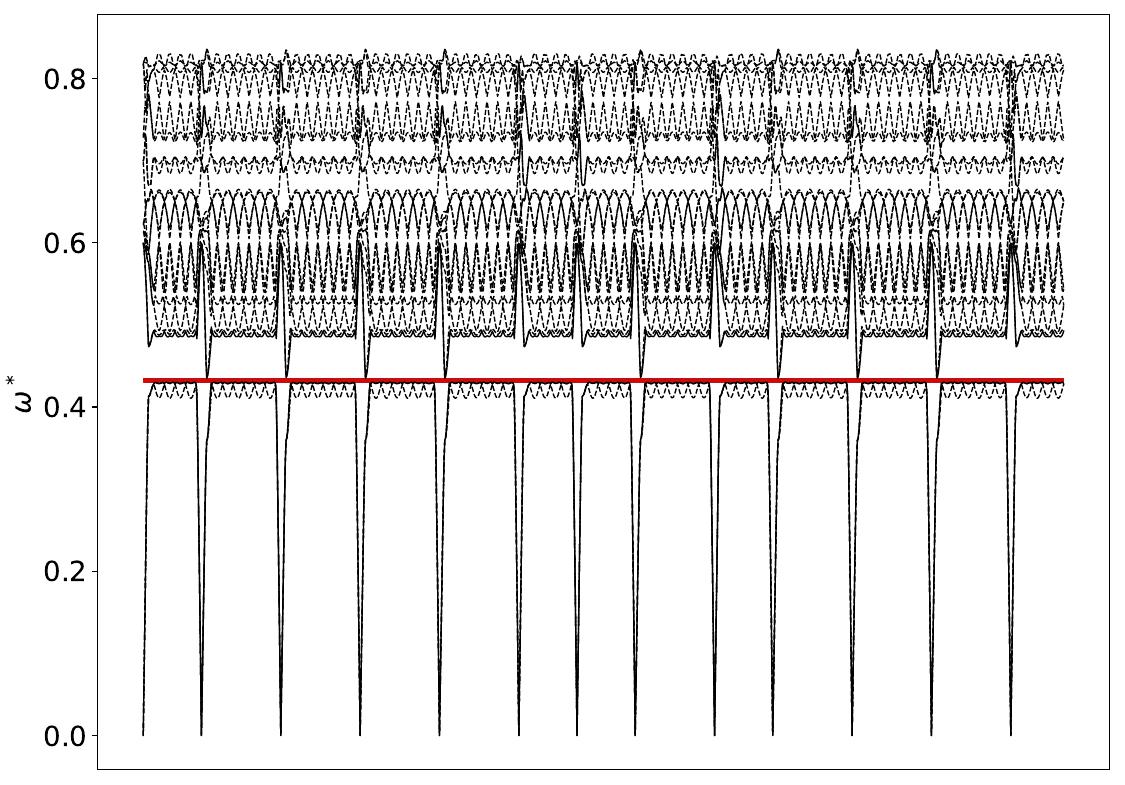

Band Structure across first Brillouin Zone.

View along \(a_1\).

Gap between Bands 14-15

Below is the band structure and isosurface of cF208–Na₃CoC₂ClO₆ (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.19\) and filling fraction \(\phi = 0.063\).

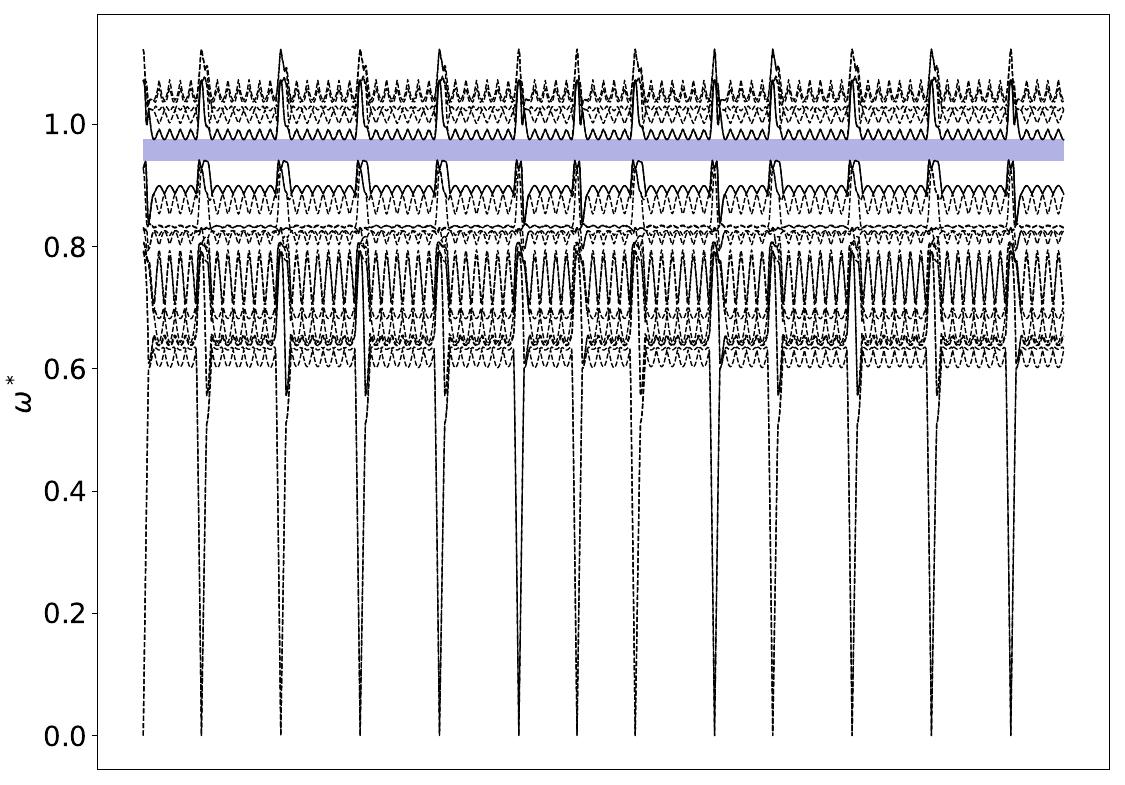

Band Structure across first Brillouin Zone.

View along \(a_1\).
