cP138-Cd6Se7O (Direct)

cP138–Cd₆Se₇O (Direct)

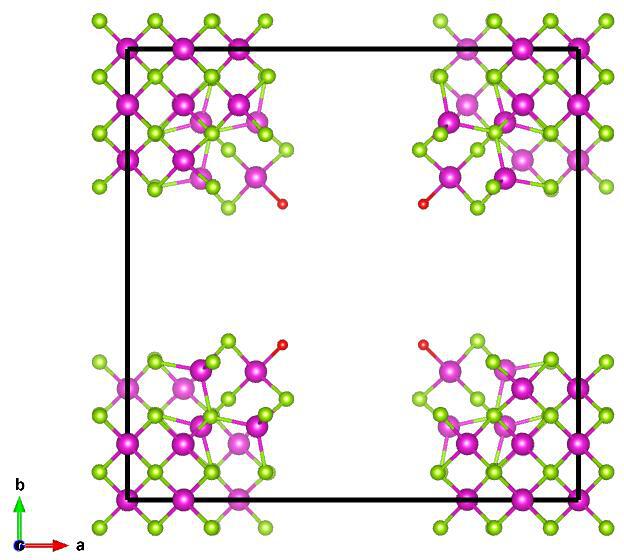

Image of cP138–Cd₆Se₇O (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= ~\hat{y}\\ a_3 &= ~\hat{z}\\\end{split}\]

Space Group: 215

Point Group of Structure: \(\bar{43}m\)

Structure DOI: https://doi.org/10.1021/jacs.6b10490

Source: Crystallographic Open Database #4125830

MPB Epsilon Input File: Download

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 16-17

Below is the band structure and isosurface of cP138–Cd₆Se₇O (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.06\) and filling fraction \(\phi = 0.122\).

Band Structure across first Brillouin Zone.

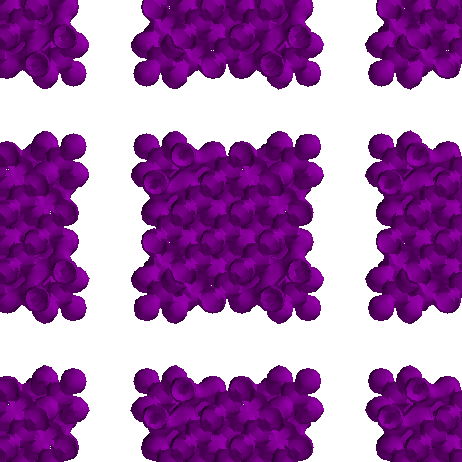

View along \(a_1\).
