hP3-Se (Inverse)

hP3–Se (Inverse)

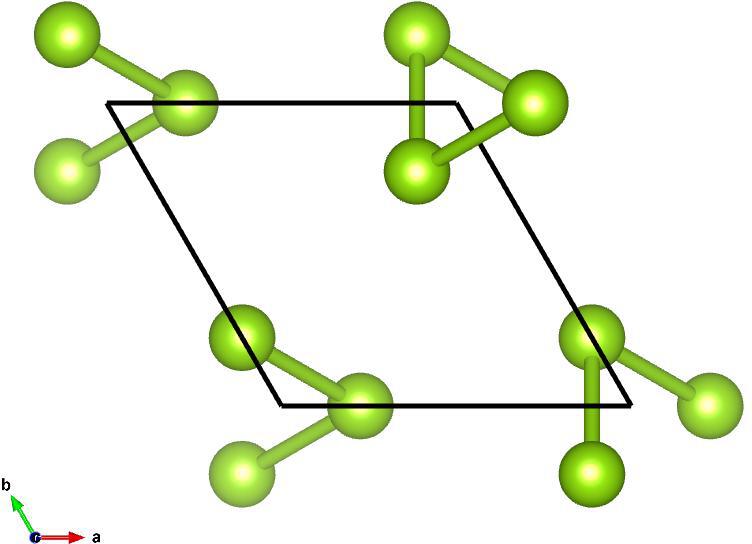

Image of hP3–Se (Inverse), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= ~\hat{x}\\ a_2 &= -1/2~\hat{x} + \sqrt{3}/\sqrt{4}~\hat{y}\\ a_3 &= 1.1350732941~\hat{z}\\\end{split}\]

Space Group: 152

Point Group of Structure: \(32\)

Structure DOI: https://doi.org/10.1103/PhysRevB.16.4404

Source: Inorganic Crystallographic Database #40018

MPB Epsilon Input File: Download

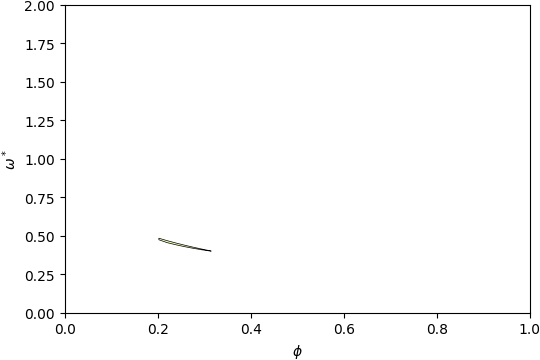

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

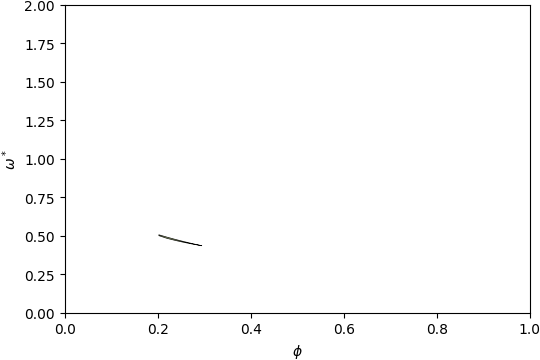

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap Atlas for \(\varepsilon = 12\)

Gap Atlas for \(\varepsilon\) = 12 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 6-7

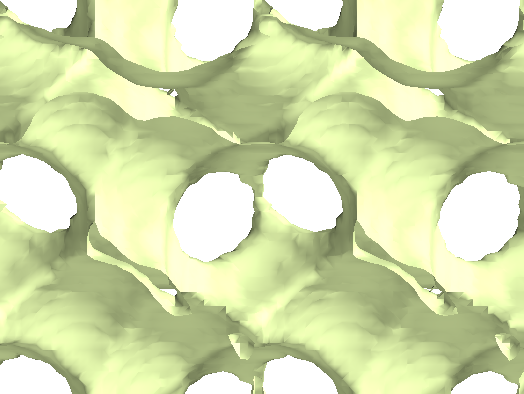

Below is the band structure and isosurface of hP3–Se (Inverse) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.42\) and filling fraction \(\phi = 0.22\).

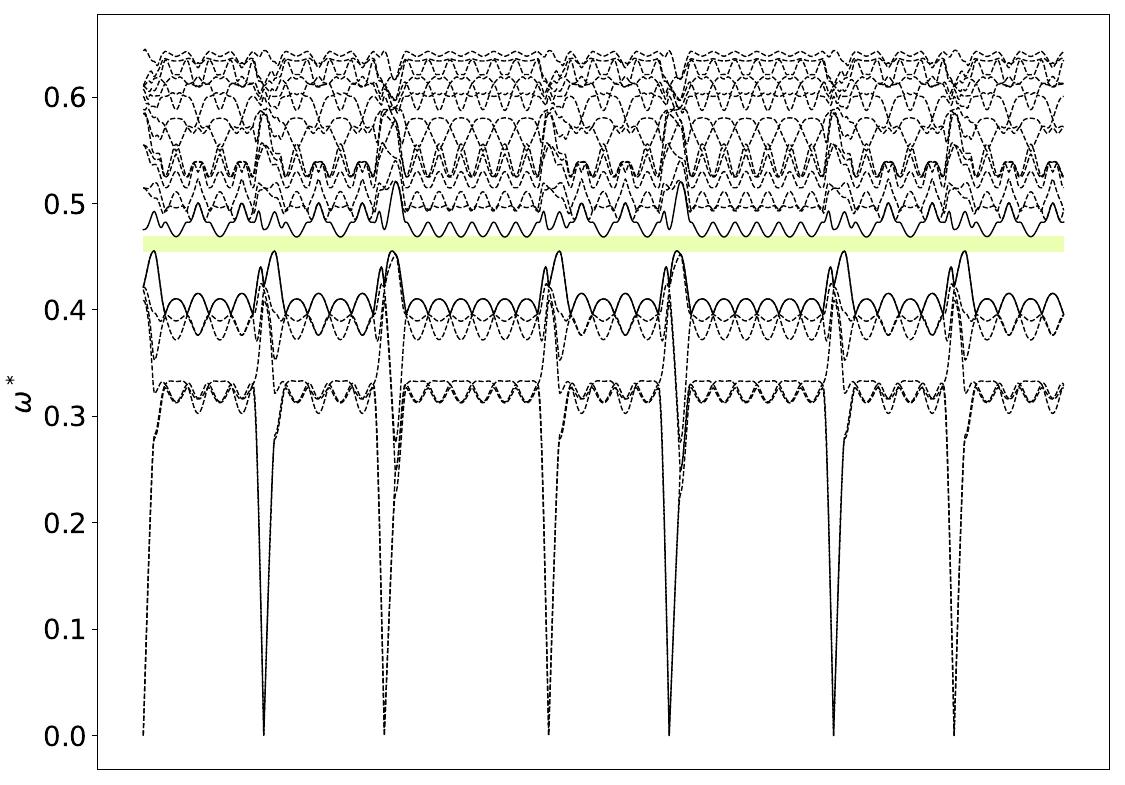

Band Structure across first Brillouin Zone.

View along \(a_1\).
