oC4-U (Direct)

oC4–U (Direct)

Image of oC4–U (Direct), generated by Vesta

Lattice Vectors:

\[\begin{split}a_1 &= 0.4373921439~\hat{x} - 0.8992708782~\hat{y}\\ a_2 &= 0.4373921439~\hat{x} + 0.8992708782~\hat{y}\\ a_3 &= 1.5166396147~\hat{z}\\\end{split}\]

Space Group: 63

Point Group of Structure: \(mmm\)

Structure DOI: https://doi.org/10.1021/ja01291a035

Source: Crystallographic Open Database #4124712

MPB Epsilon Input File: Download

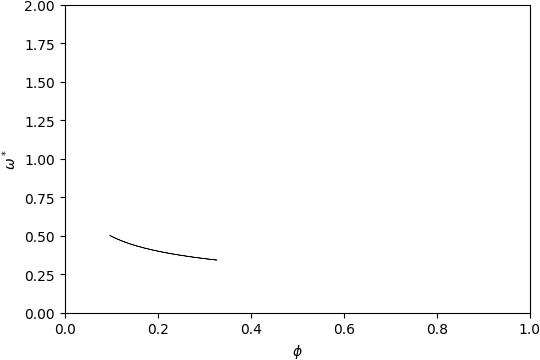

Gap Atlas for \(\varepsilon = 16\)

Gap Atlas for \(\varepsilon\) = 16 across filling fraction \(\phi\) and frequency \(\omega\).

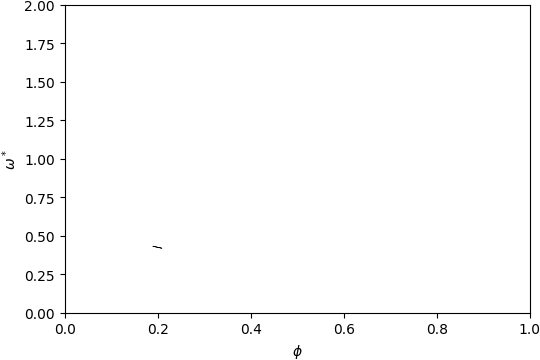

Gap Atlas for \(\varepsilon = 14\)

Gap Atlas for \(\varepsilon\) = 14 across filling fraction \(\phi\) and frequency \(\omega\).

Gap between Bands 4-5

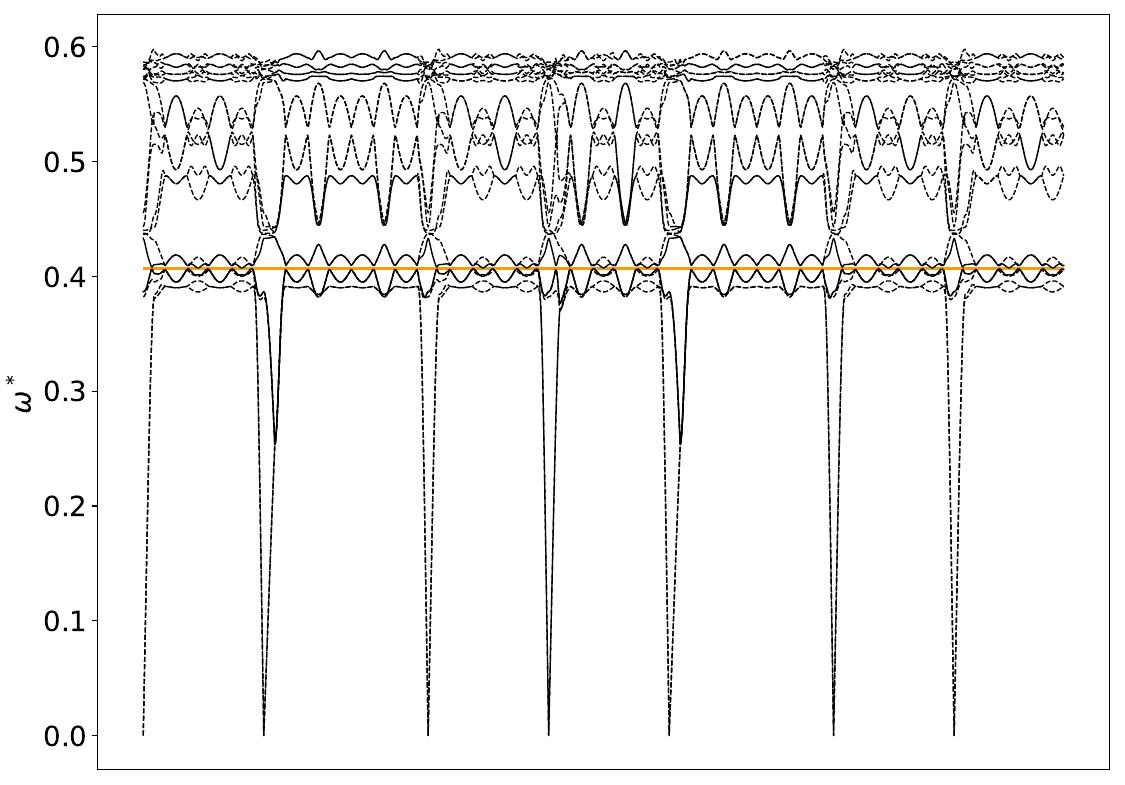

Below is the band structure and isosurface of oC4–U (Direct) at dielectric contrast \(\varepsilon = 16\), radius \(r = 0.3\) and filling fraction \(\phi = 0.138\).

Band Structure across first Brillouin Zone.

View along \(a_1\).
